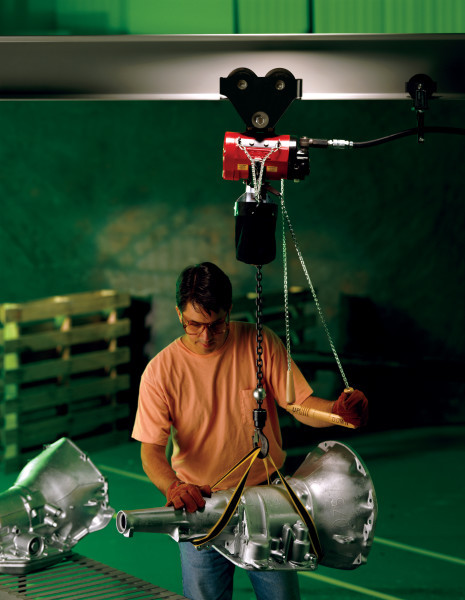

Ingersoll Rand 7756E-3HA10-C6S ARO Series Air Chain Hoist | 1/2 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | 2 Motor Pendent Control

Designed for dependable overhead lifting in manufacturing facilities, maintenance departments, assembly operations, and industrial workstations, the Ingersoll Rand 7756E-3HA10-C6S ARO Series Air Chain Hoist delivers a 1,100 lb (0.50 Metric Ton) lifting capacity with a 10 ft lift and 6 ft control drop. Powered by compressed air, this pneumatic chain hoist features a 2 Motor Pendent Control, providing independent operation of the hoist and, where applicable, the powered trolley. It is engineered for continuous-duty material handling applications requiring smooth operation and precise load positioning.

The proven 7756E Series incorporates a planetary gear transmission for efficient power transfer and a self-adjusting, spring-applied, air-released disc brake that securely holds suspended loads whenever air pressure is interrupted. Equipped with a durable steel snap hook and rugged modular construction, this hoist delivers reliable long-term performance while simplifying routine maintenance in demanding industrial environments.

Type: Air Chain Hoist | Series: 7756E Series | Model: 7756E-3HA10-C6S | SKU: 7756E-3HA10-C6S | Capacity: 1,100 lb (0.50 Metric Ton) | Lift: 10 ft | Control Drop: 6 ft | Control Type: 2 Motor Pendent Control | Bottom Hook: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 41 ft/min (12.5 m/min) | No-Load Lift Speed: 72 ft/min (22 m/min) | Rated Lowering Speed: 112 ft/min (34.1 m/min) | No-Load Lowering Speed: 60 ft/min (18.3 m/min) | Hook Mount Headroom: 17 in (431.8 mm) | Trolley Mount Headroom: 16.9 in (429.3 mm) | Chain Size: 0.25 x 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Net Weight (10 ft Lift): 41 lb (18.6 kg) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT | Sound Level: 85 dBA

Features:

• 1,100 lb (0.50 metric ton) lifting capacity for handling machinery, tooling, fixtures, and industrial components.
• 2 Motor Pendent Control provides independent operation of hoist lifting functions and powered trolley travel where applicable.
• Steel snap hook provides a secure attachment point for overhead lifting applications.
• 100% duty cycle supports continuous industrial lifting operations.
• Planetary gear transmission delivers efficient power transfer and dependable lifting performance.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads whenever air pressure is interrupted.
• Operates on 70–100 PSI (5–7 bar) compressed air systems.
• Compact modular construction simplifies servicing and minimizes maintenance downtime.

Made in USA:

Applications:

• Manufacturing facilities utilizing powered monorail or bridge crane systems.
• Assembly operations requiring simultaneous hoist and trolley control.
• Maintenance departments servicing industrial machinery and production equipment.
• Material handling in fabrication shops and machine shops.
• Industrial lifting applications requiring powered load positioning.

FAQs:

• Q: What is the lifting capacity of the 7756E-3HA10-C6S?
  A: This model is rated to lift 1,100 lb (0.50 metric ton).
• Q: What does 2 Motor Pendent Control mean?
  A: This configuration includes a Pendent designed to operate both the hoist and a powered trolley where applicable, allowing convenient control of lifting and trolley travel from one station.
• Q: What operating air pressure is required?
  A: The manufacturer specifies an operating pressure range of 70 to 100 PSI (5 to 7 bar).
• Q: How much compressed air does this hoist consume?
  A: Air consumption at rated load is 70 CFM (1.98 m³/min).
• Q: What air connection is required?
  A: This hoist uses a 1/2-inch NPT air inlet connection.

 Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog

Need more feet of chain or a longer Pendent hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
