Ingersoll Rand 7756E-2DA10-C6U ARO Series Air Chain Hoist | 1/2 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

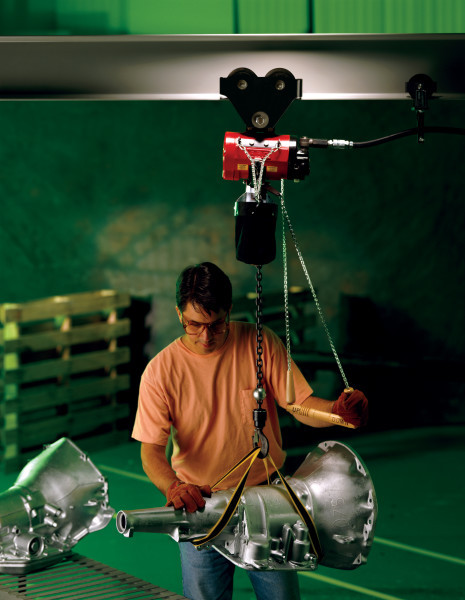

Designed for reliable overhead lifting in manufacturing facilities, maintenance departments, assembly operations, and industrial workstations, the Ingersoll Rand 7756E-2DA10-C6U ARO Series Air Chain Hoist delivers a 1,100 lb (0.50 Metric Ton) lifting capacity with a 10 ft lift and 6 ft Pendent drop. Powered by compressed air, this pneumatic chain hoist provides dependable lifting performance without requiring electrical power, making it well suited for continuous-duty material handling applications where smooth operation and precise load control are essential.

This configuration features Pendent control for responsive operation and a steel snap hook for secure load attachment. The proven 7756E Series incorporates a planetary gear transmission for efficient power transfer and a self-adjusting, spring-applied, air-released disc brake that securely holds suspended loads whenever air pressure is interrupted. Its rugged modular construction simplifies maintenance while providing dependable long-term performance in demanding industrial environments.

Type: Air Chain Hoist | Series: 7756E Series | Model: 7756E-2DA10-C6U | SKU: 7756E-2DA10-C6U | Capacity: 1,100 lb (0.50 Metric Ton) | Lift: 10 ft | Pendent Drop: 6 ft | Control: Pendent Control | Bottom Hook: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 41 ft/min (12.5 m/min) | No-Load Lift Speed: 72 ft/min (22 m/min) | Rated Lowering Speed: 112 ft/min (34.1 m/min) | No-Load Lowering Speed: 60 ft/min (18.3 m/min) | Hook Mount Headroom: 17 in (431.8 mm) | Trolley Mount Headroom: 16.9 in (429.3 mm) | Chain Size: 0.25 x 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT | Sound Level: 85 dBA

Features:

• 1,100 lb (0.50 metric ton) lifting capacity for handling machinery, tooling, fixtures, and industrial components.
• Pendent control provides smooth and accurate lifting and lowering for precise load positioning.
• 100% duty cycle supports continuous industrial lifting operations.
• Planetary gear transmission delivers efficient power transfer and dependable lifting performance.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads whenever air pressure is interrupted.

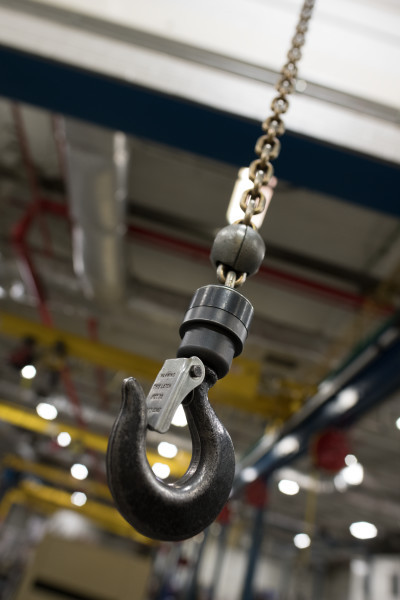

• Steel snap hook provides a durable and secure attachment point for overhead lifting applications.
• Operates on 70–100 PSI (5–7 bar) compressed air systems.
• Compact modular construction simplifies servicing and minimizes maintenance downtime.

Made in USA:

Applications:

• Manufacturing facilities performing repetitive overhead lifting operations.
• Assembly stations requiring dependable pneumatic lifting equipment.
• Maintenance departments servicing industrial machinery and production equipment.
• Material handling in fabrication shops and machine shops.
• General industrial lifting applications utilizing compressed-air systems.

FAQs:

• Q: What is the lifting capacity of the 7756E-2DA10-C6U?
  A: This model is rated to lift 1,100 lb (0.50 metric ton).
• Q: What type of control does this hoist use?
  A: This configuration is equipped with a Pendent control for precise lifting and lowering operations.
• Q: What operating air pressure is required?
  A: The manufacturer specifies an operating pressure range of 70 to 100 PSI (5 to 7 bar).
• Q: How much compressed air does this hoist consume?
  A: Air consumption at rated load is 70 CFM (1.98 m³/min).
• Q: What air connection is required?
  A: This hoist uses a 1/2-inch NPT air inlet connection.
