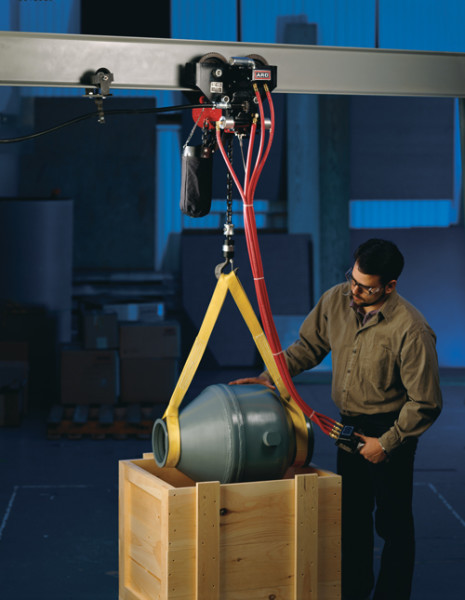

Ingersoll Rand 7756E-2C20-C16S ARO Series Air Chain Hoist | 1/2 Ton Capacity | 20 ft Lift | 16 ft Drop | Steel Snap Hook | Pendent Control

Designed for dependable overhead material handling in manufacturing facilities, maintenance departments, assembly operations, and industrial workstations, the Ingersoll Rand 7756E-2C20-C16S ARO Series Air Chain Hoist delivers a 1,100 lb (0.50 Metric Ton) lifting capacity with a 20 ft lift and 16 ft Pendent drop. Powered by compressed air, this pneumatic chain hoist provides smooth, reliable lifting performance without requiring electrical power, making it ideal for repetitive lifting applications where continuous-duty operation and precise load positioning are essential.

The 7756E Series features a compact planetary gear transmission for efficient power transfer and a self-adjusting, spring-applied, air-released disc brake that securely holds suspended loads whenever air pressure is interrupted. Equipped with a steel snap hook and Pendent control, this configuration delivers responsive lifting and lowering while its modular construction simplifies maintenance and helps reduce downtime in demanding industrial environments.

Type: Air Chain Hoist | Series: 7756E Series | Model: 7756E-2C20-C16S | SKU: 7756E-2C20-C16S | Capacity: 1,100 lb (0.50 Metric Ton) | Lift: 20 ft | Pendent Drop: 16 ft | Control: Pendent Control | Bottom Hook: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 41 ft/min (12.5 m/min) | No-Load Lift Speed: 72 ft/min (22 m/min) | Rated Lowering Speed: 112 ft/min (34.1 m/min) | No-Load Lowering Speed: 60 ft/min (18.3 m/min) | Hook Mount Headroom: 17 in (431.8 mm) | Trolley Mount Headroom: 16.9 in (429.3 mm) | Chain Size: 0.25 x 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT | Sound Level: 85 dBA

Features:

• 1,100 lb (0.50 metric ton) lifting capacity for handling machinery, tooling, fixtures, and production components.
• 20 ft lift provides extended vertical travel for elevated lifting applications.
• Pendent control enables smooth and precise lifting and lowering for accurate load positioning.
• 100% duty cycle supports continuous industrial lifting operations.
• Planetary gear transmission delivers efficient power transfer and dependable lifting performance.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads whenever air pressure is interrupted.
• Steel snap hook provides a durable and secure attachment point for overhead lifting applications.
• Operates on 70–100 PSI (5–7 bar) compressed air systems with a 1/2 in NPT air inlet.

Made in USA:

Applications:

• Manufacturing facilities requiring dependable overhead lifting of production equipment and components.
• Assembly operations involving repetitive material handling tasks.
• Maintenance departments servicing industrial machinery and process equipment.
• Material handling in fabrication shops and machine shops.
• General industrial lifting applications utilizing compressed-air systems.

FAQs:

• Q: What is the lifting capacity of the 7756E-2C20-C16S?
  A: This model is rated for 1,100 lb (0.50 metric ton).
• Q: What lifting height does this configuration provide?
  A: This hoist is supplied with a 20 ft lift and a 16 ft Pendent drop for convenient operator control in higher mounting applications.
• Q: What operating air pressure is required?
  A: The manufacturer specifies an operating pressure range of 70 to 100 PSI (5 to 7 bar).
• Q: How much compressed air does this hoist require?
  A: Air consumption at rated load is 70 CFM (1.98 m³/min).
• Q: What air connection is required?
  A: This hoist uses a 1/2-inch NPT air inlet connection.
