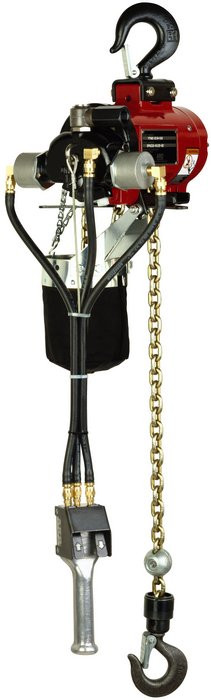

Ingersoll Rand 7718E-2C25-K6U ARO Series Air Chain Hoist | 1/4 Ton Capacity | 25 ft Lift | 6 ft Drop | Bullard Hook, Manual Close | Pendent Control

Designed for dependable light-duty material handling in manufacturing facilities, maintenance departments, assembly workstations, and industrial production environments, the Ingersoll Rand 7718E-2C25-K6U ARO Series Air Chain Hoist delivers a 550 lb (250 kg / 0.25 Metric Ton) lifting capacity with a 25 ft lift and 6 ft Pendent drop. Powered by compressed air, this compact pneumatic hoist provides fast lifting speeds, smooth operation, and precise load control, making it an excellent solution for repetitive lifting applications where electrical power is not preferred.

Part of the Ingersoll Rand ARO 7700 Series, this configuration features a Bullard hook with manual close latch for secure load attachment and a Pendent control for responsive lifting and lowering. Its lightweight yet durable construction simplifies installation while the pneumatic motor delivers reliable performance for lifting tools, fixtures, components, and other industrial loads in continuous-duty environments. The 25 ft lift provides additional vertical travel for applications requiring greater lifting height.

Type: Air Chain Hoist | Series: ARO 7700 Series | Model: 7718E-2C25-K6U | Capacity: 550 lb (250 kg / 0.25 Metric Ton) | Lift: 25 ft | Pendent Drop: 6 ft | Control: Pendent Control | Bottom Hook: Bullard Hook, Manual Close | Chain Falls: 1 | Rated Lift Speed: 72 ft/min (21.9 m/min) | No-Load Lift Speed: 128 ft/min (39.0 m/min) | Rated Lowering Speed: 180 ft/min (54.9 m/min) | No-Load Lowering Speed: 159 ft/min (48.5 m/min) | Hook Mount Headroom: 17 in (431.8 mm) | Trolley Mount Headroom: 16.9 in (429.3 mm) | Chain Size: 0.25 × 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Net Weight (25 ft Lift): 52 lb (23.6 kg)

Features:

• 550 lb (250 kg / 0.25 Metric Ton) lifting capacity for handling industrial components, tooling, fixtures, and equipment.
• Pendent control provides smooth and responsive lifting and lowering for accurate load positioning.
• Bullard hook with manual close latch offers secure attachment for specialized overhead lifting applications.
• 25 ft lift accommodates applications requiring additional vertical lifting travel.
• High rated lifting speed of 72 ft/min (21.9 m/min) improves productivity during repetitive lifting operations.
• Compact pneumatic motor delivers dependable lifting performance using compressed air.
• Single-fall load chain configuration provides efficient lifting performance for light-duty industrial service.
• Designed for manufacturing, maintenance, assembly, and general industrial material handling applications.

Made in USA:

Applications:

• Assembly workstations handling production components and subassemblies.
• Manufacturing facilities requiring extended overhead lifting capability.
• Maintenance departments servicing elevated machinery and equipment.
• Machine shops positioning tooling, fixtures, and fabricated components.
• General industrial material handling utilizing compressed-air lifting equipment.

FAQs:

• Q: What is the lifting capacity of the 7718E-2C25-K6U?
  A: This model is rated for 550 lb (250 kg / 0.25 Metric Ton).
• Q: What type of hook is supplied with this hoist?
  A: This configuration is equipped with a Bullard hook featuring a manual close latch for secure load engagement.
• Q: What are the lift and Pendent drop lengths?
  A: This model is supplied with a 25 ft lift and a 6 ft Pendent drop, making it suitable for applications requiring additional lifting height while maintaining a standard operator control length.
• Q: What type of control does this hoist use?
  A: This model features a Pendent control that allows accurate raising and lowering of suspended loads.

 Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog

Need more feet of chain or a longer Pendent hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
