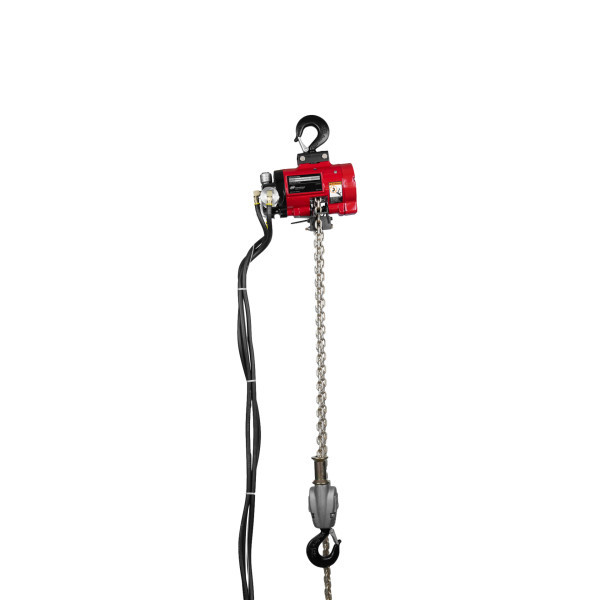

Ingersoll Rand 7718E-2C10-C6S ARO Series Air Chain Hoist | 1/4 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

Designed for dependable light-duty material handling in manufacturing facilities, maintenance departments, assembly workstations, and industrial production environments, the Ingersoll Rand 7718E-2C10-C6S ARO Series Air Chain Hoist delivers a 550 lb (250 kg / 0.25 Metric Ton) lifting capacity with a 10 ft lift and 6 ft Pendent drop. Powered by compressed air, this compact pneumatic hoist provides fast lifting speeds, smooth operation, and precise load control, making it an excellent solution for repetitive lifting applications where electrical power is not preferred.

Part of the Ingersoll Rand ARO 7700 Series, this configuration features a Pendent control for responsive lifting and lowering and a steel snap hook for secure load attachment. Its lightweight yet durable construction simplifies installation while the pneumatic motor delivers reliable performance for lifting tools, fixtures, components, and other industrial loads in continuous-duty environments.

Type: Air Chain Hoist | Series: ARO 7700 Series | Model: 7718E-2C10-C6S | Capacity: 550 lb (250 kg / 0.25 Metric Ton) | Lift: 10 ft | Pendent Drop: 6 ft | Control: Pendent Control | Bottom Hook: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 72 ft/min (21.9 m/min) | No-Load Lift Speed: 128 ft/min (39.0 m/min) | Rated Lowering Speed: 180 ft/min (54.9 m/min) | No-Load Lowering Speed: 159 ft/min (48.5 m/min) | Hook Mount Headroom: 17 in (431.8 mm) | Trolley Mount Headroom: 16.9 in (429.3 mm) | Chain Size: 0.25 × 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Net Weight (10 ft Lift): 43 lb (19.5 kg)

Features:

• 550 lb (250 kg / 0.25 Metric Ton) lifting capacity for handling industrial components, tooling, fixtures, and equipment.

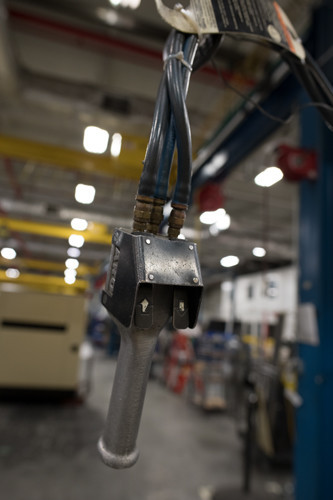

• Pendent control provides smooth and responsive lifting and lowering for accurate load positioning.
• High rated lifting speed of 72 ft/min (21.9 m/min) improves productivity during repetitive lifting operations.
• Compact pneumatic motor delivers dependable lifting performance using compressed air.

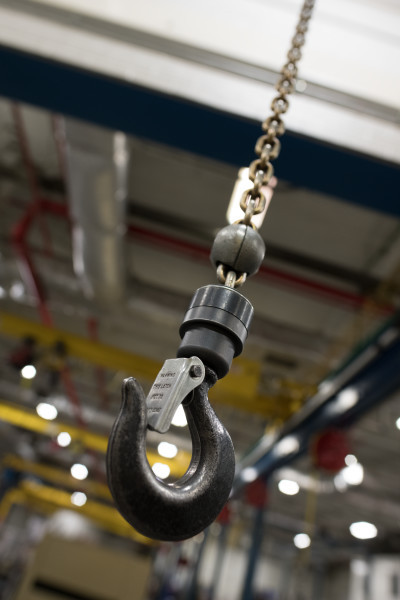

• Steel snap hook provides a secure attachment point for overhead lifting applications.
• Single-fall load chain configuration provides efficient lifting performance for light-duty industrial service.
• Compact, lightweight construction simplifies installation in areas with limited overhead space.
• Designed for manufacturing, maintenance, assembly, and general industrial material handling applications.

Made in USA:

Applications:

• Assembly workstations handling production components and subassemblies.
• Manufacturing facilities requiring rapid overhead lifting and positioning.
• Maintenance departments lifting motors, pumps, valves, and replacement parts.
• Machine shops positioning tooling, fixtures, and fabricated components.
• General industrial material handling utilizing compressed-air lifting equipment.

FAQs:

• Q: What is the lifting capacity of the 7718E-2C10-C6S?
  A: This model is rated for 550 lb (250 kg / 0.25 Metric Ton).
• Q: What type of control does this hoist use?
  A: This configuration features a Pendent control that allows the operator to accurately raise and lower loads for precise positioning.
• Q: What is the lifting height of this configuration?
  A: The hoist is supplied with a 10 ft lift and a 6 ft Pendent drop.
• Q: Where is this hoist commonly used?
  A: It is commonly used in manufacturing plants, maintenance departments, assembly operations, machine shops, and other industrial environments requiring compact pneumatic lifting equipment.

 Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog

Need more feet of chain or a longer Pendent hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
