Ingersoll Rand 7536-2-B Non-Reversible Milling Motor | 0.25 HP | 4,500 RPM | 1.05 (ft-lbs) Stall Torque | Single Gear Reduction

Built for high-speed milling, material handling, and industrial drive applications, the Ingersoll Rand 7536-2-B Milling Air Motor delivers 0.25 HP with a 4,500 RPM free speed to provide dependable pneumatic power for continuous-duty operation. As an air-powered motor (using compressed air instead of electricity), it can operate continuously without overheating and safely stall under load without damaging internal components. The higher free speed makes it well suited for applications requiring rapid rotary motion, responsive performance, and reliable operation throughout demanding production cycles.

Designed for OEM machinery and industrial automation, the 7536-2-B provides smooth, controllable performance in applications where compact size and dependable pneumatic power are essential. Motor speed can be adjusted by regulating the compressed air supply, allowing operators to match performance to changing process requirements. Its pneumatic design also makes it suitable for environments where electric motors may be less desirable due to moisture, dust, or continuous-duty operating conditions.

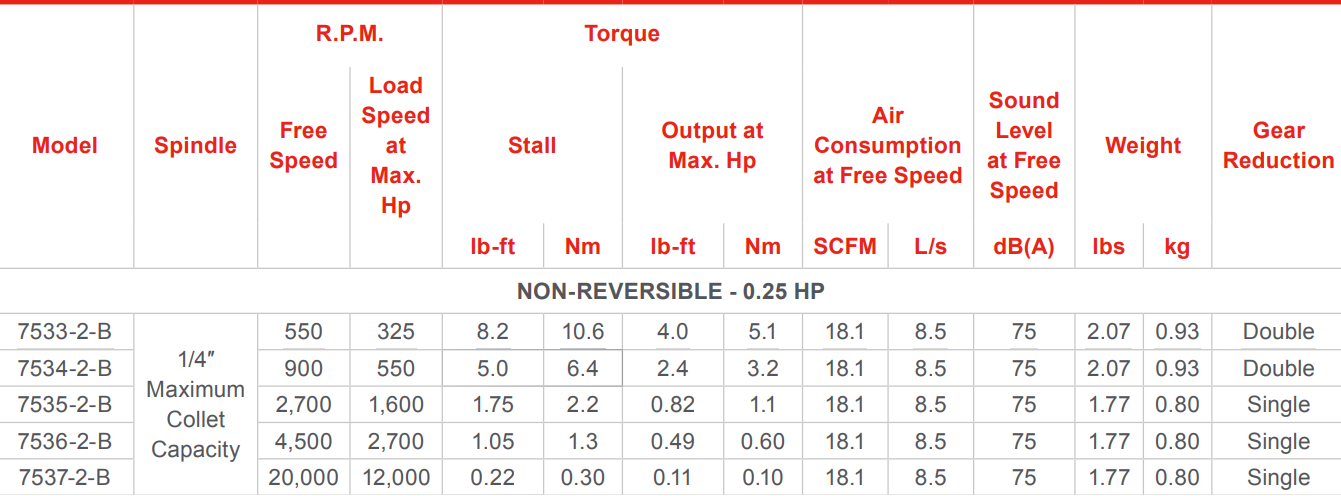

Type: Milling Air Motor | Model: 7536-2-B | Power: 0.25 HP | Free Speed: 4,500 RPM | Power Source: Pneumatic

Features:

• 0.25 HP pneumatic motor delivers dependable rotary power for continuous industrial operation.
• 4,500 RPM free speed provides high-speed performance for milling and automated production equipment.
• Pneumatic motor design allows the unit to stall under load without damaging internal components.
• Motor speed can be adjusted by regulating the compressed air supply to suit varying process requirements.
• Compact construction simplifies integration into OEM machinery and custom automation systems.
• Suitable for continuous-duty applications where electric motors may be prone to overheating.
• Operates without electrical sparking, making pneumatic power appropriate for environments where compressed air is preferred.
• Designed for dependable service in manufacturing, automation, conveying, and industrial processing equipment.

Made in USA:

Applications:

• Driving high-speed milling heads and production machinery.
• Powering conveyors, indexing systems, and automated manufacturing equipment.
• Operating industrial processing equipment requiring consistent high-speed rotary motion.
• Integrating into OEM machinery where compact pneumatic power is required.
• Manufacturing facilities operating in dusty, humid, or electrically sensitive environments where pneumatic motors are preferred.

FAQs:

• Q: What advantages does the 7536-2-B offer over an electric motor?
  A: As a pneumatic motor, it can operate continuously without overheating, safely stall under load without internal damage, and provide variable speed by adjusting the compressed air supply.
• Q: What applications is the 7536-2-B commonly used for?
  A: It is suitable for milling equipment, automated production machinery, conveyors, indexing systems, material handling equipment, and other OEM industrial applications requiring dependable pneumatic rotary power.
• Q: Is 4,500 RPM suitable for high-speed industrial applications?
  A: Yes. The 4,500 RPM free speed is intended for applications that require faster rotary motion while maintaining reliable pneumatic performance.
• Q: Can this air motor be operated continuously?
  A: Yes. When supplied with clean, dry, properly lubricated compressed air, the motor is designed for continuous-duty industrial operation.

Looking for more information about Ingersoll Rand Milling Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Milling Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
