Built for drilling in confined work areas where conventional drills cannot reach, the Ingersoll Rand 6LK2A41 industrial angle drill delivers 0.51 HP, a controlled 2,000 RPM free speed, and up to 64.6 in-lbs of maximum torque for reliable drilling performance across manufacturing, fabrication, and maintenance applications. Its 90° chuck configuration allows operators to access tight spaces inside machinery, equipment frames, and structural assemblies, while the lever-start throttle provides responsive speed control for improved drilling accuracy and confidence.
Designed for continuous industrial operation, the 6LK2A41 combines a durable pneumatic motor with a compact right-angle head that improves accessibility without compromising power. The balanced combination of horsepower, drilling speed, and torque makes this model well suited for repetitive production work as well as maintenance tasks where precision drilling in restricted areas is essential.
Type: Industrial Angle Drill | Power: 0.51 HP | Configuration: 90° Chuck | Free Speed: 2,000 RPM | Maximum Torque: 64.6 in-lbs | Throttle: Lever-Start
Features:
- 90° angle chuck provides excellent access for drilling in confined spaces and around machinery.
- 0.51 HP pneumatic motor delivers dependable power for continuous industrial drilling applications.
- 2,000 RPM free speed provides an effective balance of drilling speed and torque.
- 64.6 in-lbs of maximum torque supports controlled drilling through a variety of production and maintenance tasks.
- Lever-start throttle offers responsive speed control for improved hole positioning and drilling accuracy.
- Compact angle-head configuration improves maneuverability around fixtures, structural members, and equipment.
- Pneumatic design supports continuous-duty manufacturing, fabrication, and industrial maintenance environments.

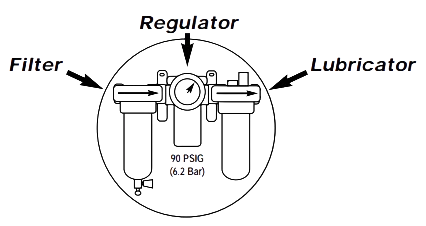

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Made in USA:
Applications:
- Drilling holes inside machinery, equipment frames, and production fixtures where clearance is limited.
- Maintenance and repair operations requiring dependable drilling performance in restricted workspaces.
- Production assembly lines performing repetitive drilling operations.
- Metal fabrication involving structural components, brackets, and fabricated assemblies.
- Industrial MRO, plant maintenance, and equipment installation where right-angle access improves productivity.
FAQs:
- Q: What advantage does the 90° chuck provide?
A: The right-angle configuration allows the drill to reach confined areas that are inaccessible with straight or pistol-grip drills, making it especially useful for machinery maintenance, fabrication, and production equipment. - Q: Why is the 2,000 RPM free speed beneficial?
A: The 2,000 RPM operating speed provides a practical balance between drilling speed and torque, making the drill suitable for a wide variety of industrial drilling applications. - Q: What is the purpose of the lever-start throttle?
A: The lever-start throttle gives operators responsive control over drilling speed, helping improve hole placement accuracy while maintaining better control during operation. - Q: Is this drill intended for continuous industrial service?
A: Yes. According to the manufacturer's catalog, the 6LK2A41 is an industrial pneumatic angle drill designed for manufacturing, fabrication, and maintenance environments.
| SKU | Maximum Torque | Free Speed | Weight | Length | Chuck Capacity / Spindle Thread | Head Length | Side to Center | Air Consumption |
|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in (mm) | in (mm) | cfm (L/min) | |
| Lever Start (90° Chuck) | ||||||||
| 5LL2A41 | 60.2 (6.8) | 1,500 | 2.6 (1.2) | 9.4" (239) | 1/4" (6) | 3.0" (75) | 0.67" (15) | 15 (420) |
| 5LN2A43 | 120.4 (13.6) | 700 | 3.5 (1.6) | 10.2" (259) | 3/8" (10) | 3.6" (91) | 0.67" (15) | 15 (420) |
| Lever Start (90° Small Angle Head) | ||||||||
| 5LK1A1 | 31 (3.5) | 3,000 | 2.19 (1.0) | 9.8" (249) | 1/4"-28 * | 1.1" (28) | 0.3" (8) | 15 (420) |
| 5LL1A1 | 40 (4.5) | 2,200 | 2.19 (1.0) | 9.8" (249) | 1/4"-28 * | 1.1" (28) | 0.3" (8) | 15 (420) |
| Lever Start (45° Small Angle Head) | ||||||||
| 5LK1B1 | 31 (3.5) | 3,000 | 2.13 (1.0) | 9.75" (248) | 1/4"-28 * | – | 0.3" (8) | 15 (420) |
| Lever Start (90° Chuck) | ||||||||
| 6LK2A41 | 64.6 (7.3) | 2,000 | 2.8 (1.3) | 9.5" (241) | 1/4" (6) | 3.0" (75) | 0.5" (14) | 20 (560) |
| 6LL2A42 | 94.7 (10.7) | 1,400 | 2.8 (1.3) | 9.5" (242) | 3/8" (10) | 3.2" (81) | 0.5" (14) | 20 (560) |
| 6LP3A43 | 192.1 (21.7) | 600 | 3.7 (1.7) | 10.6" (270) | 3/8" (10) | 3.9" (99) | 0.7" (18) | 20 (560) |
| 6LR3A44 | 320.4 (36.2) | 400 | 4.0 (1.8) | 10.7" (272) | 1/2" (13) | 4.1" (105) | 0.7" (18) | 20 (560) |
| Lever Start (90° Small Angle Head) | ||||||||
| 6LL1A1 | 64 (7.3) | 2,150 | 2.13 (0.95) | 9.69" (246) | 1/4"-28 * | 1.1" (28) | 0.3" (8) | 20 (560) |
Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Drill
- Max Torque (in-lbs)
- 64.6
- RPM
- 2000
- Length (in.)
- 9.5
- Side to Center (in.)
- 0.5
- Air Consumption (CFM)
- 20
- Angle Head Height (in.)
- 3
- Bit Holder Capacity (in.)
- 1/4
- Sound Level (dbA)
- 74
- Air Inlet
- 1/4" NPT
- Min Hose Size (in.)
- 3/8
