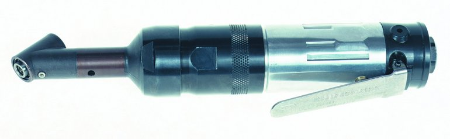

Built for drilling in confined workspaces where a conventional drill cannot reach, the Ingersoll Rand 5LL2A41 industrial angle drill delivers 0.40 HP, a controlled 1,500 RPM free speed, and up to 60.2 in-lbs of maximum torque for dependable hole drilling in production and maintenance environments. Its 90° chuck configuration provides access around obstructions, inside machinery, and between structural components, while the lever-start throttle offers responsive speed control during precision drilling applications.
Designed for continuous industrial use, the 5LL2A41 combines a compact right-angle head with durable pneumatic performance to improve access without sacrificing power. The 90-degree head allows the drill to operate in areas where straight or pistol-grip drills cannot fit, making it well suited for manufacturing, metal fabrication, maintenance, and assembly operations requiring controlled drilling in tight spaces.
Type: Industrial Angle Drill | Power: 0.40 HP | Configuration: 90° Chuck | Free Speed: 1,500 RPM | Maximum Torque: 60.2 in-lbs | Throttle: Lever-Start
Features:
- 90° angle head provides access for drilling in confined and difficult-to-reach locations.
- 0.40 HP pneumatic motor delivers dependable power for industrial drilling applications.
- 1,500 RPM free speed balances drilling performance with controlled operation.
- Lever-start throttle provides responsive control for accurate hole positioning and drilling.
- Compact angle configuration improves accessibility around machinery, structural members, and equipment.
- Pneumatic operation supports continuous-duty industrial applications with consistent performance.
- Suitable for repetitive production and maintenance drilling tasks requiring reliable torque output.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Made in USA:
Applications:
- Drilling holes inside machinery, equipment frames, and other confined industrial spaces.
- Maintenance and repair operations where limited clearance prevents the use of conventional drills.
- Manufacturing and production assembly requiring accurate drilling around obstructions.
- Metal fabrication projects involving structural components, brackets, and fabricated assemblies.
- Plant maintenance, MRO operations, and general industrial drilling applications.
FAQs:
- Q: Why choose a 90° angle drill instead of a standard drill?
A: The 90° head allows drilling in confined spaces where a straight or pistol-grip drill cannot fit, making it valuable for machinery maintenance, fabrication, and assembly work. - Q: What is the advantage of the lever-start throttle?
A: The lever-start mechanism gives the operator responsive speed control, making it easier to start holes accurately and maintain control throughout the drilling process. - Q: Is this drill intended for continuous industrial use?
A: Yes. The 5LL2A41 is an industrial pneumatic drill designed for demanding manufacturing, production, and maintenance environments. - Q: What materials can this drill be used on?
A: Material suitability depends on the drill bit selected and the application. The manufacturer's catalog identifies this as an industrial pneumatic angle drill but does not specify material limitations.
| SKU | Maximum Torque | Free Speed | Weight | Length | Chuck Capacity / Spindle Thread | Head Length | Side to Center | Air Consumption |
|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in (mm) | in (mm) | cfm (L/min) | |
| Lever Start (90° Chuck) | ||||||||
| 5LL2A41 | 60.2 (6.8) | 1,500 | 2.6 (1.2) | 9.4" (239) | 1/4" (6) | 3.0" (75) | 0.67" (15) | 15 (420) |
| 5LN2A43 | 120.4 (13.6) | 700 | 3.5 (1.6) | 10.2" (259) | 3/8" (10) | 3.6" (91) | 0.67" (15) | 15 (420) |
| Lever Start (90° Small Angle Head) | ||||||||
| 5LK1A1 | 31 (3.5) | 3,000 | 2.19 (1.0) | 9.8" (249) | 1/4"-28 * | 1.1" (28) | 0.3" (8) | 15 (420) |
| 5LL1A1 | 40 (4.5) | 2,200 | 2.19 (1.0) | 9.8" (249) | 1/4"-28 * | 1.1" (28) | 0.3" (8) | 15 (420) |
| Lever Start (45° Small Angle Head) | ||||||||
| 5LK1B1 | 31 (3.5) | 3,000 | 2.13 (1.0) | 9.75" (248) | 1/4"-28 * | – | 0.3" (8) | 15 (420) |
| Lever Start (90° Chuck) | ||||||||
| 6LK2A41 | 64.6 (7.3) | 2,000 | 2.8 (1.3) | 9.5" (241) | 1/4" (6) | 3.0" (75) | 0.5" (14) | 20 (560) |
| 6LL2A42 | 94.7 (10.7) | 1,400 | 2.8 (1.3) | 9.5" (242) | 3/8" (10) | 3.2" (81) | 0.5" (14) | 20 (560) |
| 6LP3A43 | 192.1 (21.7) | 600 | 3.7 (1.7) | 10.6" (270) | 3/8" (10) | 3.9" (99) | 0.7" (18) | 20 (560) |
| 6LR3A44 | 320.4 (36.2) | 400 | 4.0 (1.8) | 10.7" (272) | 1/2" (13) | 4.1" (105) | 0.7" (18) | 20 (560) |
| Lever Start (90° Small Angle Head) | ||||||||
| 6LL1A1 | 64 (7.3) | 2,150 | 2.13 (0.95) | 9.69" (246) | 1/4"-28 * | 1.1" (28) | 0.3" (8) | 20 (560) |
Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
