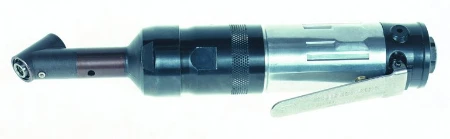

Ingersoll Rand 5LK1 Non-Reversible Inline Pneumatic Drill | 0.40 HP | 3,100 RPM | 30.1 (in-lbs) Max Torque | Lever-Start

Ingersoll Rand 5LK1 Non-Reversible Inline Pneumatic Drill combines a 0.4 HP air motor with a 3,100 RPM free speed for efficient hole drilling in suitable materials. Part of the 5 Series, this compact air drill features a 1/4-inch chuck capacity for compatible drill bits and a 30.1 in-lbs maximum working torque for controlled drilling performance. Its non-reversible inline configuration provides forward-only spindle rotation, making it suitable for production tasks where reverse operation is unnecessary. The lever-start mechanism allows operators to activate the drill directly while maintaining control over the drilling operation.

The 5LK1 features a compact straight-body construction measuring 8.1 inches in overall length and weighing 2.0 lbs with chuck. Its inline arrangement positions the drill spindle along the tool body, making it suitable for direct-access drilling and repetitive workstation operations. A 0.8-inch side-to-center distance provides a useful clearance measurement when working near adjacent components or fixtures. The drill uses a high-quality chuck for secure retention of compatible drill bits and delivers a practical power-to-weight ratio for repeated drilling tasks. With 16 CFM air consumption, a 1/4-inch NPT air inlet, and a manufacturer-listed 74.6 dBA sound level, the 5LK1 provides defined operating specifications for integration into industrial compressed-air systems.

Type: Inline Pneumatic Drill | Model: 5LK1 | Series: 5 Series | Operation: Non-Reversible | Actuation: Lever Start | Rated Power: 0.4 HP | Free Speed: 3,100 RPM | Maximum Working Torque: 30.1 in-lbs | Chuck Capacity: 1/4 in. | Weight with Chuck: 2.0 lbs | Length with Chuck: 8.1 in. | Side-to-Center Distance: 0.8 in. | Air Consumption: 16 CFM | Air Inlet: 1/4 in. NPT | Sound Level: 74.6 dBA

Features:

• 0.4 HP pneumatic motor delivers 3,100 RPM free speed for repetitive drilling operations in suitable workpiece materials.
• 30.1 in-lbs maximum working torque provides rotational force for compatible drilling applications.
• 1/4-inch chuck capacity accommodates suitable drill bits for production hole-making tasks.
• Non-reversible spindle operation provides a straightforward forward-drilling configuration for applications that do not require reverse rotation.
• Inline body arrangement positions the spindle along the tool axis for direct-access drilling operations.
• Lever-start actuation provides convenient control over drill activation during repeated manufacturing tasks.
• Compact 8.1-inch overall length and 2.0 lbs weight with chuck support handling at production workstations.
• High-quality chuck construction provides reliable bit retention, while the 0.8-inch side-to-center distance helps operators assess clearance around fixtures and adjacent components.

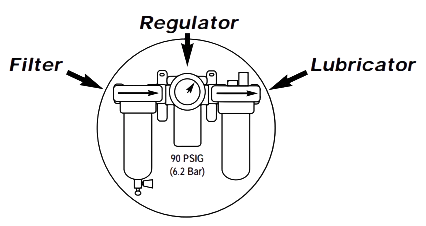

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Made in USA:

Applications:

• Industrial production drilling: Creating holes in suitable components during repetitive manufacturing and assembly operations.
• Metal fabrication workshops: Drilling compatible sheet metal, brackets, and fabricated parts using appropriately selected drill bits.
• Automotive component manufacturing: Performing forward drilling operations on suitable housings, mounting components, and subassemblies.
• Machinery assembly: Drilling holes in equipment components and fixtures during manufacturing or assembly work.
• Industrial maintenance: Performing general-purpose drilling tasks where an inline, forward-only pneumatic drill is appropriate.

FAQs:

• Q: What is the operating speed of the Ingersoll Rand 5LK1 pneumatic drill?
  A: The 5LK1 delivers a free speed of 3,100 RPM with a 0.4 HP pneumatic motor. Its maximum working torque is 30.1 in-lbs.
• Q: What size drill bits can the Ingersoll Rand 5LK1 accommodate?
  A: The drill features a 1/4-inch chuck capacity for compatible drill bits. The appropriate drilling diameter depends on the workpiece material, bit design, and operating conditions.
• Q: Can the 5LK1 operate in reverse?
  A: No. The 5LK1 is a non-reversible pneumatic drill with forward-only spindle rotation. It is intended for drilling tasks that do not require a reversing function.
• Q: What compressed-air supply does the 5LK1 require?
  A: The manufacturer specifies 16 CFM air consumption and a 1/4-inch NPT air inlet. The compressed-air supply should be appropriately sized to maintain the drill's required operating conditions.
• Q: How does the 5LK1 compare with the Ingersoll Rand 5LL1?
  A: Both are 5 Series non-reversible inline drills with 0.4 HP motors and 1/4-inch chuck capacities. The 5LK1 operates at 3,100 RPM with 30.1 in-lbs maximum working torque, while the 5LL1 operates at 2,300 RPM with 39.8 in-lbs maximum working torque. The 5LK1 offers higher rotational speed, whereas the 5LL1 provides greater working torque.
