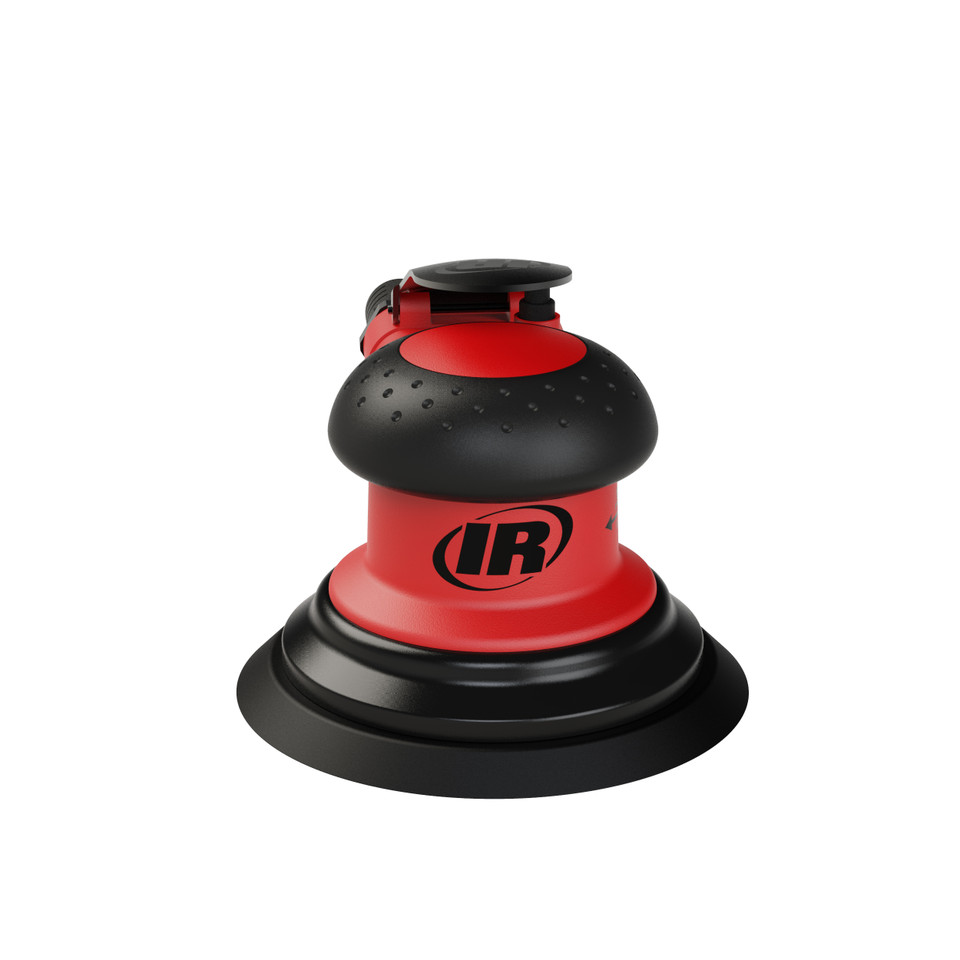

Built for fine sanding on smaller panels, contoured parts, and finish-sensitive repair surfaces, the Ingersoll Rand 5152-5-HL 5100 Series Random Orbital Sander pairs a 5" hook-and-loop pad with a 3/32" orbit for controlled surface preparation. Random orbital sanding action- the pad moves in small overlapping orbits instead of one fixed circular path- helps reduce visible swirl patterns, while the finer 3/32" orbit supports finish prep on wood, composites, fiberglass, sheet metal, and other common shop materials.
The 5152-5-HL runs at 12,000 RPM and uses a 0.3 HP motor to provide practical sanding speed for refinishing, woodworking, fabrication, and maintenance work. Its 5" pad size gives users a more compact sanding footprint than 6" models, helping with curved surfaces, tight panel areas, and detailed repair zones. As part of the 5100 Series, this model is vacuum ready for connection to compatible central or portable vacuum systems, while the supplied title identifies a rear exhaust configuration.
Type: Random Orbital Sander | Series: 5100 Series | Model: 5152-5-HL | Pad Size: 5" | Pad Type: Hook & Loop | Orbit Diameter: 3/32" | Max Free Speed: 12,000 RPM | Rated Power: 0.3 HP / 0.22 kW | Average Air Use: 17.5 CFM | Exhaust: Rear Exhaust | Weight: 1.9 lb / 0.82 kg | Length: 6.54" / 166 mm | Vacuum Ready: Yes
Features:

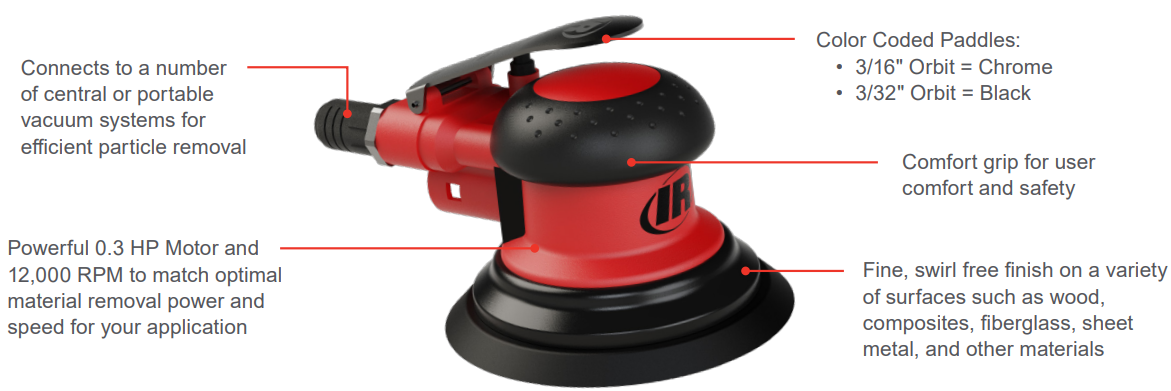

- 5" hook-and-loop pad accepts compatible hook-and-loop abrasive discs for quick abrasive attachment and removal during multi-step sanding work.
- 3/32" orbit supports a fine, swirl-free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
- Powerful 0.3 HP motor and 12,000 RPM free speed match material removal power and sanding speed to the application.
- Vacuum-ready configuration connects to a number of central or portable vacuum systems for efficient particle removal.
- Color-coded paddle identification helps distinguish orbit size within the 5100 Series; 3/32" orbit models use a black paddle.
- Comfort grip supports controlled handling during fine sanding, detail work, and repeated repair passes.
- Compact 6.54" body length helps the tool stay manageable on bench work, vertical panels, curved surfaces, and smaller workpieces.
Applications:
- Autobody and vehicle service: Sanding repaired areas, smoothing primer, feathering edges, and preparing smaller panels before refinishing.
- Woodworking and cabinet shops: Fine sanding on trim, cabinet parts, furniture components, doors, and smaller wood surfaces.
- Composite and fiberglass repair: Preparing molded parts, smoothing fiberglass panels, and refining surfaces before paint or coating.
- Metalworking and fabrication: Light surface cleanup, sheet metal finishing, and preparation of parts before coating or assembly.
- Industrial maintenance and oil and gas support: Repair, refurbishment, and coating-prep tasks where a smaller pad and vacuum-ready operation help manage detailed work.
FAQs:
- Q: What is the difference between the 5152-5-HL and the 5152-5?
A: Both models use a 5" pad diameter, 3/32" orbit, 12,000 RPM free speed, 0.3 HP motor, 17.5 CFM average air use, 1.9 lb listed weight, and 6.54" length. The 5152-5-HL uses a hook-and-loop pad, while the 5152-5 uses a vinyl pad. - Q: When should I choose the 3/32" orbit version?
A: Choose the 3/32" orbit when finish quality is the priority. The smaller sanding motion helps produce a finer scratch pattern for primer prep, refinishing, wood finishing, and surface work where visible swirl marks need to be minimized. - Q: How does the 5" pad size compare with a 6" model?
A: A 5" pad gives the sander a smaller sanding footprint, which can help with tighter areas, curved surfaces, and smaller parts. A 6" pad covers more area per pass on larger flat panels. - Q: Is the Ingersoll Rand 5152-5-HL vacuum ready?
A: Yes. The manufacturer lists all 5100 Series random orbital sander models as vacuum ready, allowing connection to compatible central or portable vacuum systems for efficient particle removal. - Q: What abrasive discs fit this sander?
A: Use compatible 5" hook-and-loop abrasive discs matched to the material and sanding step. Confirm the abrasive backing style, grit, and speed rating before use.
| SKU | Orbit Diameter | MAX Free Speed (RPM) |
Pad* | Pad Diameter in (mm) |
Rated Power hp (kW) |
Avg. Air Use cfm |
Weight lb (kg) |
Length in (mm) |
|---|---|---|---|---|---|---|---|---|
| 5151-6 | 3/16" | 12,000 | Vinyl | 6 (152) | 0.3 (0.22) | 17.5 | 1.8 (0.82) | 6.54 (166) |
| 5151-6-HL | 3/16" | 12,000 | Hook & Loop | 6 (152) | 0.3 (0.22) | 17.5 | 1.8 (0.82) | 6.54 (166) |
| 5152-6 | 3/32" | 12,000 | Vinyl | 6 (152) | 0.3 (0.22) | 17.5 | 1.9 (0.82) | 6.54 (166) |
| 5152-6-HL | 3/32" | 12,000 | Hook & Loop | 6 (152) | 0.3 (0.22) | 17.5 | 1.9 (0.82) | 6.54 (166) |
| 5151-5 | 3/16" | 12,000 | Vinyl | 5 (127) | 0.3 (0.22) | 17.5 | 1.8 (0.82) | 6.54 (166) |
| 5151-5-HL | 3/16" | 12,000 | Hook & Loop | 5 (127) | 0.3 (0.22) | 17.5 | 1.9 (0.82) | 6.54 (166) |
| 5152-5 | 3/32" | 12,000 | Vinyl | 5 (127) | 0.3 (0.22) | 17.5 | 1.9 (0.82) | 6.54 (166) |
| 5152-5-HL | 3/32" | 12,000 | Hook & Loop | 5 (127) | 0.3 (0.22) | 17.5 | 1.9 (0.82) | 6.54 (166) |
