Ingersoll Rand 4800Q Non-Reversible Multi-Vane Air Motor | 3.5 HP | 375 RPM | 129 (ft-lbs) Starting Torque | 173 (ft-lbs) Stall Torque

Ingersoll Rand 4800Q Multi-Vane Non-Reversible Air Motor is designed to provide reliable pneumatic rotary power for industrial applications requiring high torque output, controlled operating speed, and continuous single-direction operation. Part of the 4800 Series, this air motor delivers 3.5 HP with a free speed of 375 RPM. Its multi-vane design converts compressed air into smooth, continuous rotary motion, while the non-reversible configuration provides dependable operation for equipment designed to rotate in one direction.

The 4800Q provides 129 ft-lbs starting torque, offering substantial breakaway force to initiate rotation under heavy loads, and 173 ft-lbs stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. With its combination of horsepower, low operating speed, and high torque capability, this air motor is suited for OEM machinery, industrial processing equipment, material handling systems, and other applications requiring dependable compressed-air rotary power.

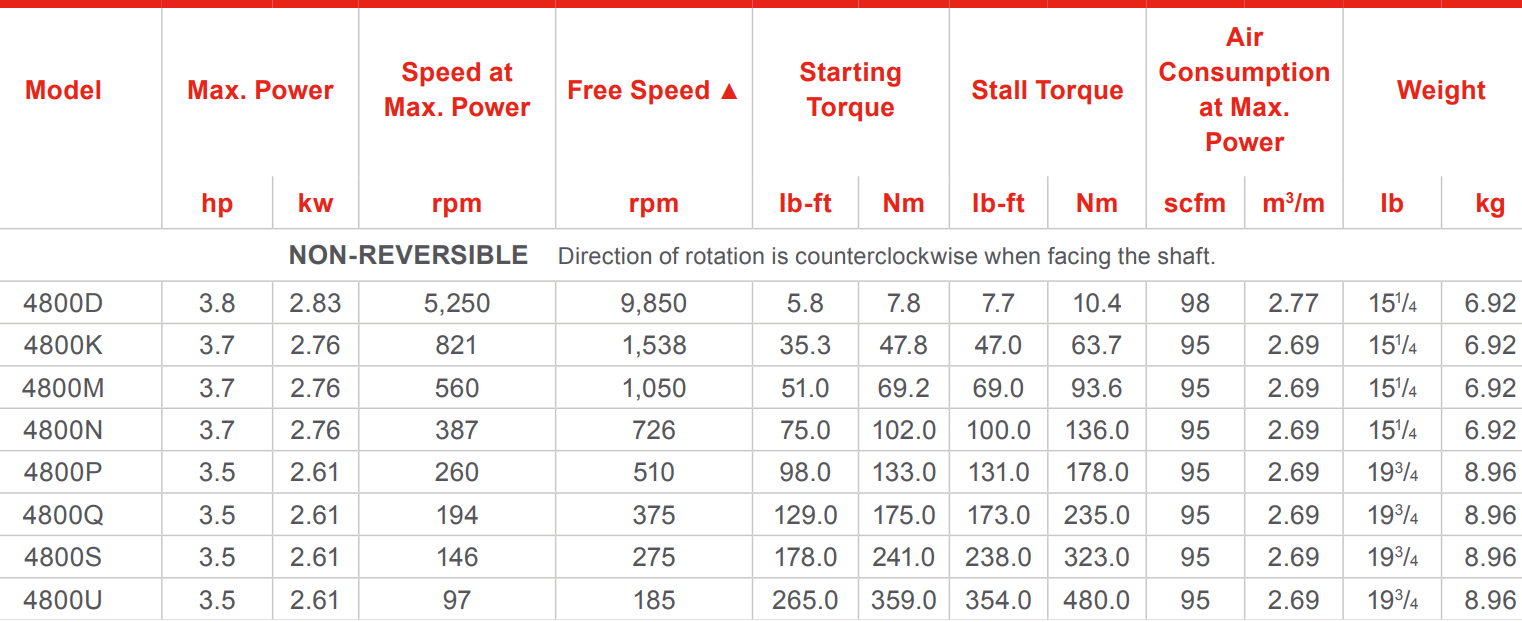

Type: Multi-Vane Air Motor | Series: 4800 Series | Model: 4800Q | Rotation: Non-Reversible | Power: 3.5 HP | Free Speed: 375 RPM | Starting Torque: 129 ft-lbs | Stall Torque: 173 ft-lbs

Features:

• Multi-vane air motor design provides smooth and consistent pneumatic rotary power.
• Non-reversible configuration supports dependable operation in a single rotational direction.
• 3.5 HP output provides substantial pneumatic power for compatible industrial equipment.
• 375 RPM free speed offers controlled rotary operation with exceptional torque capability.
• 129 ft-lbs starting torque provides a manufacturer-published reference for startup torque capability.
• 173 ft-lbs stall torque provides a manufacturer-published reference for maximum torque output under stalled conditions.
• 4800 Series motor design supports OEM integration and replacement applications where specifications match.
• Compressed-air operation provides a practical alternative to electrically powered rotary drives in suitable environments.

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Made in USA:

Applications:

• OEM machinery requiring high-torque pneumatic rotary power.
• Industrial processing and production equipment.
• Material handling systems and compatible drive applications.
• Manufacturing equipment requiring continuous single-direction operation.
• Replacement installations where motor specifications match the existing equipment requirements.

FAQs:

• Q: Is the Ingersoll Rand 4800Q reversible?
  A: No. This model is specified as a non-reversible air motor designed for operation in one rotational direction.
• Q: What is a multi-vane air motor?
  A: A multi-vane air motor uses sliding vanes inside a rotor to convert compressed air into smooth rotary motion.
• Q: What is the rated free speed of the 4800Q?
  A: The manufacturer specifies a free speed of 375 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available to begin rotating a load from rest, while stall torque is the maximum torque produced when the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, speed requirements, rotation direction, shaft dimensions, mounting configuration, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Motor? Click here to view the Catalog.

For help selecting the correct Ingersoll Rand Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
