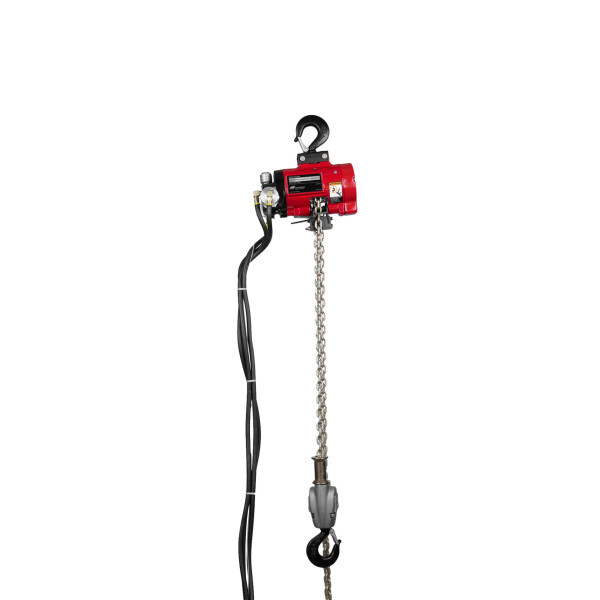

Ingersoll Rand 47680036001 ARO Series Air Chain Hoist | 7756E-2K13-K9S | 1/2 Ton Capacity | 13 ft Lift | 9 ft Drop | Bullard Hook, Manual Close | Pendent Control

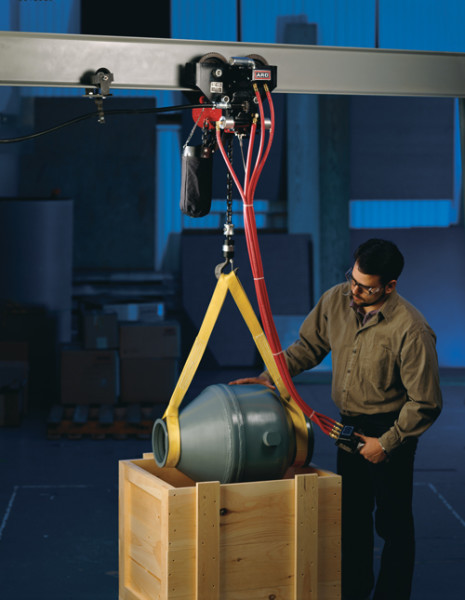

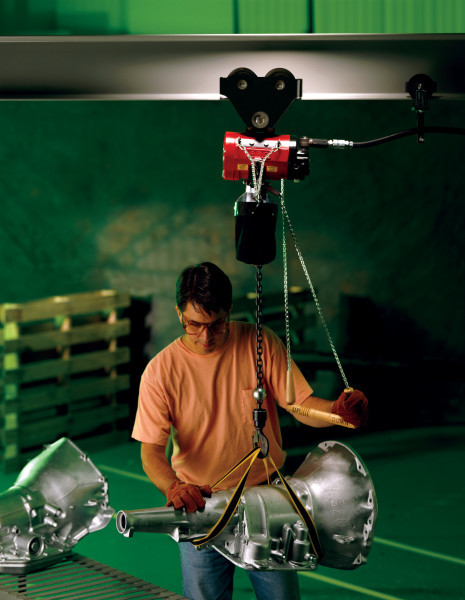

Designed for demanding industrial lifting applications, the Ingersoll Rand 47680036001 ARO Series Air Chain Hoist is configured as Model 7756E-2K13-K9S and delivers a 1,100 lb (0.50 Metric Ton) lifting capacity with a 13 ft lift and 9 ft Pendent drop. Powered by compressed air, this pneumatic chain hoist provides dependable overhead lifting for manufacturing plants, maintenance facilities, fabrication shops, and assembly operations. Its compact design and responsive controls make it ideal for repetitive lifting applications requiring smooth load handling and precise positioning.

The 7756E Series incorporates a planetary gear transmission for efficient power transfer and a self-adjusting, spring-applied, air-released disc brake that securely holds suspended loads whenever air pressure is interrupted. This configuration features a Bullard hook with manual close latch, providing a secure attachment for specialized lifting applications, while the Pendent control allows accurate raising and lowering of loads. The modular design simplifies maintenance and helps minimize downtime in continuous-duty industrial environments.

Type: Air Chain Hoist | Series: 7756E Series | Model: 7756E-2K13-K9S | SKU: 47680036001 | Capacity: 1,100 lb (0.50 Metric Ton) | Lift: 13 ft | Pendent Drop: 9 ft | Control: Pendent Control | Bottom Hook: Bullard Hook, Manual Close | Chain Falls: 1 | Rated Lift Speed: 41 ft/min (12.5 m/min) | No-Load Lift Speed: 72 ft/min (22 m/min) | Rated Lowering Speed: 112 ft/min (34.1 m/min) | No-Load Lowering Speed: 60 ft/min (18.3 m/min) | Hook Mount Headroom: 17 in (431.8 mm) | Trolley Mount Headroom: 16.9 in (429.3 mm) | Chain Size: 0.25 x 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT | Sound Level: 85 dBA

Features:

• 1,100 lb (0.50 metric ton) lifting capacity for handling machinery, tooling, fixtures, and production components.
• 13 ft lift provides additional lifting travel for elevated material handling applications.

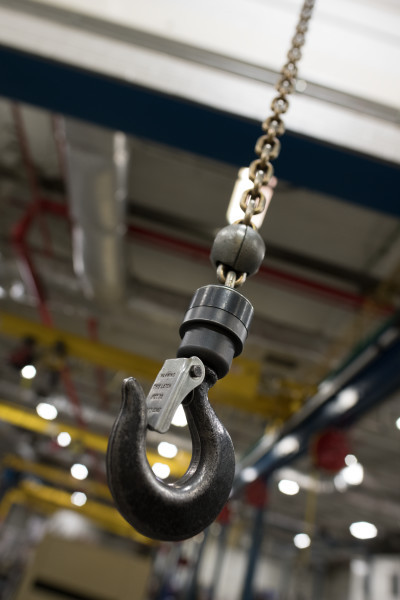

• Bullard hook with manual close latch offers secure attachment for specialized lifting requirements.
• 100% duty cycle supports continuous industrial lifting operations.
• Planetary gear transmission delivers efficient power transfer and smooth lifting performance.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads whenever air pressure is interrupted.
• Pendent control enables accurate lifting and lowering for precise load positioning.
• Operates on 70–100 PSI (5–7 bar) compressed air systems with a 1/2 in NPT air inlet.

Made in USA:

Applications:

• Manufacturing facilities requiring reliable overhead lifting of equipment and components.
• Assembly operations involving repetitive material handling tasks.
• Maintenance departments servicing industrial machinery and production equipment.
• Fabrication shops handling tooling, fixtures, and fabricated assemblies.
• Industrial applications where a Bullard hook with manual close latch is preferred.

FAQs:

• Q: What is the lifting capacity of the Ingersoll Rand 47680036001?
  A: This model is rated for 1,100 lb (0.50 metric ton) of lifting capacity.
• Q: What type of hook is supplied with this hoist?
  A: This configuration includes a Bullard hook with a manual close latch for secure load attachment.
• Q: What operating air pressure is required?
  A: The manufacturer specifies an operating pressure range of 70 to 100 PSI (5 to 7 bar).
• Q: How much compressed air does this hoist consume?
  A: Air consumption at rated load is 70 CFM (1.98 m³/min).
• Q: What air connection is required?
  A: This hoist uses a 1/2-inch NPT air inlet connection.
