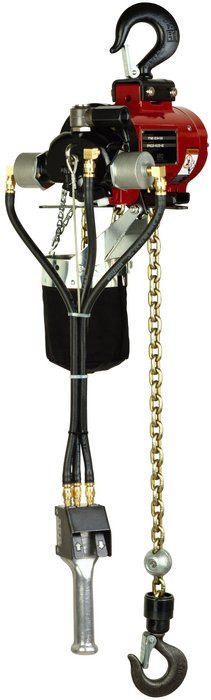

Ingersoll Rand 47607995001 ARO Series Air Chain Hoist | 7756E-2C10-C67 | 1/2 Ton Capacity | 10 ft Lift | 67 ft Drop | Steel Snap Hook | Pendent Control

Built for dependable overhead lifting in manufacturing facilities, maintenance departments, assembly operations, and industrial workstations, the Ingersoll Rand 47607995001 ARO Series Air Chain Hoist is configured as Model 7756E-2C10-C67 and delivers a 1,100 lb (0.50 Metric Ton) lifting capacity with a 10 ft lift and an extended 67 ft Pendent drop. Powered by compressed air, this pneumatic chain hoist provides smooth, reliable lifting performance without requiring electrical power, making it an excellent choice for facilities where the hoist is mounted at significant heights while maintaining convenient operator control from floor level.

The 7756E Series incorporates a planetary gear transmission for efficient power transfer and a self-adjusting, spring-applied, air-released disc brake that securely holds suspended loads whenever the air supply is interrupted. Equipped with a steel snap hook and extended Pendent control, this hoist delivers precise lifting and lowering performance while its compact modular construction simplifies maintenance and minimizes downtime in demanding industrial applications.

Type: Air Chain Hoist | Series: 7756E Series | Model: 7756E-2C10-C67 | SKU: 47607995001 | Capacity: 1,100 lb (0.50 Metric Ton) | Lift: 10 ft | Pendent Drop: 67 ft | Control: Pendent Control | Bottom Hook: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 41 ft/min (12.5 m/min) | No-Load Lift Speed: 72 ft/min (22 m/min) | Rated Lowering Speed: 112 ft/min (34.1 m/min) | No-Load Lowering Speed: 60 ft/min (18.3 m/min) | Hook Mount Headroom: 17 in (431.8 mm) | Trolley Mount Headroom: 16.9 in (429.3 mm) | Chain Size: 0.25 x 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT | Sound Level: 85 dBA

Features:

• 1,100 lb (0.50 metric ton) lifting capacity for handling machinery, tooling, fixtures, and production components.
• Extended 67 ft Pendent drop provides convenient operator control for high-mounted hoist installations.
• 100% duty cycle supports continuous lifting operations in industrial environments.
• Planetary gear transmission delivers smooth lifting performance with efficient power transfer.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads whenever air pressure is interrupted.
• Pendent control enables accurate lifting and lowering for precise load positioning.
• Steel snap hook provides a durable and secure attachment point for overhead lifting applications.
• Operates on 70–100 PSI (5–7 bar) compressed air systems with a 1/2 in NPT air inlet.

Made in USA:

Applications:

• Manufacturing facilities with high overhead crane or monorail systems.
• Assembly operations requiring floor-level control from elevated hoist installations.
• Industrial maintenance departments servicing machinery and production equipment.
• Material handling in fabrication shops and processing facilities.
• General overhead lifting where extended Pendent reach improves operator accessibility.

FAQs:

• Q: What is the lifting capacity of the 47607995001 air chain hoist?
  A: This model is rated for 1,100 lb (0.50 metric ton) of lifting capacity.
• Q: Why does this model have a 67 ft Pendent drop?
  A: The extended 67 ft Pendent allows operators to safely control the hoist from floor level when the hoist is installed at elevated heights.
• Q: What operating air pressure is required?
  A: The manufacturer specifies an operating pressure range of 70 to 100 PSI (5 to 7 bar).
• Q: How much compressed air does this hoist consume?
  A: Air consumption at rated load is 70 CFM (1.98 m³/min).
• Q: What type of air connection is required?
  A: The hoist is equipped with a 1/2-inch NPT air inlet connection.
