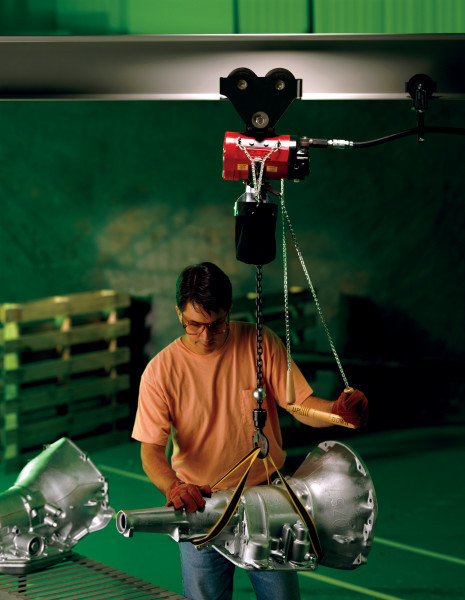

Ingersoll Rand 47604916001 ARO Series Air Chain Hoist | 7776E-2C15-C11S | 1 Ton Capacity | 15 ft Lift | 11 ft Drop | Steel Snap Hook | Pendent Control

Designed for demanding industrial lifting applications, the Ingersoll Rand 47604916001 ARO Series Air Chain Hoist is configured as Model 7776E-2C15-C11S and delivers a 2,200 lb (1 Metric Ton) lifting capacity with a 15 ft lift and 11 ft Pendent drop. Powered by compressed air, this pneumatic chain hoist provides smooth, reliable lifting performance without requiring electrical power, making it ideal for manufacturing, assembly, maintenance, and production environments where continuous-duty operation and precise load positioning are essential.

This configuration features Pendent control and steel snap hooks for secure suspension and load attachment. The ARO 7776E Series incorporates a compact planetary gear transmission, a powerful self-cooling rotary air motor, and a self-adjusting, spring-applied, air-released disc brake that securely holds suspended loads whenever the air supply is interrupted. Its rugged modular construction simplifies maintenance while delivering dependable long-term performance.

Type: Air Chain Hoist | Series: ARO 7700 Series | Model: 7776E-2C15-C11S | SKU: 47604916001 | Capacity: 2,200 lb (1 Metric Ton) | Lift: 15 ft | Pendent Drop: 11 ft | Control: Pendent Control | Top Suspension: Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Rated Lift Speed: 21 ft/min (6.4 m/min) | No-Load Lift Speed: 36 ft/min (11 m/min) | Rated Lowering Speed: 56 ft/min (17.1 m/min) | No-Load Lowering Speed: 30 ft/min (9.1 m/min) | Hook Mount Headroom: 21.7 in (551 mm) | Trolley Mount Headroom: 20.5 in (521 mm) | Chain Size: 0.25 x 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT

Features:

• 2,200 lb (1 metric ton) lifting capacity for demanding industrial material handling applications.
• 15 ft lift provides ample vertical travel for production and maintenance operations.
• 11 ft Pendent drop allows comfortable floor-level operation and precise load positioning.

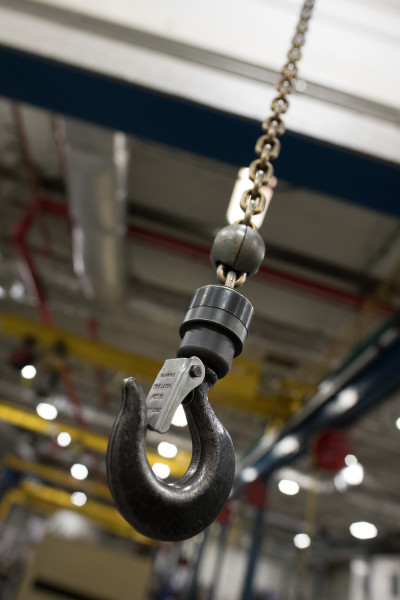

• Steel snap hooks provide secure upper suspension and load attachment.
• 100% duty cycle supports continuous industrial service.
• Planetary gear transmission delivers efficient power transfer and dependable lifting performance.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads whenever air supply is interrupted.
• Operates on 70–100 PSI (5–7 bar) compressed air systems with a 1/2 in NPT air inlet.

Made in USA:

Applications:

• Manufacturing and production facilities.
• Assembly line material handling.
• Industrial maintenance departments.
• Machine shops and fabrication facilities.
• General overhead lifting applications requiring 1-ton capacity.

FAQs:

• Q: What is the lifting capacity of the 47604916001?
  A: This model is rated to lift 2,200 lb (1 metric ton).
• Q: What lift and Pendent drop does this configuration provide?
  A: This hoist is configured with a 15 ft lift and an 11 ft Pendent drop.
• Q: How many chain falls does this hoist use?
  A: This 1-ton model utilizes a two-fall load chain configuration.
• Q: What operating air pressure is required?
  A: The recommended operating pressure is 70–100 PSI (5–7 bar).
• Q: What type of suspension is supplied?
  A: This configuration includes steel snap hooks for both the upper suspension and lower load hook.
