Ingersoll Rand 47532053001 ARO Series Air Chain Hoist | 7770E-1C10-C6S | 1/8 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pull Chain Control

Designed for efficient light-duty material handling in manufacturing facilities, maintenance departments, assembly stations, and production environments, the Ingersoll Rand 47532053001 ARO Series Air Chain Hoist features the 7770E-1C10-C6S configuration with a 275 lb (125 kg / 0.125 metric ton) lifting capacity, 10 ft lift, and 6 ft control drop. Powered by compressed air, this compact pneumatic hoist provides fast lifting speeds, dependable operation, and smooth load handling, making it ideal for repetitive lifting applications where compressed air is readily available.

This ARO 7700 Series configuration is equipped with a pull chain control, allowing operators to raise and lower loads using a simple mechanical control chain. Its compact design and steel snap hook provide easy installation and secure attachment, while the pneumatic motor delivers reliable performance for lifting tools, fixtures, components, and other light industrial loads.

Type: Air Chain Hoist | Series: ARO 7700 Series | Model: 7770E-1C10-C6S | SKU: 47532053001 | Capacity: 275 lb (125 kg / 0.125 Metric Ton) | Lift: 10 ft | Control Drop: 6 ft | Control Type: Pull Chain Control | Bottom Hook: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 110 ft/min (33.5 m/min) | No-Load Lift Speed: 192 ft/min (58.5 m/min) | Rated Lowering Speed: 275 ft/min (83.8 m/min) | No-Load Lowering Speed: 159 ft/min (48.5 m/min) | Hook Mount Headroom: 17 in (431.8 mm) | Trolley Mount Headroom: 16.9 in (429.3 mm) | Chain Size: 0.25 × 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Net Weight (10 ft Lift): 41 lb (18.6 kg)

Features:

• 275 lb (125 kg / 0.125 metric ton) lifting capacity for handling light industrial equipment, tools, fixtures, and components.
• Pull chain control provides straightforward manual operation for raising and lowering loads.
• High rated lifting speed of 110 ft/min helps improve productivity during repetitive material handling tasks.
• Compact pneumatic design delivers dependable performance using compressed air.

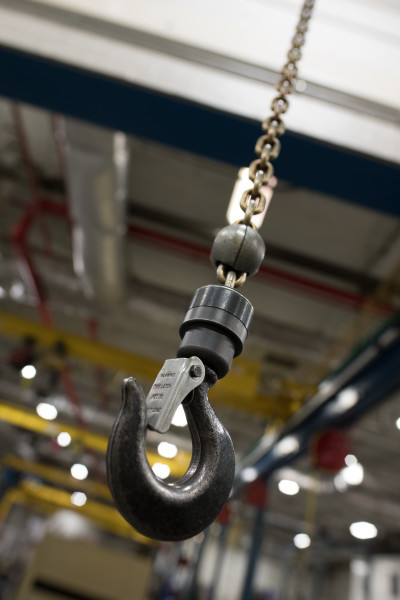

• Steel snap hook provides a secure attachment point for overhead lifting applications.
• Single-fall load chain configuration provides efficient lifting performance for light-duty service.
• Compact, lightweight construction simplifies installation where overhead space is limited.
• Suitable for continuous material handling in manufacturing, maintenance, and assembly environments.

Made in USA:

Applications:

• Assembly workstations handling lightweight parts and subassemblies.
• Maintenance operations lifting motors, pumps, valves, and replacement components.
• Machine shops positioning tooling and fixtures.
• Manufacturing facilities requiring rapid overhead material handling.
• General industrial applications utilizing compressed-air lifting equipment.

FAQs:

• Q: What is the lifting capacity of the 7770E-1C10-C6S?
  A: This model is rated for 275 lb (125 kg / 0.125 metric ton).
• Q: What is pull chain control?
  A: Pull chain control allows the operator to manually actuate the hoist by pulling the control chain to raise or lower the load.
• Q: What is the lifting height of this configuration?
  A: This model is supplied with a 10 ft lift for light-duty overhead lifting applications.
• Q: Where is this hoist commonly used?
  A: It is commonly used in assembly stations, manufacturing plants, maintenance departments, and machine shops requiring compact pneumatic lifting equipment.

 Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
