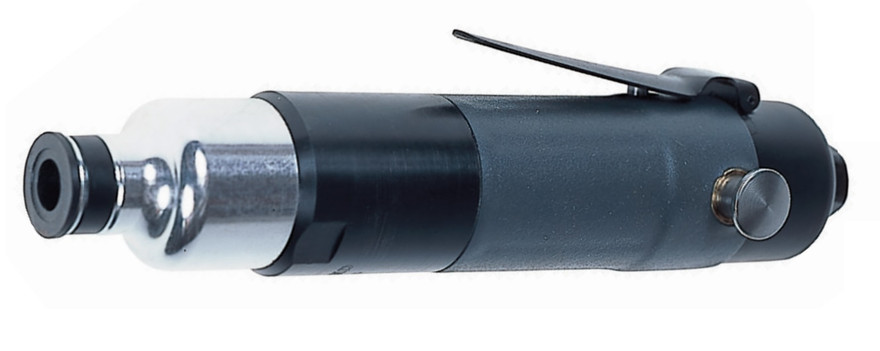

Designed for repetitive pneumatic fastening applications, the Ingersoll Rand 41SP8LTQ4 Inline Pneumatic Air Screwdriver combines an 800 RPM free speed, a 120 in-lbs torque range, and an adjustable cushion clutch. Its inline configuration and lever-start actuation provide controlled air-powered operation for assembly applications where driving torque may exceed final seating torque.
The 41SP8LTQ4 features a 1/4" hex quick-change spindle and 1/4" NPT air inlet. Its torque can be adjusted by limiting air pressure, while the Skinsulate housing provides a comfortable grip surface designed to require less force and pressure during operation. A simple push-button reverse provides convenient directional control.
Type: Inline Pneumatic Air Screwdriver | Series: 41 Series | Free Speed: 800 RPM | Torque Range: 120 in-lbs | Clutch Type: Adjustable Cushion Clutch | Actuation: Lever Start | Spindle: 1/4" Hex Quick Change | Air Inlet: 1/4" NPT
Features:
- Inline pneumatic configuration provides air-powered operation for compatible production fastening applications.
- 800 RPM speed supports controlled screwdriving for applications requiring the specified rotational speed.
- Adjustable cushion clutch provides torque control for compatible fastening applications.
- Torque can be adjusted by limiting air pressure.
- Lever-start actuation provides direct operator control during fastening cycles.
- 1/4" hex quick-change spindle accommodates compatible drive accessories.
- Skinsulate housing provides a comfortable grip surface requiring less force and pressure during operation.
- Simple push-button reverse allows convenient change of rotational direction.
Made in USA:
Applications:
- Production fastening applications requiring an 800 RPM pneumatic screwdriver.
- Assembly operations requiring adjustable torque control.
- Repetitive screwdriving tasks using compatible 1/4" hex drive accessories.
- Industrial assembly applications requiring lever-start pneumatic operation.
- Self-tapping and wood applications where driving torque may exceed final seating torque.
FAQs:
- Q: What is the speed of the 41SP8LTQ4?
A: The screwdriver has a specified free speed of 800 RPM. - Q: What is the torque range of this screwdriver?
A: The 41SP8LTQ4 is specified with a 120 in-lbs torque range, equivalent to 13.6 Nm. - Q: What type of clutch does the 41SP8LTQ4 use?
A: It uses an adjustable cushion clutch, with torque adjustable by limiting air pressure. - Q: What spindle does the 41SP8LTQ4 have?
A: The screwdriver uses a 1/4" hex quick-change spindle. - Q: How is the 41SP8LTQ4 actuated?
A: The model uses lever-start actuation. - Q: What air connection does this screwdriver use?
A: The specified air inlet is 1/4" NPT.
| SKU | Torque | Free Speed | Weight | Length | Side to Center | Drive Size | Air Consumption |
|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/min) | |
| LEVER START | |||||||
| 41SP25LTQ4 | 45 (5.1) | 2,500 | 2.2 (1.0) | 8.6" (218) | 0.8" (20) | 1/4" Hex | 20 (565) |
| 41SP17LTQ4 | 65 (7.3) | 1,700 | 2.4 (1.1) | 9.1" (231) | 0.8" (20) | 1/4" Hex | 20 (565) |
| 41SP10LTQ4 | 90 (10.2) | 1,000 | 2.4 (1.1) | 9.1" (231) | 0.8" (20) | 1/4" Hex | 20 (565) |
| 41SP8LTQ4 | 120 (13.6) | 800 | 2.4 (1.1) | 9.1" (231) | 0.8" (20) | 1/4" Hex | 20 (565) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Screwdriver
- Actuation
- Lever Start
- Torque Range (Nm)
- 13.6
- Torque Range (in-lbs)
- 120
- RPM
- 800
- Length (in.)
- 9.1
- Length (mm)
- 231
- Side To Center (in.)
- 0.8
- Side to Center (mm)
- 20
- Drive Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
- Sound Level (dbA)
- 78
- Inlet Location
- Std
- Air Consumption (CFM)
- 20
- Air Consumption (l/mn)
- 565
