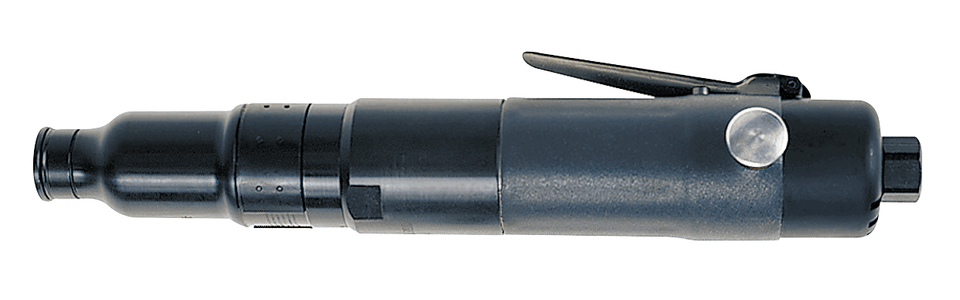

Ingersoll Rand 41SC10PSQ4 Inline Pneumatic Screwdriver | 1,000 RPM | 9.7 - 79.7 (in-lbs) Torque Range | Adjustable Cushion Clutch

Balancing fastening speed with increased tightening torque, the Ingersoll Rand 41SC10PSQ4 Inline Pneumatic Screwdriver is built for repetitive screw installation in manufacturing, mechanical assembly, and production workstations. This 41 Series air screwdriver operates at a 1,000 RPM free speed, providing a measured rundown speed for fastening operations requiring more torque than the higher-speed 1,700 RPM variants. Its 9.7–79.7 in-lbs (1.1–9.0 Nm) torque range accommodates different threaded fasteners, while the adjustable cushion clutch limits transmitted torque and helps reduce vibration experienced by the operator. The push-to-start mechanism activates the screwdriver when the operator applies forward pressure against the fastener, allowing straightforward tool operation without a separate throttle lever.

The 41SC10PSQ4 features a 1/4-inch hex quick-change spindle for convenient bit replacement and an inline body that supports direct alignment with screws during assembly. A simple push-button reverse allows operators to change rotation direction for removing or repositioning fasteners. Its well-balanced construction measures 10.9 inches in length and weighs 3.1 lbs, making it suitable for repeated fastening at dedicated workstations. With a 1/4-inch NPT air inlet and 20 CFM air consumption, the tool can be integrated into an appropriately sized compressed air system. Ingersoll Rand reports that the 41 Series has been tested to one million cycles without failure, reflecting its suitability for recurring production assembly tasks.

Type: Inline Pneumatic Screwdriver | Model: 41SC10PSQ4 | Series: 41 Series | Clutch Type: Adjustable Cushion Clutch | Actuation: Push-to-Start | Free Speed: 1,000 RPM | Torque Range: 9.7–79.7 in-lbs (1.1–9.0 Nm) | Drive Size: 1/4" | Spindle Type: Hex Quick Change | Length: 10.9" (277 mm) | Weight: 3.1 lbs (1.4 kg) | Side-to-Center Distance: 0.8" (20 mm) | Air Consumption: 20 CFM | Air Inlet: 1/4" NPT | Sound Level: 78 dB(A) at Free Speed | Inlet Location: Standard

Features:

• Adjustable cushion clutch provides torque-limiting control and helps minimize vibration transferred to the operator during repetitive fastening.
• 1,000 RPM free speed offers a balance between screw rundown efficiency and higher tightening torque capability.
• Push-to-start actuation engages the tool through forward pressure against the fastener, eliminating the need for separate lever activation.
• Torque adjustment allows the screwdriver to accommodate different assembly requirements within its specified operating range.
• 1/4-inch hex quick-change spindle facilitates screwdriver bit changes when switching between compatible fastener configurations.
• Simple push-button reverse provides convenient control for installing, removing, or repositioning screws.
• Well-balanced inline construction allows the tool to remain aligned with the fastener during repeated assembly operations.
• 41 Series durability has been demonstrated through testing to one million cycles without failure.

Made in USA:

Applications:

• Industrial assembly workstations: Repeated installation of threaded fasteners where push-to-start operation and adjustable torque limitation are beneficial.
• Appliance and equipment manufacturing: Securing mounting brackets, equipment housings, covers, and internal mechanical components.
• Automotive component production: Fastening screws in manufactured subassemblies and mechanical components requiring controlled tightening.
• Machinery and fabricated product assembly: Installing compatible machine screws in structural panels, mounting components, and assembled products.
• Industrial maintenance workshops: Refastening equipment covers, machine components, and serviceable assemblies within the tool's torque capacity.

FAQs:

• Q: What is the difference between the Ingersoll Rand 41SC10PSQ4 and 41SC17PSQ4?

  A: The 41SC10PSQ4 operates at 1,000 RPM with a maximum published torque of approximately 80 in-lbs, while the 41SC17PSQ4 operates at 1,700 RPM with a maximum of approximately 60 in-lbs. Both use push-to-start actuation and adjustable cushion clutches. Choose the 41SC10PSQ4 when greater tightening torque is needed, or the 41SC17PSQ4 when faster rundown is the priority.

• Q: Does the 41SC10PSQ4 require a trigger to operate?

  A: No. This model uses push-to-start actuation, which engages the tool when forward pressure is applied against the fastener. This operating method is particularly convenient for repeated screw installation at assembly workstations.

• Q: Is a cushion clutch the same as an automatic shut-off clutch?

  A: No. A cushion clutch limits the torque transmitted during fastening, while an automatic shut-off clutch stops the tool when its designated torque condition is reached. For applications requiring automatic shut-off and tighter fastening process control, a dedicated shut-off clutch screwdriver may be more appropriate.

• Q: Can I adjust the tightening torque for different fasteners?

  A: Yes. The adjustable cushion clutch allows torque settings to be changed within the tool's specified range. The selected setting should be checked on the actual assembly using an appropriate torque verification method, since joint characteristics can affect tightening results.

• Q: What air supply does the 41SC10PSQ4 need?

  A: The manufacturer specifies 20 CFM air consumption and a 1/4-inch NPT air inlet. Ensure that the compressor, air hose, and air preparation equipment can provide the required airflow at the recommended operating pressure. Account for other tools sharing the compressed air supply.
