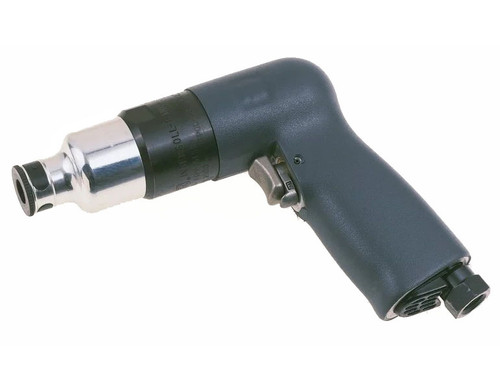

Built for high-volume manufacturing and precision assembly operations, the Ingersoll Rand 41PP17TSQ4 Positive Jaw Clutch Air Screwdriver delivers 64.6 in-lb torque with a 1,700 RPM free speed in an ergonomic pistol grip configuration. Its positive jaw clutch mechanically disengages when the preset torque is achieved, helping provide consistent, repeatable fastening while reducing the risk of over-tightening. The combination of increased torque and controlled operating speed makes this tool well suited for medium-duty assembly applications requiring dependable fastening accuracy.
As part of Ingersoll Rand's industrial assembly tool lineup, the 41PP17TSQ4 is engineered for continuous pneumatic operation in demanding production environments. The balanced pistol grip design promotes comfortable handling and precise trigger control during repetitive fastening tasks, while the durable pneumatic motor provides reliable performance throughout extended production shifts. Its controlled torque output makes it an excellent solution for automotive, industrial equipment, appliance, and general manufacturing assembly lines.
Type: Positive Jaw Clutch Air Screwdriver | Model: 41PP17TSQ4 | Configuration: Pistol Grip | Torque: 64.6 in-lb | Free Speed: 1,700 RPM | Clutch Type: Positive Jaw Clutch | Power Source: Pneumatic
|
Features:
|
|
Made in USA:
Applications:
- Automotive and commercial vehicle component assembly.
- Industrial machinery and equipment manufacturing.
- Appliance and consumer product assembly operations.
- Electrical and mechanical production assembly.
- General manufacturing applications requiring repeatable torque-controlled fastening.
FAQs:

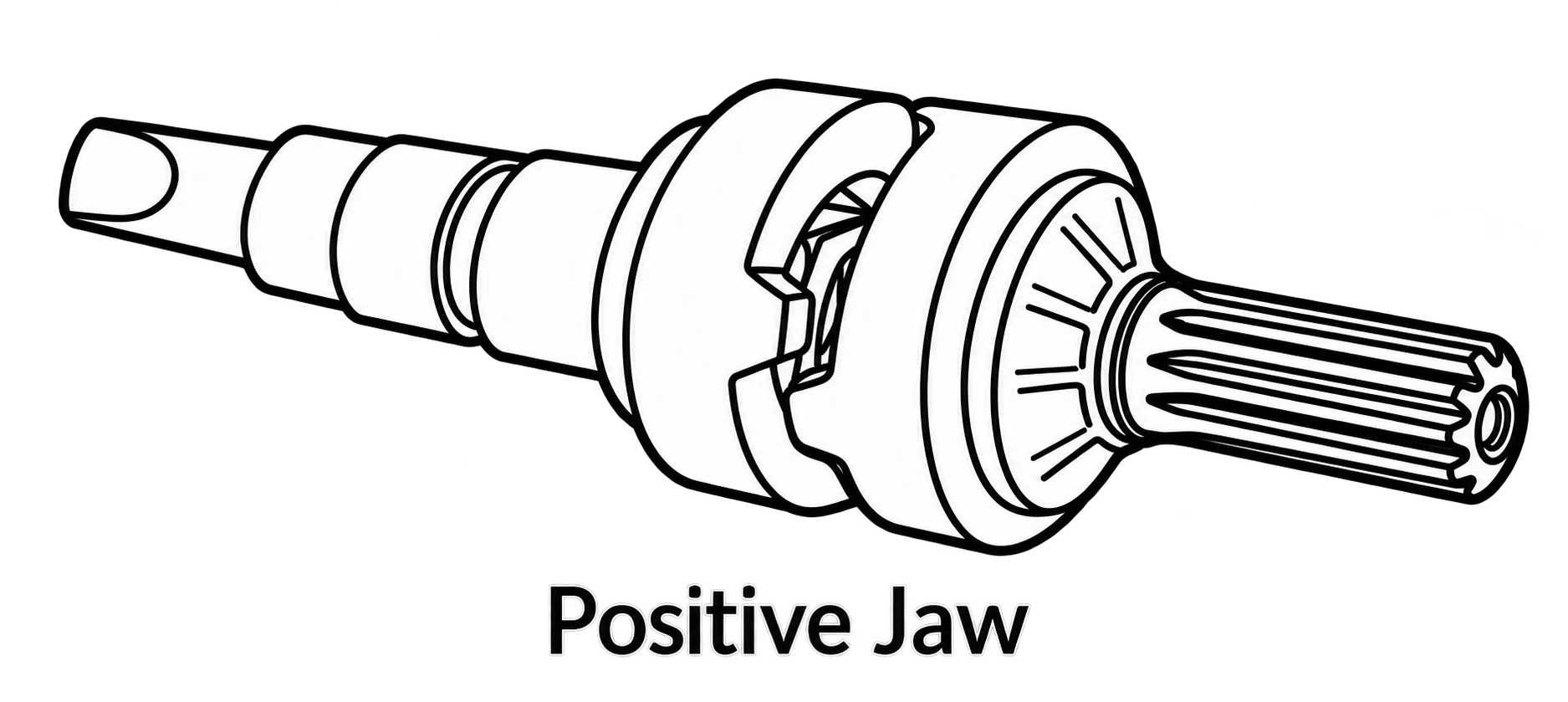

- Q: What is the benefit of a positive jaw clutch?
A: A positive jaw clutch mechanically disengages once the preset torque is reached, helping provide consistent fastening results while reducing the possibility of over-tightening. - Q: Why does the 41PP17TSQ4 operate at 1,700 RPM?
A: The 1,700 RPM free speed provides a balance of productivity and fastening control, making it suitable for medium-duty production assembly applications. - Q: What industries commonly use this screwdriver?
A: It is commonly used in automotive, appliance, industrial equipment, electronics, and general manufacturing environments that require repeatable pneumatic fastening. - Q: Is the 41PP17TSQ4 designed for continuous production use?
A: Yes. When supplied with clean, dry, properly regulated compressed air, it is designed for continuous-duty industrial assembly operations.
| SKU | Torque - in-lbs (Nm) | Free Speed - rpm | Weight - lbs (kg) | Length - in (mm) | Side to Center - in (mm) | Drive - in | Air Consumption - cfm (L/Min) |
|---|---|---|---|---|---|---|---|
| TRIGGER START | |||||||
| 41PP25TSQ4 | 45.1 (5.1) | 2,500 | 2.2 (1.0) | 7.2" (183) | 0.8" (20) | 1/4" | 20 (565) |
| 41PP17TSQ4 | 64.6 (7.3) | 1,700 | 2.4 (1.1) | 7.6" (193) | 0.8" (20) | 1/4" | 20 (565) |
| 41PP10TSQ4 | 90.3 (10.2) | 1,000 | 2.4 (1.1) | 7.6" (193) | 0.8" (20) | 1/4" | 20 (565) |
| 41PP8TSQ4 | 120.4 (13.6) | 800 | 2.4 (1.1) | 7.6" (193) | 0.8" (20) | 1/4" | 20 (565) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Screwdrivers for your assembly application, please email info@intlairtool.com or call (800) 608-5210
