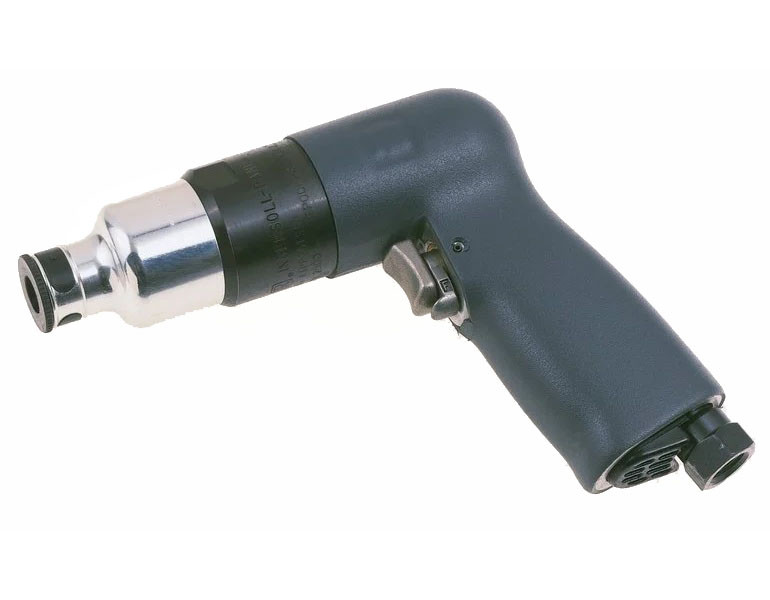

Built for demanding production assembly applications, the Ingersoll Rand 41PP10TSQ4 Positive Jaw Clutch Air Screwdriver delivers 90.3 in-lb torque with a 1,000 RPM free speed in a comfortable pistol grip configuration. Equipped with a positive jaw clutch, the tool mechanically disengages once the preset torque is achieved, helping deliver consistent, repeatable fastening while minimizing the risk of over-tightening. Its higher torque output and controlled operating speed make it ideal for medium- to heavy-duty assembly operations requiring reliable fastening accuracy.
As part of Ingersoll Rand's industrial assembly tool lineup, the 41PP10TSQ4 is engineered for continuous pneumatic operation in demanding manufacturing environments. The ergonomic pistol grip design promotes operator comfort and precise trigger control during repetitive fastening tasks, while the durable pneumatic motor provides dependable performance throughout extended production shifts. Its combination of high torque and controlled speed makes it well suited for automotive, heavy equipment, appliance, and industrial machinery assembly.
Type: Positive Jaw Clutch Air Screwdriver | Model: 41PP10TSQ4 | Configuration: Pistol Grip | Torque: 90.3 in-lb | Free Speed: 1,000 RPM | Clutch Type: Positive Jaw Clutch | Power Source: Pneumatic
|
Features:
|
|
Made in USA:
Applications:
- Automotive and commercial vehicle assembly operations.
- Industrial machinery and equipment manufacturing.
- Heavy appliance and mechanical equipment assembly.
- General manufacturing requiring controlled torque fastening.
- Production environments performing repetitive medium- to heavy-duty screw assembly.
FAQs:
- Q: What is the advantage of a positive jaw clutch screwdriver?
A: The positive jaw clutch mechanically disengages once the preset torque is reached, helping deliver consistent fastening results while reducing the possibility of over-tightening. - Q: Why does the 41PP10TSQ4 operate at 1,000 RPM?
A: The 1,000 RPM free speed provides an effective balance between fastening speed and torque control, making it well suited for higher-torque production assembly applications. - Q: What industries commonly use this screwdriver?
A: It is commonly used in automotive, industrial equipment, appliance manufacturing, heavy machinery assembly, and general production environments requiring repeatable torque-controlled fastening. - Q: Is the 41PP10TSQ4 designed for continuous production use?
A: Yes. When supplied with clean, dry, properly regulated compressed air, it is designed for continuous-duty industrial assembly operations.
| SKU | Torque - in-lbs (Nm) | Free Speed - rpm | Weight - lbs (kg) | Length - in (mm) | Side to Center - in (mm) | Drive - in | Air Consumption - cfm (L/Min) |
|---|---|---|---|---|---|---|---|
| TRIGGER START | |||||||
| 41PP25TSQ4 | 45.1 (5.1) | 2,500 | 2.2 (1.0) | 7.2" (183) | 0.8" (20) | 1/4" | 20 (565) |
| 41PP17TSQ4 | 64.6 (7.3) | 1,700 | 2.4 (1.1) | 7.6" (193) | 0.8" (20) | 1/4" | 20 (565) |
| 41PP10TSQ4 | 90.3 (10.2) | 1,000 | 2.4 (1.1) | 7.6" (193) | 0.8" (20) | 1/4" | 20 (565) |
| 41PP8TSQ4 | 120.4 (13.6) | 800 | 2.4 (1.1) | 7.6" (193) | 0.8" (20) | 1/4" | 20 (565) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Screwdrivers for your assembly application, please email info@intlairtool.com or call (800) 608-5210
