Ingersoll Rand 41PA8TPQ4 Pistol Grip Pneumatic Screwdriver is designed for fastening applications that require controlled torque and repeatable shut-off. Operating at 800 RPM with a 15–100 in-lbs torque range, this 41 Series screwdriver uses an adjustable shut-off clutch to help control fastening torque and limit torque reaction. Its trigger and push-to-start actuation, 1/4" hex quick-change drive, ergonomic pistol-grip housing, and one-handed reverse lever make it well suited for assembly work involving plastics, composites, and metals.

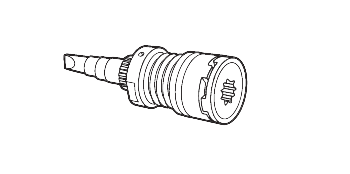

The adjustable shut-off clutch is designed to reduce air consumption and provide quick shut-off when the selected torque is reached. The screwdriver has a 1/4" hex quick-change drive, 28 CFM air consumption, and 78 dBA sound level. Its Skinsulate housing provides a comfortable grip surface, while the compact 41 Series design is intended for applications where precise torque control and operator comfort are important.
Type: Pneumatic Screwdriver | Series: 41 Series | Grip Style: Pistol | Actuation: Trigger and Push to Start | Torque Range: 15–100 in-lbs | Free Speed: 800 RPM | Drive Size: 1/4" | Drive Type: Hex Quick Change | Air Consumption: 28 CFM | Air Inlet: 1/4" | Sound Level: 78 dBA
|
Features:
|
|
Made in USA:
Applications:
- Assembly applications involving plastics, composites, and metals.
- Production fastening where controlled torque is required.
- Repetitive assembly operations requiring a pistol-grip pneumatic screwdriver.
- Applications requiring adjustable shut-off clutch operation rather than continuous running.
- General industrial assembly where a 15–100 in-lbs torque range is appropriate.
FAQs:
- Q: What is the torque range of the 41PA8TPQ4?
A: The published torque range is 15–100 in-lbs, or approximately 1.7–11.3 Nm. - Q: What does an adjustable shut-off clutch do?
A: It allows the fastening torque to be adjusted and provides a quick shut-off when the selected setting is reached, helping limit torque reaction. - Q: How does the trigger and push-to-start actuation work?
A: The tool can be actuated using the trigger or by pushing the tool into the workpiece, providing flexibility for different assembly techniques. - Q: What type of drive does this screwdriver use?
A: The 41PA8TPQ4 uses a 1/4-inch hex quick-change drive for compatible screwdriver bits. - Q: What is the air consumption of this screwdriver?
A: The published specification lists air consumption at 28 CFM. - Q: Is the 41PA8TPQ4 made in the USA?
A: The product listing identifies this model as Made in USA.
| SKU | Torque Range | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Air Inlet | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/min) | |
| Trigger + Push-To-Start | |||||||||
| 41PA16TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.0 (1.36) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the Ingersoll Rand Screwdrivers proper for your assembly application please email info@intlairtool.com or call (800) 608-5210
- Type
- Screwdriver
- Actuation
- Trigger Start
- Torque Range (Nm)
- 1.1 - 11.3
- Torque Range (in-lbs)
- 10 - 100
- RPM
- 800
- Length (in.)
- 9.4
- Length (mm)
- 239
- Side to Center (mm)
- 20
- Side to Center (in.)
- 0.8
- Drive Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
- Sound Level (dbA)
- 78
- Inlet Location
- Std
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 20
- Air Consumption (l/mn)
- 565
