Ingersoll Rand 409 Straight Pneumatic Die Grinder provides a compact, high-speed solution for surface preparation and finishing. Powered by a 0.5 HP four-vane air motor, this grinder delivers a 27,000 RPM maximum free speed for removing burrs, refining metal surfaces, and working around machined components. Its 1/4-inch collet, a clamping mechanism that securely holds compatible abrasive accessory shanks, accommodates suitable mounted grinding points and rotary finishing accessories. The straight-body configuration allows direct access to workpieces during metal fabrication, automotive maintenance, and equipment repair operations.
The Ingersoll Rand 409 features a durable aluminum housing that protects the internal motor while keeping the tool lightweight and manageable. Measuring 5.87 inches in overall length and weighing just 1.2 lbs, this straight die grinder is convenient for handling around tight working areas and smaller components. Its front exhaust directs discharged air toward the working end of the tool, helping clear loose debris from the immediate grinding area. A locking throttle lever automatically resets whenever the lever is released, helping prevent unintended operation. The grinder also features a 1/4-inch air inlet and provides a practical combination of compact construction, motor power, and handling control for everyday workshop applications.
Type: Straight Pneumatic Die Grinder | Model: 409 | Motor Type: Four-Vane Air Motor | Rated Power: 0.5 HP | Maximum Free Speed: 27,000 RPM | Collet Size: 1/4 in. | Tool Weight: 1.2 lbs | Overall Length: 5.87 in. | Housing Material: Aluminum | Exhaust Direction: Front | Air Inlet Size: 1/4 in. | Throttle: Locking Throttle Lever
Features:
- 0.5 HP four-vane pneumatic motor delivers 27,000 RPM maximum free speed for grinding, deburring, and surface finishing applications.
- 1/4-inch collet accommodates compatible mounted grinding points and rotary abrasive accessories for precision material removal.
- Straight-body configuration provides direct tool access for working around metal components, openings, and confined grinding locations.
- Durable aluminum housing protects the internal motor while maintaining a lightweight tool construction.
- Compact 5.87-inch overall length helps operators maneuver the grinder around smaller components and restricted work areas.
- Lightweight 1.2 lbs design supports convenient handling during repeated maintenance and finishing tasks.
- Front exhaust directs discharged air toward the working end of the tool to help clear loose material from the grinding area.
- Locking throttle lever automatically resets when released, helping prevent accidental throttle activation.
Applications:
- Automotive repair and maintenance: Removing burrs, smoothing metal edges, and preparing vehicle components for repair or reassembly.
- Weld cleaning: Removing unwanted material around welded joints and finishing accessible weld areas with suitable abrasive accessories.
- Metal fabrication: Deburring cut edges, refining machined surfaces, and smoothing sharp corners on fabricated parts.
- Engine and component maintenance: Performing porting and surface finishing operations on compatible metal components.
- General workshop maintenance: Grinding, smoothing, and polishing suitable workpieces using appropriately rated rotary accessories.
FAQs:
- Q: What is the maximum operating speed of the Ingersoll Rand 409 Die Grinder?
A: The 409 operates at a maximum free speed of 27,000 RPM and uses a 0.5 HP four-vane pneumatic motor. The high rotational speed supports grinding, deburring, and surface finishing with compatible abrasive accessories. - Q: What size grinding accessories fit the Ingersoll Rand 409?
A: The grinder features a 1/4-inch collet for accessories with compatible 1/4-inch shanks. Always verify that the accessory is suitable for the intended material and rated for at least 27,000 RPM. - Q: Can the Ingersoll Rand 409 be used for weld cleaning and deburring?
A: Yes. Ingersoll Rand identifies weld cleaning, deburring, porting, and smoothing sharp edges as applications for this model. Select the appropriate abrasive accessory for each operation. - Q: Does the Ingersoll Rand 409 have a safety throttle?
A: Yes. The tool incorporates a locking throttle lever that automatically resets when the lever is released. This mechanism helps prevent unintended tool activation during handling. - Q: What is the exhaust direction of the Ingersoll Rand 409?
A: The 409 features front exhaust, which directs discharged air toward the working end of the tool. The manufacturer identifies this arrangement as helpful for keeping work surfaces clear during grinding operations.

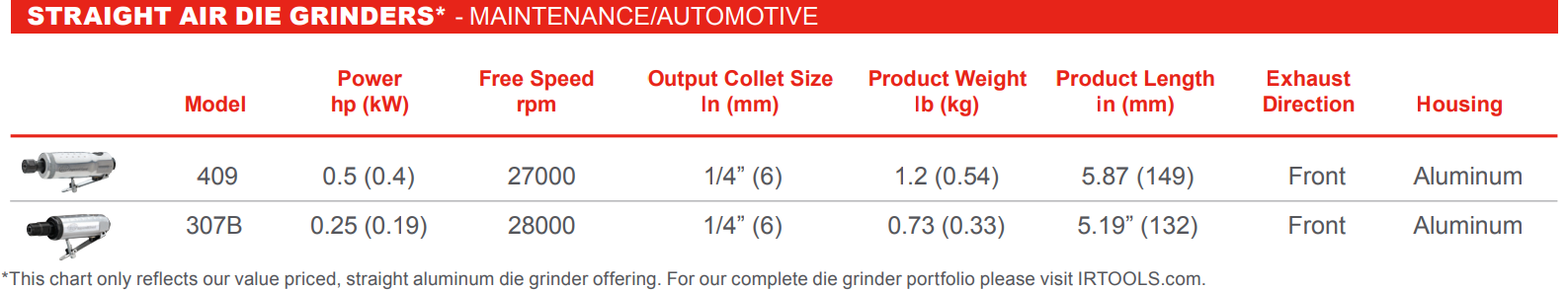

| SKU | Power hp (kW) | Free Speed rpm | Output Collet Size In (mm) | Product Weight lb (kg) | Product Length in (mm) | Exhaust Direction | Housing |
|---|---|---|---|---|---|---|---|
| 409 | 0.5 (0.4) | 27000 | 1/4” (6) | 1.2 (0.54) | 5.87 (149) | Front | Aluminum |
| 307B | 0.25 (0.19) | 28000 | 1/4” (6) | 0.73 (0.33) | 5.19” (132) | Front | Aluminum |
Looking for more information about the Ingersoll Rand Grinder? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Grinders for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Die Grinder
- Power (hp)
- 0.5
- RPM
- 27000
- Collet Size (in.)
- 1/4
- Length (in.)
- 5.87
- Exhaust
- Front
- Housing Material
- Aluminum
