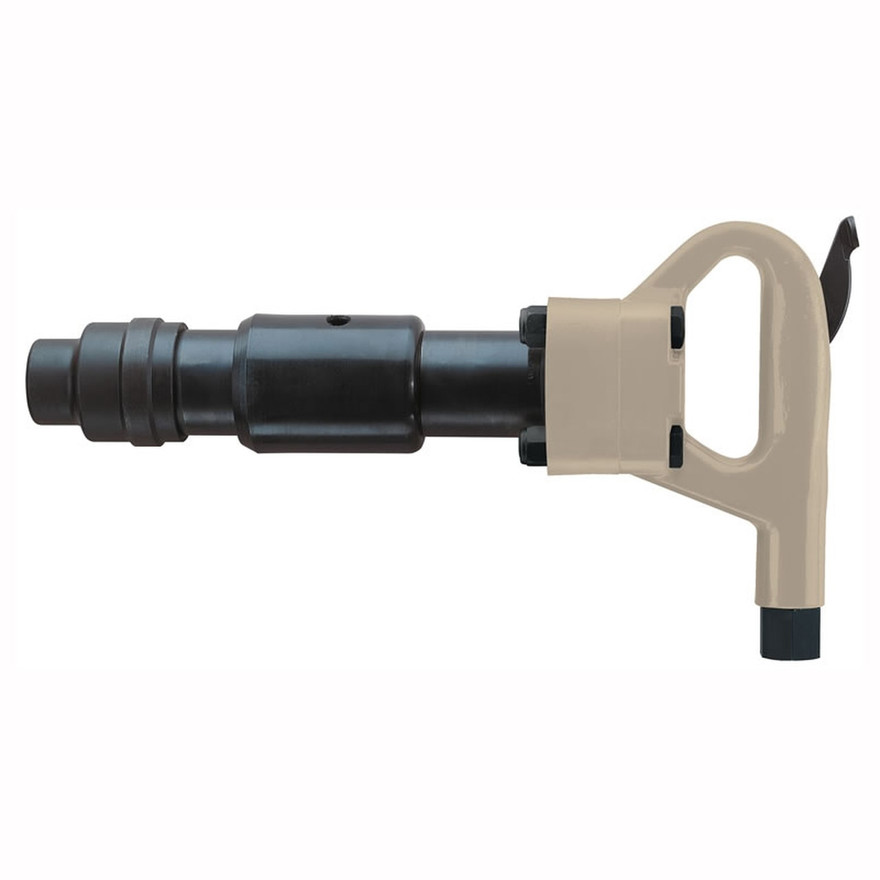

Ingersoll Rand 3DA1SA D Handle Construction-Duty Chipping Hammer is designed for demanding construction, demolition, and industrial maintenance applications that require dependable pneumatic impact performance. Featuring a 3" stroke, 1900 blows per minute (BPM), and a 0.58" hex shank, this construction-duty chipping hammer delivers increased impact energy for breaking concrete, removing weld slag, scaling metal surfaces, and other heavy-duty material removal tasks. Its D-handle configuration provides a secure grip for improved control and handling during extended operation.
The 3DA1SA combines a longer piston stroke with a controlled blow rate to provide powerful impact performance while maintaining operator control. Powered by compressed air, this pneumatic chipping hammer is well suited for continuous-duty use in construction sites, fabrication shops, foundries, rail maintenance, and industrial service facilities where reliable operation is essential.
Type: Construction-Duty Chipping Hammer | Model: 3DA1SA | Handle Style: D Handle | Stroke Length: 3" | Blow Rate: 1900 BPM | Shank: 0.58" Hex
Features:
- D-handle configuration provides a secure, comfortable grip for improved control during demanding chipping applications.
- 3-inch piston stroke delivers increased impact energy for heavy-duty material removal tasks.
- 1900 blows per minute provide controlled, efficient chipping performance.
- 0.58-inch hex shank accepts compatible construction-duty chisels and accessories.
- Pneumatic operation is ideal for continuous-duty use in demanding construction and industrial environments.
- Designed for dependable performance in demolition, fabrication, maintenance, and repair applications.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Concrete and masonry removal.
- General demolition and renovation work.
- Removing weld slag, rust, and heavy surface scale.
- Metal fabrication and foundry cleanup.
- Industrial plant maintenance and repair operations.
FAQs:
- Q: What is the 3DA1SA designed for?
A: It is intended for construction-duty chipping, demolition, scaling, and heavy-duty material removal using compatible 0.58-inch hex shank accessories. - Q: What advantage does the 3-inch stroke provide?
A: The longer piston stroke helps deliver greater impact energy for more demanding chipping and demolition applications. - Q: What does the 1900 BPM specification indicate?
A: It represents the hammer's blow rate, providing consistent impact cycles for efficient material removal. - Q: What accessories are compatible with this tool?
A: The catalog confirms compatibility with 0.58-inch hex shank chisels and other matching construction-duty accessories. - Q: Does the catalog specify weight, air consumption, or operating pressure?
A: No. Those specifications were not confirmed in the provided source and have therefore been omitted.
| SKU | Retainer Type | Stroke | Bore | Length Without Accessory | Weight Without Accessory | BPM | CFM | Inlet Size NPT | Recommended Hose Size |
|---|---|---|---|---|---|---|---|---|---|
| IN (MM) | IN (MM) | IN (MM) | LB (KG) | IN | IN (MM) | ||||
| With .580” Hex Nozzle — For Use With Hex Shank Oval Collar Accessories | |||||||||
| 2DA1SA | Standard | 2” (51) | 1.13” (29) | 13.75” (349) | 13.75 (6.25) | 2,200 | 28 | 7/8”-24 | 1” (25) |
| 3DA1SA | Standard | 3” (76) | 1.13” (29) | 17” (432) | 15 (6.82) | 1,900 | 31 | 7/8”-24 | 1” (25) |
| 4DA1SA | Standard | 4” (102) | 1.13” (29) | 18” (457) | 16 (7.27) | 1,600 | 34 | 7/8”-24 | 1” (25) |
| With .680” Round Nozzle — For Use With Round Shank Oval Collar Accessories | |||||||||
| 2DA2SA | Standard | 2” (51) | 1.13” (29) | 13.75” (349) | 13.75 (6.25) | 2,200 | 28 | 7/8”-24 | 1” (25) |
| 3DA2SA | Standard | 3” (76) | 1.13” (29) | 17” (432) | 15 (6.82) | 1,900 | 31 | 7/8”-24 | 1” (25) |
| 4DA2SA | Standard | 4” (102) | 1.13” (29) | 18” (457) | 16 (7.27) | 1,600 | 34 | 7/8”-24 | 1” (25) |
Looking for more information about Ingersoll Rand Chipping Hammer? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Chipping Hammers, please call (800) 608-5210 or email info@intlairtool.com
