Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand 3956B2Ti 1-1/2" Drive Air Impact Wrench | 3600 RPM | 5450 ft-lbs Max Torque | Inside Trigger

(0 review)
Product code: 3956B2Ti
Condition: New
Availability: In Stock
Weight: 37.4600 LBS
Minimum Purchase: 1 unit
Shipping: Calculated at Checkout
$7,800.00
$5,409.56
(You save $2,390.44 )
Adding to cart… The item has been added


The Gold Stanadard in 1-1-2" Drive Pneumatic Impact Wrenches! Introducing the Ingersoll Rand 3956B2Ti Super Duty Impact Wrench -  the latest innovation in the renowned 3900 Series. Built for industrial-grade performance, this oil field rated impact wrench features a titanium hammercase and bronze end plates, ensuring exceptional durability. With a staggering torque of up to 5,450 ft-lbs (7300 Nm), it effortlessly powers through the toughest bolting jobs.

Versatility is at the core of the 3956 Series. Whether it's general industrial use, MRO, rail, heavy machinery, or shipbuilding, this impact wrench is optimized to excel in diverse applications, making every job a breeze. Just make sure to feed it plenty of air!

Backed by Ingersoll Rand's unmatched reliability, the 3956 Series delivers consistent power and balance through its patented twin hammer mechanism. The reverse bias motor enhances its ability to remove stubborn bolts, while the pressure-fed mechanism lubrication ensures complete air motor oiling for smooth operation.

Upgrade to the Ingersoll Rand 3956 Series Super-Duty Impact Wrench and experience a new level of performance, reliability, and versatility for your industrial tasks. Assembled by Americans in the USA, but utilizes both domestic and global components.

Type: Heavy Duty Impact Wrench | Handle: 360° D-Aux Handle | Actuation: Inside Trigger | Drive Size (in.): 1 - 1/2 | Drive Type: Square, Thru-Hole (Includes Socket Retainer) | Max Torque (ft-lbs): 5450 | Free Speed (RPM): 3600 | Length (in.): 16.68

Note: model 3956B2Ti is the new and upgraded direct replacement for the older model 3955B2Ti

Features:

  • Titanium hammer case
  • Bronze endplates
  • Twin hammer mechanism
  • Reverse bias motor
  • Pressure-fed mechanism lubrication
  • Integral muffler
  • 1/2" NPT inlet




Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

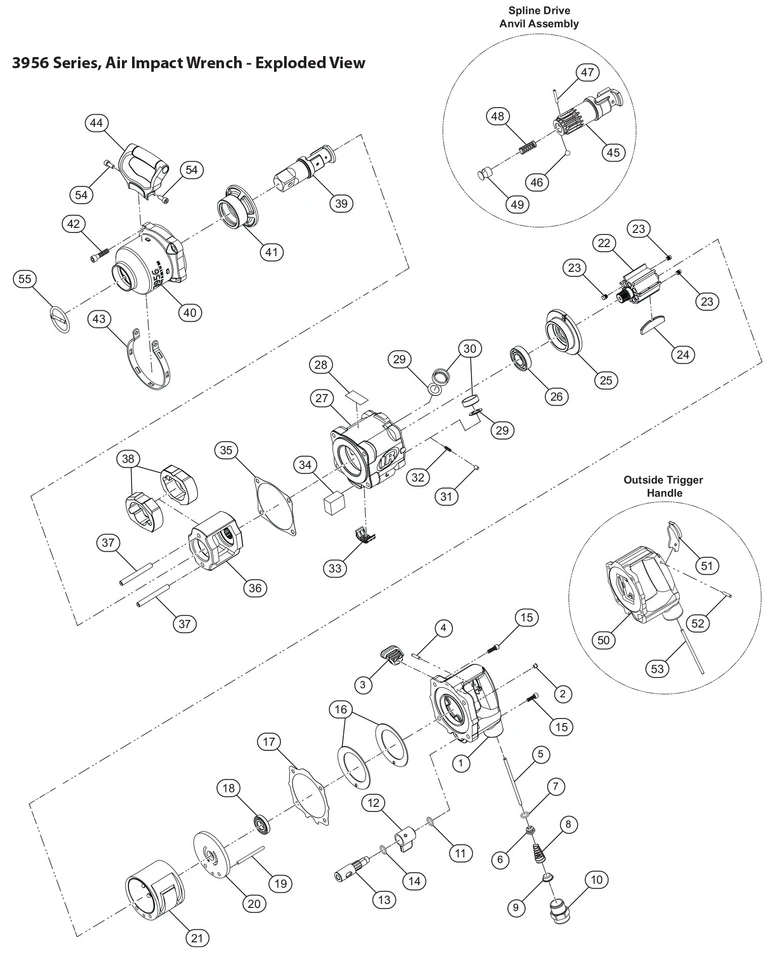

industrial-tools-parts-breakdown.pngIngersoll Rand 3956B1Ti Impact Wrench Parts List

industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Impact Wrench? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Impact Wrenches, please call (800) 608-5210 or email info@intlairtool.com

Type
Impact Wrench
Handle
360° D-Aux Handle
Actuation
Inside Trigger
Drive Size (in.)
1 - 1/2
Drive Type
Square, Thru-Hole
Max Torque (ft-lbs)
5450
RPM
3600
Blows Per Minute (BPM)
700
Length (in.)
16.68
Air Inlet
1/2" NPT
Min Hose Size (in.)
3/4
Average Air Consumption (CFM)
145
One year warranty against defects in materials and workmanship. Does Not Cover Abuse.
