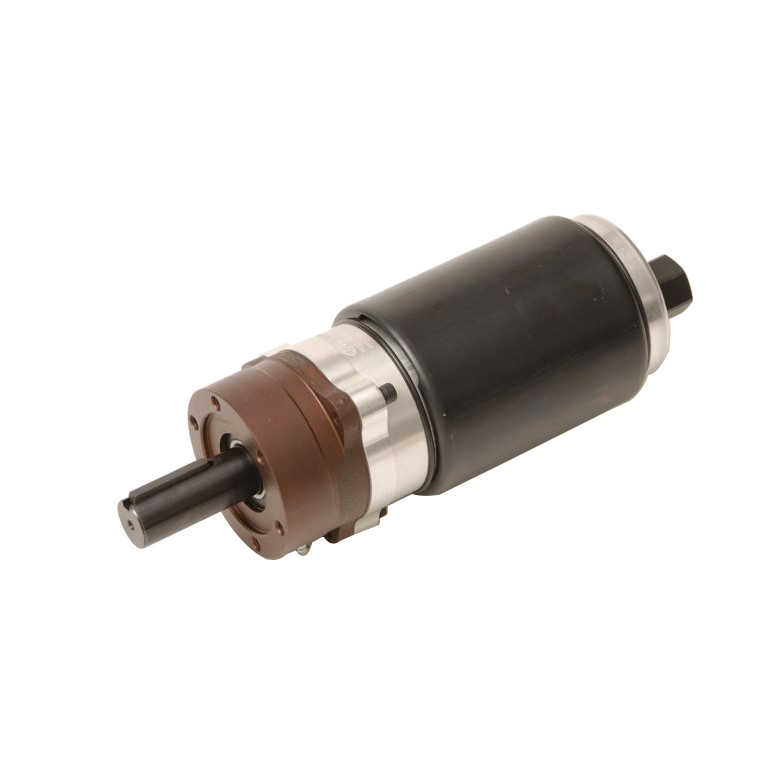

Ingersoll Rand 3840M Multi-Vane Reversible Air Motor | Series 3840 | 1.4 HP | 825 RPM | 23 (ft-lbs) Starting Torque | 31.5 (ft-lbs) Stall Torque

Ingersoll Rand 3840M Multi-Vane Reversible Air Motor is designed to deliver dependable pneumatic rotary power for industrial equipment requiring bidirectional operation, moderate operating speeds, and reliable torque output. Part of the 3840 Series, this air motor produces 1.4 HP with a free speed of 825 RPM. Its durable multi-vane design converts compressed air into smooth, continuous rotary motion, while the reversible configuration allows both clockwise and counterclockwise operation for applications requiring flexible directional control.

The 3840M develops 23 ft-lbs starting torque, providing dependable breakaway force to initiate rotation under load, and 31.5 ft-lbs stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. This balance of horsepower, operating speed, torque, and reversible operation makes the motor well suited for OEM machinery, indexing systems, conveyors, processing equipment, and other compressed-air powered industrial applications.

Type: Multi-Vane Air Motor | Series: 3840 Series | Model: 3840M | Rotation: Reversible | Power: 1.4 HP | Free Speed: 825 RPM | Starting Torque: 23 ft-lbs | Stall Torque: 31.5 ft-lbs

Features:

• Multi-vane air motor design delivers smooth, dependable pneumatic rotary power.
• Reversible configuration provides reliable clockwise and counterclockwise operation.
• 1.4 HP output supports demanding industrial pneumatic drive applications.
• 825 RPM free speed provides an effective balance of operating speed and output torque.
• 23 ft-lbs starting torque helps initiate rotation under loaded conditions.
• 31.5 ft-lbs stall torque provides a manufacturer-published reference for evaluating maximum torque capability.
• 3840 Series motor integrates easily into compatible OEM machinery and replacement installations.
• Compressed-air operation eliminates the need for electrical power at the motor, making it suitable for facilities utilizing centralized pneumatic systems.

Made in USA:

Applications:

• OEM machinery requiring reversible pneumatic rotary power.
• Industrial conveyors, indexing equipment, and positioning systems.
• Processing and assembly equipment requiring bidirectional rotation.
• Packaging and production machinery.
• Replacement applications where the published motor specifications match the original equipment.

FAQs:

• Q: Is the Ingersoll Rand 3840M reversible?
  A: Yes. This model is designed to operate in both clockwise and counterclockwise directions for applications requiring bidirectional shaft rotation.
• Q: What is a multi-vane air motor?
  A: A multi-vane air motor uses sliding vanes inside a rotor to convert compressed air into smooth, continuous rotary motion with consistent power delivery.
• Q: What is the rated free speed?
  A: The manufacturer specifies a free speed of 825 RPM.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available to begin rotating a load from rest, while stall torque is the maximum torque developed when the output shaft is prevented from rotating.
• Q: What should be verified before installation?
  A: Confirm horsepower, free speed, rotation direction, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
