Ingersoll Rand 285B-S6 Heavy Duty Impact Wrench | Spline Drive | 5000 RPM | 1475 (ft-lbs) Max Torque | Inside Trigger

Ingersoll Rand 285B-S6 D-Handle Air Impact Wrench combines a No. 5 spline drive with up to 1,475 ft-lbs (2,000 Nm) of maximum torque for demanding heavy fastening and removal work. Operating at a 5,000 RPM free speed, this spline-drive configuration provides the power and extended reach needed for compatible heavy vehicle and equipment service applications.

Built on the 285B platform, the 285B-S6 is designed around power, control, and durability. Its swept-back handle supports maneuverability when positioning the wrench, while the 285B family features a high-efficiency 6-vane motor and feather-touch trigger for controlled operation. The spline-drive model measures 20.1" (511 mm) long and weighs 27.8 lb (12.61 kg).

Type: Air Impact Wrench | Model: 285B-S6 | Handle: D-Handle | Drive Type: No. 5 Spline Drive | Maximum Torque: 1,475 ft-lbs (2,000 Nm) | Working Torque Range: 100–900 ft-lbs (136–1,220 Nm) | Free Speed: 5,000 RPM | Weight: 27.8 lb (12.61 kg) | Length: 20.1" (511 mm) | Average Air Consumption: 10 CFM (283 L/min) | Air Consumption at Load: 37 CFM (1,048 L/min) | Sound Pressure / Power: 103.4 / 114.4 dBA | Air Inlet: 1/2" NPTF | Minimum Hose Size: 1/2" (13 mm)

Features:

• No. 5 spline drive provides the connection specified for compatible spline-drive sockets and fastening equipment.
• Maximum torque output of 1,475 ft-lbs provides substantial power for demanding fastening and fastener-removal tasks.
• 5,000 RPM free speed supports productive operation on large threaded fasteners.
• High-efficiency 6-vane motor is designed to provide the power required by the 285B platform.
• Swept-back handle design improves maneuverability when positioning the impact wrench during service work.
• Feather-touch trigger gives the operator more controlled tool actuation.
• Extended 20.1" overall length provides additional reach compared with the standard 285B configuration.
• 285B-TK1 tune-up kit is specified by Ingersoll Rand for the 285B, 285B-6, and 285B-S6 models.

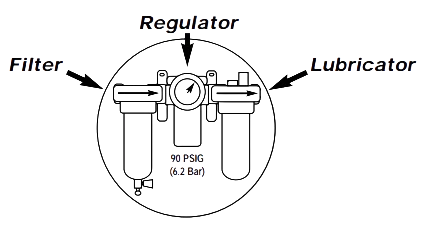

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Heavy vehicle service requiring a compatible No. 5 spline-drive impact wrench.
• Commercial truck maintenance involving large fasteners and high pneumatic torque requirements.
• Heavy equipment and machinery service where extended tool reach is useful.
• High-torque fastening and removal work where the specified spline-drive connection matches the application.

FAQs:

• Q: What drive type does the Ingersoll Rand 285B-S6 use?
  A: The 285B-S6 is specified with a No. 5 spline drive rather than the 1" square drive used on the 285B and 285B-6 configurations.
• Q: What is the maximum torque of the 285B-S6?
  A: Ingersoll Rand specifies 1,475 ft-lbs (2,000 Nm) of maximum torque, with a working torque range of 100–900 ft-lbs (136–1,220 Nm).
• Q: What is the free speed of the 285B-S6?
  A: The manufacturer specification table lists a free speed of 5,000 RPM.
• Q: How large is the Ingersoll Rand 285B-S6?
  A: The tool measures 20.1" (511 mm) in length and weighs 27.8 lb (12.61 kg).
• Q: What are the air supply requirements for the 285B-S6?
  A: The source specifies a 1/2" NPTF air inlet and a minimum 1/2" (13 mm) hose size. Average air consumption is 10 CFM (283 L/min), while consumption at load is 37 CFM (1,048 L/min).
• Q: Which tune-up kit is specified for the 285B-S6?
  A: Ingersoll Rand lists the 285B-TK1 tune-up kit for use with the 285B, 285B-6, and 285B-S6 impact wrenches.
