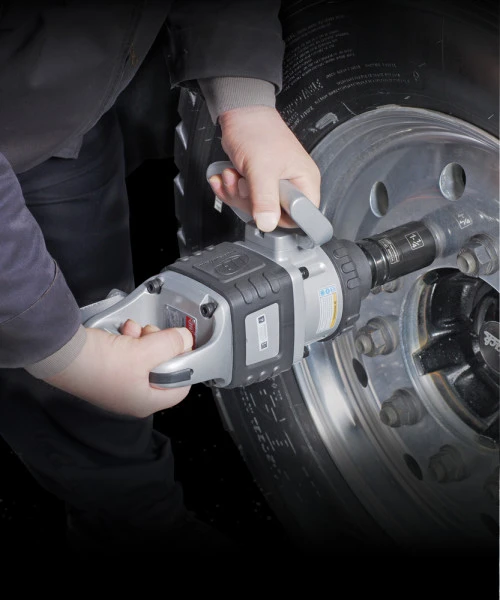

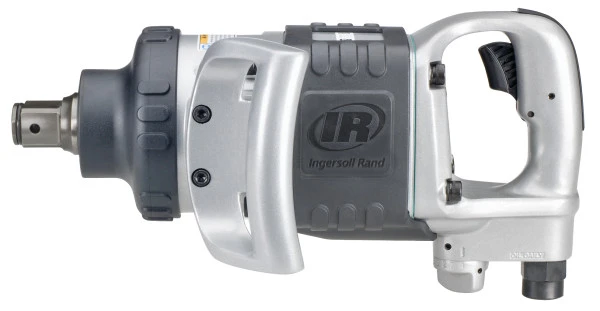

Ingersoll Rand 285B D-Handle Air Impact Wrench | 1" Square Drive | 5000 RPM | 1475 (ft-lbs) Max Torque

Ingersoll Rand 285B D-Handle Air Impact Wrench is designed for heavy-duty vehicle service and equipment work where large fasteners demand substantial pneumatic torque. Equipped with a 1" square drive, the 285B delivers up to 1,475 ft-lbs (2,000 Nm) of maximum torque and operates at a 5,000 RPM free speed, providing the output required for demanding fastening and fastener-removal jobs.

Its D-handle configuration and auxiliary side handle give the operator additional control when managing the tool's high torque output. The 285B uses a rocking-dog impact mechanism engineered for reliable power delivery, while the power regulator and convenient reverse control help operators adjust the wrench for changing service tasks.

Type: Air Impact Wrench | Model: 285B | Handle: D-Handle | Drive Size: 1" | Drive Type: Square | Maximum Torque: 1,475 ft-lbs (2,000 Nm) | Free Speed: 5,000 RPM | Impacts Per Minute: 700 | Impact Mechanism: Rocking Dog | Weight: 20.2 lb (9.2 kg) | Length: 17.1" (435 mm) | Air Inlet: 1/2" | Minimum Hose Size: 1/2" (13 mm) | Average Air Consumption: 10 CFM (283 L/min) | Air Consumption at Load: 40 CFM (1,133 L/min) | Operating Pressure: 90 PSI (6.2 bar)

Features:

• Rocking-dog impact mechanism delivers strong, consistent power for demanding fastening and removal applications.
• 1" square drive accommodates compatible large-drive sockets used in heavy vehicle and equipment service.
• D-handle configuration provides a secure gripping position for controlling the tool during high-torque operation.
• Auxiliary side handle gives the operator an additional point of support and can be positioned for improved handling.
• Power regulator allows output to be adjusted to suit different fastening requirements.
• Convenient reverse control supports quick changes between tightening and fastener removal.
• 5,000 RPM free speed and 700 impacts per minute combine rotational speed with repeated impact action for large fasteners.
• Pressure-feed lubrication system automatically greases the impact mechanism for continued operation.

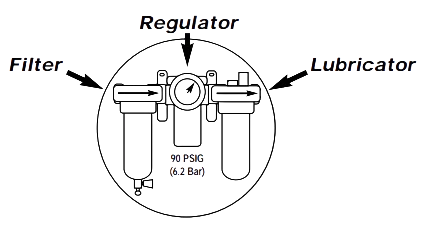

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Heavy truck and commercial vehicle service involving large threaded fasteners.
• Bus and fleet maintenance requiring high-torque 1" drive impact capability.
• Heavy equipment and machinery repair where pneumatic fastening power is required.
• Tire and vehicle service operations where the fastener size and required torque are appropriate for a 1" drive impact wrench.

FAQs:

• Q: How much maximum torque does the Ingersoll Rand 285B provide?
  A: The 285B is rated for up to 1,475 ft-lbs (2,000 Nm) of maximum torque.
• Q: What drive size does the 285B use?
  A: The 285B uses a 1" square drive for compatible 1" drive impact sockets.
• Q: What is the free speed of the Ingersoll Rand 285B?
  A: The tool has a free speed of 5,000 RPM and operates at 700 impacts per minute.
• Q: Why does the 285B use a D-handle and side handle?
  A: These gripping points help the operator support and control the 20.2 lb tool during demanding high-torque fastening and removal work.
• Q: What air supply specifications should be considered for the 285B?
  A: The catalog specifies a 1/2" air inlet, a minimum 1/2" (13 mm) hose size, and 90 PSI (6.2 bar) operating pressure. Air consumption is listed at 10 CFM (283 L/min) average and 40 CFM (1,133 L/min) at load.
• Q: What type of impact mechanism does the 285B use?
  A: The 285B uses a rocking-dog impact mechanism, which transfers repeated rotational impacts through the square drive for high-torque fastening and removal.

Looking for more information about the Ingersoll Rand Air Impact Wrench? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Impact Wrenches, please call (800) 608-5210 or email info@intlairtool.com
