Ingersoll Rand 2171P Maintenance Duty Impact Wrench | 1" Drive Size | 6000 RPM | 1250 (ft-lbs) Max Torque Range

Built for fleet maintenance, heavy equipment service, truck repair, and industrial MRO operations, the Ingersoll Rand 2171P Maintenance Duty Impact Wrench delivers 1,250 ft-lbs of maximum torque for removing stubborn fasteners while operating at a 6,000 RPM free speed for efficient bolt run-down. Featuring a 1-inch square drive, this pneumatic impact wrench is well suited for large sockets used in heavy-duty vehicle and industrial maintenance. Its jumbo hammer mechanism (a high-energy impact system designed to deliver strong, consistent blows for demanding fastening tasks) provides dependable power for routine maintenance and repair work.

The 2171P combines a durable steel hammer case with a pistol grip configuration for familiar handling and includes a thru-hole anvil for secure socket retention. With a working torque range of 300–1,000 ft-lbs, it is suitable for repetitive fastening applications on commercial vehicles, construction equipment, and industrial machinery where dependable performance is required without stepping up to a super-duty impact wrench.

Type: Pneumatic Impact Wrench | Series: 2100 Maintenance-Duty Series | Drive Size: 1" Square | Actuation: Trigger | Anvil: Thru-Hole | Handle: Pistol Grip | Impact Mechanism: Jumbo Hammer | Free Speed: 6,000 RPM | Blows Per Minute: 1,025 BPM | Working Torque: 300–1,000 ft-lbs | Maximum Torque: 1,250 ft-lbs | Length: 8.9" | Weight: 12.32 lbs | Air Inlet: 3/8" NPT | Average Air Consumption: 46 CFM | Vibration: 11.5 m/s²

Features:

• Jumbo hammer mechanism delivers consistent high-impact energy for demanding fastening applications.
• Steel hammer case provides durability for frequent maintenance use.
• 1-inch square drive with thru-hole anvil offers secure socket retention during high-torque operation.
• Pistol grip configuration provides familiar handling for maintenance technicians.
• 6,000 RPM free speed supports faster bolt run-down between tightening cycles.
• 3/8-inch NPT air inlet integrates easily with common industrial air systems.

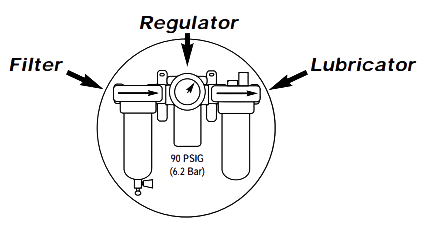

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Removing and installing wheel fasteners on heavy trucks, buses, and commercial vehicles.
• Routine maintenance of construction and agricultural equipment.
• Industrial plant maintenance involving large bolts and mechanical assemblies.
• Fleet maintenance facilities servicing trailers and vocational vehicles.
• General repair work on heavy machinery and production equipment.

FAQs:

• Q: Is the 1,250 ft-lbs rating the working torque?
  A: No. The maximum torque is 1,250 ft-lbs. The recommended working torque range is 300–1,000 ft-lbs for controlled fastening applications. :contentReference[oaicite:2]{index=2}
• Q: What type of sockets does this impact wrench use?
  A: The 2171P uses 1-inch square-drive impact sockets with a thru-hole retention system.
• Q: What is the advantage of the jumbo hammer mechanism?
  A: The jumbo hammer mechanism delivers strong, consistent impact energy for demanding maintenance applications while maintaining dependable durability.
• Q: Is this tool intended for continuous production use?
  A: The manufacturer classifies the 2171P as a maintenance-duty impact wrench, making it suitable for frequent maintenance and repair applications rather than the most demanding continuous production environments.

Ingersoll Rand 2171P Impact Wrench Parts List

Looking for more information about Ingersoll Rand Impact Wrench? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Impact Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
