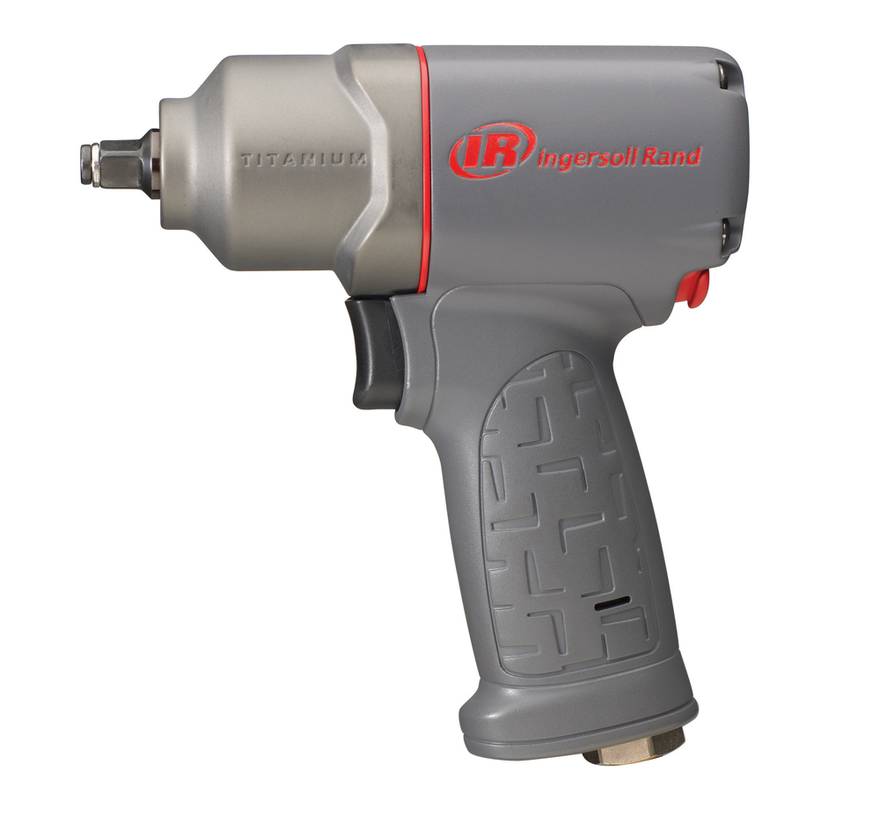

Ingersoll Rand 2115TiMAX Impact Wrench | 3/8" Drive Size | 15000 RPM | 300 ft-lbs Max Torque

When automotive repair work requires access to fasteners in crowded engine compartments and closely spaced mechanical assemblies, the Ingersoll Rand 2115TiMAX Pneumatic Impact Wrench offers powerful fastening performance in a compact pistol-grip design. Featuring a 3/8-inch square drive, 15,000 RPM maximum free speed, and 300 ft-lbs (407 Nm) maximum reverse torque, this air impact wrench is designed for efficient bolt removal and installation. It also delivers 250 ft-lbs (339 Nm) maximum forward torque, making it suitable for a range of vehicle repair, equipment maintenance, and mechanical assembly tasks. The friction-ring anvil provides convenient socket retention, while its compact dimensions help operators reach fasteners where larger impact wrenches may be difficult to position.

The 2115TiMAX combines a titanium hammer case with a composite housing for durability without unnecessary tool weight. Its finely tuned twin-hammer mechanism delivers repeated rotational impacts, while the seven-vane air motor supports efficient power delivery. A feather-touch trigger provides responsive control during fastener rundown, and Ingersoll Rand's patented one-hand forward/reverse control simplifies direction changes. At just 2.48 lbs (1.12 kg) and approximately 6 inches (152 mm) long, the wrench is designed for maneuverability during repeated service operations. An accessible grease fitting also helps simplify routine impact-mechanism maintenance.

Type: Pneumatic Impact Wrench | Manufacturer: Ingersoll Rand | Model: 2115TiMAX | Configuration: Pistol Grip | Actuation: Trigger | Drive Size: 3/8" | Drive Type: Square, Friction Ring | Impact Mechanism: Twin Hammer | Motor: 7-Vane | Maximum Forward Torque: 250 ft-lbs (339 Nm) | Maximum Reverse Torque: 300 ft-lbs (407 Nm) | Recommended Forward Torque Range: 25–230 ft-lbs | Maximum Free Speed: 15,000 RPM | Blows Per Minute: 1,500 | Tool Weight: 2.48 lbs (1.12 kg) | Overall Length: 6" (152 mm) | Air Inlet: 1/4" NPT | Minimum Hose Size: 3/8" | Air Consumption at Load: 17 CFM | Average Air Consumption: 4 CFM | Operating Pressure: 90 PSI (6.2 bar) | Impacting Sound Pressure: 96.6 dB(A) | Vibration Level: 7.8 m/s² (K = 1.8 m/s²)

Features:

• Compact 3/8-inch square-drive configuration helps technicians work with compatible fasteners in restricted mechanical spaces.
• 300 ft-lbs maximum reverse torque provides loosening capability for suitable resistant bolts and nuts.
• 250 ft-lbs maximum forward torque supports powered installation of threaded fasteners within the tool's operating capabilities.
• 15,000 RPM maximum free speed allows rapid fastener rundown and removal.
• Finely tuned twin-hammer mechanism delivers repeated rotational impacts for fastening and loosening.
• Seven-vane air motor provides efficient power delivery in a lightweight tool configuration.
• Titanium hammer case and composite housing help protect internal components during workshop use.
• Feather-touch trigger offers responsive control when engaging fasteners or adjusting rundown speed.
• Patented one-hand forward/reverse control allows convenient direction changes without substantially repositioning the tool.
• Friction-ring socket retention supports secure installation and convenient replacement of compatible impact sockets.
• Accessible grease fitting and anodized end plate support routine maintenance and mechanism durability.

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Automotive engine service – removing and installing suitable fasteners on brackets, accessories, and mechanical components.
• Collision repair and body shops – supporting vehicle disassembly and reassembly where compact impact-wrench access is beneficial.
• Fleet maintenance – performing repeated fastening operations on compatible vehicle components.
• Industrial maintenance and MRO – servicing machinery and equipment using 3/8-inch drive impact sockets.
• Mechanical assembly and refurbishment – handling suitable threaded connections during equipment repair and component replacement.

FAQs:

• Q: What is the maximum torque of the Ingersoll Rand 2115TiMAX? A: The manufacturer specifies 300 ft-lbs maximum reverse torque and 250 ft-lbs maximum forward torque. The recommended forward operating range is 25–230 ft-lbs. These figures describe different operating conditions and should not be treated as calibrated final-tightening settings.
• Q: What is the difference between the 2115TiMAX and 2115QTiMAX? A: Both models use a 3/8-inch square friction-ring drive and share the same published torque, free-speed, weight, and length specifications. The 2115QTiMAX is the quieter configuration, with lower manufacturer-published sound measurements.
• Q: Does the 2115TiMAX use pin or friction-ring socket retention? A: The 2115TiMAX uses friction-ring retention, which holds a compatible impact socket on the square anvil. The related 2115PTiMAX uses a pin-retainer configuration for buyers who require that socket attachment method.
• Q: What compressed-air supply does the 2115TiMAX require? A: Ingersoll Rand specifies a 1/4-inch NPT air inlet, minimum 3/8-inch hose, and 90 PSI operating pressure. Published air consumption is 17 CFM at load and 4 CFM average. The supply system must maintain adequate airflow and pressure at the tool during use.
• Q: Can this wrench be used for precise final tightening? A: It can install suitable threaded fasteners, but the impact mechanism does not provide calibrated torque control. Use an appropriate calibrated torque wrench or approved fastening procedure whenever a final torque specification must be met.
