Built for precision fastening on production lines and assembly workstations, the Ingersoll Rand 1RTMS1 pneumatic pistol grip air screwdriver combines a 1,650 RPM free speed with an adjustable shut-off clutch and a 4.4–20.4 in-lbs torque range to deliver consistent fastening performance. The adjustable shut-off clutch (which automatically disengages once the preset torque is reached) helps reduce over-tightening and improves torque repeatability, making it well suited for applications where fastening consistency is essential. Its trigger and push-to-start actuation provides flexible operation for different production preferences while the pistol grip configuration offers familiar handling for repetitive fastening tasks.
Compact dimensions, a lightweight 1.5 lb design, and a coated grip help reduce fatigue during extended assembly cycles without sacrificing control. The 1/4" hex quick-change spindle allows rapid bit changes to minimize downtime, making the tool suitable for electronics, appliance manufacturing, automotive subassembly, and other light-to-medium torque fastening operations where repeatable results matter.
Type: Pneumatic Pistol Grip Air Screwdriver | Series: 1 Series | Clutch Type: Adjustable Shut-Off Clutch | Actuation: Trigger + Push-to-Start | Torque Range: 4.4–20.4 in-lbs (0.5–2.3 Nm) | Free Speed: 1,650 RPM | Drive Type: 1/4" Hex Quick Change | Weight: 1.5 lb (0.7 kg) | Length: 8.5 in. (217 mm) | Side to Center: 0.7 in. (17 mm) | Air Consumption: 13 CFM (368 L/min) | Air Inlet: 1/8" NPT | Minimum Hose Size: 1/4 in. (6 mm) | Sound Level: 73 dBA
|
Features:
|
|
Made in USA:
Applications:
- Electronics manufacturing for controlled low-torque screw installation.
- Automotive component assembly where repeatable fastening torque is required.
- Appliance production lines performing repetitive screwdriving operations.
- General industrial assembly stations handling light- to medium-duty fastening.
- Production environments requiring consistent torque quality and efficient bit changes.
FAQs:

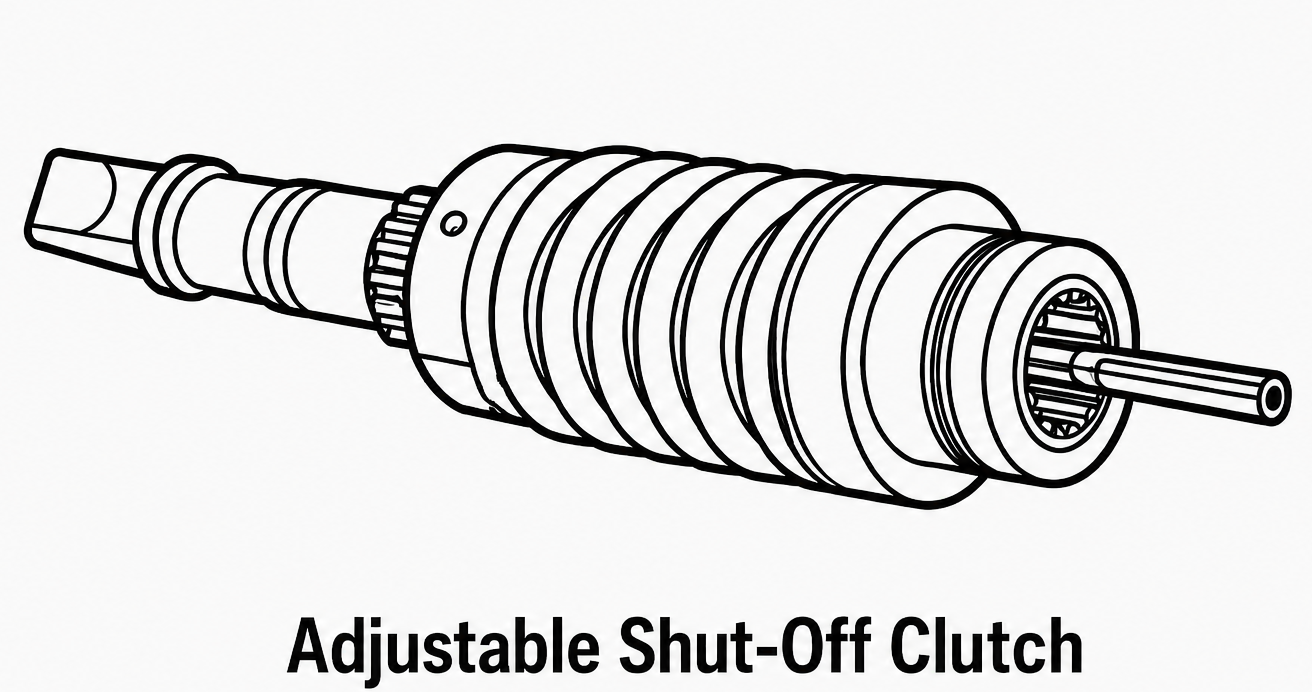

- Q: What is an adjustable shut-off clutch?
A: It automatically disengages the drive once the preset torque is reached, helping improve torque consistency and reducing the chance of over-tightening fasteners. - Q: What type of bits does this screwdriver accept?
A: The 1RTMS1 uses a 1/4-inch hex quick-change spindle, allowing compatible screwdriver bits to be changed quickly. - Q: What applications is this screwdriver intended for?
A: It is suited for precision fastening in electronics, appliance, automotive, and general industrial assembly where controlled torque is important. - Q: What is the benefit of the trigger and push-to-start configuration?
A: The dual actuation method gives operators flexibility to use either trigger activation or push-to-start operation, depending on workstation setup and assembly preference.
| SKU | in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN | CFM (L/MIN) |
|---|---|---|---|---|---|---|---|---|---|
| 1RTMS1 | 4.4 – 15.9 (0.5 – 1.8) | 6.2 – 20.4 (0.7 – 2.3) | – | 1,650 | 1.5 (0.7) | 8.5" (217) | 0.7" (17) | 1/4" | 13 (368) |
| 1RTNS1 | 2.7 – 15.9 (0.3 – 1.8) | 4.4 – 23.0 (0.5 – 2.6) | 9.7 – 30.1 (1.1 – 3.4) | 1,000 | 1.5 (0.7) | 8.5" (217) | 0.7" (17) | 1/4" | 13 (368) |
| 1RTQS1 | 2.7 – 15.9 (0.3 – 1.8) | 4.4 – 23.0 (0.5 – 2.6) | 9.7 – 45.1 (1.1 – 5.1) | 500 | 1.5 (0.7) | 8.7" (222) | 0.7" (17) | 1/4" | 13 (368) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Screwdrivers for your assembly application, please email info@intlairtool.com or call (800) 608-5210
