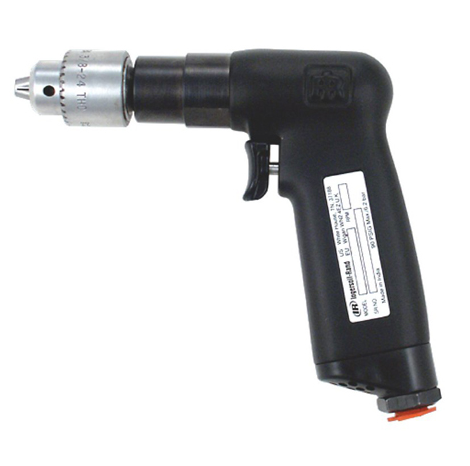

Ingersoll Rand 1P06ST4 Pneumatic Air Drill | Pistol Grip | 0.19 HP | 600 RPM | 100 (in-lbs) Max Torque | Trigger-Start

For production drilling, small-hole preparation, and precision assembly work, the Ingersoll Rand 1P06ST4 Pistol Grip Air Drill delivers controlled pneumatic drilling performance in a compact, lightweight configuration. Part of the manufacturer's 1 Series, this drill operates at a 600 RPM free speed, providing a slower-speed option for drilling operations where controlled bit engagement and steady feed are important. Its 1/4-inch (6 mm) chuck capacity accommodates compatible drill bit shanks, while the variable-speed trigger allows operators to start holes gradually and increase rotational speed as needed. The non-reversible drive configuration is suited to forward drilling tasks in manufacturing, fabrication, and assembly environments where a compact pneumatic drill is preferred over larger power tools.

The Ingersoll Rand 1P06ST4 combines a well-balanced pistol-grip design with double-row ball bearing construction, which supports accurate spindle rotation and helps produce concentric holes (holes centered consistently around the drill's rotational axis). Measuring 6.75 inches (172 mm) in overall length with chuck and weighing approximately 1.5 lbs (0.68 kg), this drill is convenient to maneuver around fixtures, workbenches, and closely positioned assemblies. Its 1/4-inch NPT air inlet and manufacturer-listed 11 CFM air consumption provide important considerations when planning the compressed-air supply. With its variable-speed control, compact dimensions, and 600 RPM configuration, the 1P06ST4 offers a practical drilling solution for workshops and production stations requiring consistent hole-making operations.

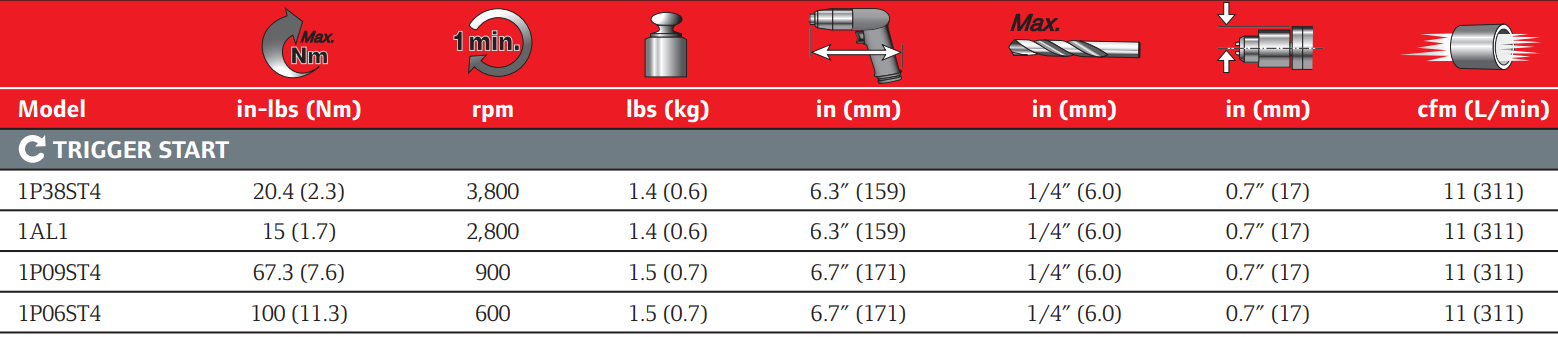

Type: Pistol Grip Air Drill | Series: 1 Series | Model: 1P06ST4 | Configuration: Pistol Grip | Actuation: Trigger Start | Reversible: No | Free Speed: 600 RPM | Chuck Capacity: 1/4" (6 mm) | Speed Control: Variable Speed | Length With Chuck: 6.75" (172 mm) | Weight: 1.5 lbs (0.68 kg) | Air Inlet: 1/4" NPT | Air Consumption: 11 CFM | Sound Pressure: 71.9 dB(A) | Sound Power: 82.9 dB(A) | Vibration Level: <2.5 m/s² | Bearing Construction: Double-Row Ball Bearings

Features:

• 600 RPM free speed provides a controlled drilling option for small-hole production and assembly applications.
• 1/4-inch chuck capacity accommodates compatible drill bit shanks for suitable drilling operations.
• Variable-speed trigger allows gradual starting and speed adjustment for improved control when positioning the drill bit.
• Double-row ball bearing construction supports precise spindle rotation and accurate, concentric hole formation.
• Compact pistol-grip configuration provides convenient handling around fixtures, workstations, and closely positioned components.
• Lightweight 1.5 lb construction reduces the amount of tool weight operators must support during repetitive drilling tasks.
• Well-balanced design supports controlled drill positioning during production and maintenance work.
• Non-reversible operation provides a straightforward forward-drilling configuration for applications that do not require reverse rotation.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator (FRL)

Made in USA:

Applications:

• Industrial production drilling: Creating small-diameter holes in suitable workpieces during repetitive manufacturing operations.
• Mechanical assembly: Drilling pilot holes and preparing components before fastening or assembly.
• Metal fabrication workshops: Performing controlled drilling operations on suitable metal components using appropriately selected drill bits.
• Maintenance and MRO: Preparing replacement components and drilling holes during machinery maintenance and repair.
• Fixture and workbench operations: Completing hole-making tasks in confined workstation layouts where compact drill dimensions are beneficial.

FAQs:

• Q: What is the Ingersoll Rand 1P06ST4 air drill used for?
  A: The 1P06ST4 is a pistol-grip pneumatic drill used for small-hole drilling, production assembly, and general workshop hole preparation. Its 600 RPM free speed and variable-speed trigger provide control when starting and drilling suitable materials.
• Q: What size drill bits can the 1P06ST4 accept?
  A: The manufacturer specifies a 1/4-inch (6 mm) chuck capacity. Select drill bits with shanks compatible with that capacity. The chuck size describes the maximum shank diameter the chuck can hold, not a guaranteed maximum hole diameter in every material.
• Q: Is the Ingersoll Rand 1P06ST4 reversible?
  A: No. Ingersoll Rand identifies the 1P06ST4 as a non-reversible, trigger-start drill. It is intended for forward drilling operations. Buyers needing reverse rotation should select a drill model specifically equipped with that capability.
• Q: How much compressed air does the 1P06ST4 require?
  A: The manufacturer lists 11 CFM air consumption and a 1/4-inch NPT air inlet. The compressor, regulator, fittings, and air supply line should be sized to deliver sufficient airflow at the operating pressure required by the tool. Confirm the duty cycle and applicable pressure specifications before selecting the air system.
• Q: How does the 1P06ST4 differ from the 1P09ST4?
  A: Both drills belong to the Ingersoll Rand 1 Series and feature a 1/4-inch chuck, trigger-start operation, and non-reversible drive. The 1P06ST4 operates at 600 RPM, while the 1P09ST4 operates at 900 RPM. The 1P06ST4 provides a slower-speed option for drilling tasks where controlled rotation is preferred.

Looking for more information about the Ingersoll Rand Turbine Grinder? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
