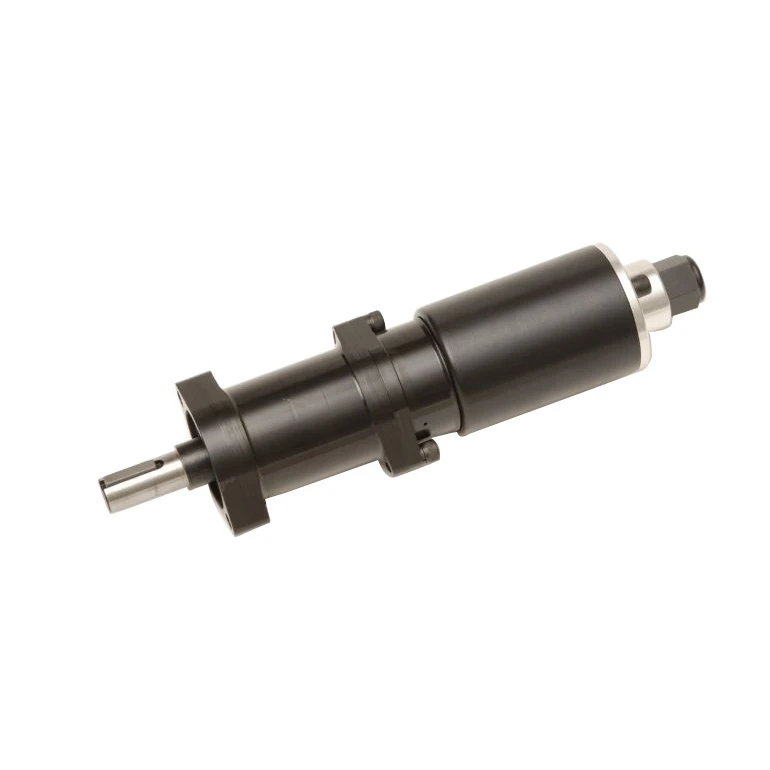

Ingersoll Rand 1841W Reversible Multi-Vane Air Motor is engineered to provide dependable pneumatic rotary power for industrial applications requiring substantial output torque, controlled low-speed operation, and bidirectional capability. Delivering 1.10 HP with a free speed of 320 RPM, this 1841 Series air motor features a durable multi-vane design that produces smooth, continuous power delivery for demanding industrial environments. Its reversible configuration enables clockwise and counterclockwise rotation, making it well suited for OEM machinery, conveyors, indexing equipment, material handling systems, industrial processing machinery, and other compressed-air powered applications requiring flexible directional control.
The 1841W develops a 45.0 lb-ft starting torque, providing strong breakaway force for starting heavily loaded equipment, and a 60.0 lb-ft stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. This combination of lower operating speed, dependable horsepower, and increased torque makes the motor ideal for demanding industrial applications requiring reliable pneumatic performance and smooth reversing capability.
Type: Multi-Vane Air Motor | Series: 1841 Series | Model: 1841W | Rotation: Reversible | Power: 1.10 HP | Free Speed: 320 RPM | Starting Torque: 45.0 lb-ft | Stall Torque: 60.0 lb-ft
Features:
- Multi-vane air motor design delivers smooth, dependable pneumatic rotary power.
- Reversible configuration provides reliable clockwise and counterclockwise operation.
- 1.10 HP output supports demanding industrial pneumatic drive applications.
- 320 RPM free speed is ideal for applications requiring controlled low-speed operation with increased output torque.
- 45.0 lb-ft starting torque helps overcome heavy startup loads efficiently.
- 60.0 lb-ft stall torque provides a manufacturer-published reference for evaluating maximum torque capability.
- Compact motor design integrates easily into OEM machinery and industrial equipment.
- Compressed-air operation eliminates the need for electrical power at the motor, making it suitable for facilities utilizing centralized pneumatic systems.
Made in USA:
Applications:
- OEM machinery requiring reversible pneumatic rotary power.
- Industrial conveyors, indexing equipment, and positioning systems.
- Material handling and processing equipment.
- Packaging and production machinery.
- Replacement applications where the published motor specifications match the original equipment.
FAQs:
- Q: Is the Ingersoll Rand 1841W reversible?
A: Yes. This model is designed to operate in both clockwise and counterclockwise directions for applications requiring bidirectional shaft rotation. - Q: What is a multi-vane air motor?
A: A multi-vane air motor uses sliding vanes inside a rotor to convert compressed air into smooth, continuous rotary motion with consistent power delivery. - Q: What is the rated free speed?
A: The manufacturer specifies a free speed of 320 RPM. - Q: What is the difference between starting torque and stall torque?
A: Starting torque is the torque available to begin rotating a load from rest, while stall torque is the maximum torque the motor develops when the output shaft is prevented from rotating. - Q: What should be verified before installation?
A: Confirm horsepower, free speed, rotation direction, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.
| SKU | Max. Power | Speed at Max. Power rpm |
Free Speed rpm |
Starting Torque | Stall Torque | Air Consumption at Max. Power | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| hp | kw | lb-ft | Nm | lb-ft | Nm | scfm | m³/m | lb | kg | |||
| NON-REVERSIBLE Direction of rotation is counterclockwise when facing the shaft. | ||||||||||||
| 1801N | 1.40 | 1.04 | 918 | 1990 | 10.5 | 14.2 | 14 | 19.0 | 46 | 1.3 | 5 3/8 | 2.44 |
| 1801P | 1.35 | 1.01 | 500 | 1050 | 17.2 | 23.3 | 23 | 31.2 | 46 | 1.3 | 5 3/4 | 2.61 |
| 1801Q | 1.35 | 1.01 | 300 | 650 | 30.0 | 40.7 | 40 | 54.2 | 46 | 1.3 | 5 3/4 | 2.61 |
| 1801U | 1.35 | 1.01 | 205 | 435 | 41.0 | 55.6 | 55 | 74.6 | 46 | 1.3 | 5 3/4 | 2.61 |
| 1801W | 1.35 | 1.01 | 175 | 370 | 52.0 | 70.5 | 70 | 94.9 | 46 | 1.3 | 5 3/4 | 2.61 |
| REVERSIBLE Direction of rotation is counterclockwise when facing the shaft. | ||||||||||||
| 1841N | 1.2 | 0.89 | 800 | 1,700 | 9.3 | 12.6 | 12.5 | 17.0 | 43 | 1.22 | 5 1/2 | 2.50 |
| 1841P | 1.1 | 0.82 | 430 | 900 | 15.0 | 20.3 | 20.0 | 27.1 | 43 | 1.22 | 5 7/8 | 2.67 |
| 1841Q | 1.1 | 0.82 | 260 | 550 | 27.0 | 36.6 | 36.0 | 48.8 | 43 | 1.22 | 5 7/8 | 2.67 |
| 1841U | 1.1 | 0.82 | 175 | 380 | 37.0 | 50.2 | 50.0 | 67.8 | 43 | 1.22 | 5 7/8 | 2.67 |
| 1841W | 1.1 | 0.82 | 150 | 320 | 45.0 | 61.0 | 60.0 | 81.4 | 43 | 1.22 | 5 7/8 | 2.67 |
Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
