Ingersoll Rand 130A1M Bench Sand Rammer | 2.5" Stroke | 870 BPM | 1" Bore

Built for foundry molding operations where consistent sand compaction is essential, the Ingersoll Rand 130A1M Air Percussive Bench Sand Rammer delivers 870 blows per minute (BPM) with a 2.5-inch piston stroke and 1-inch bore to create uniform, densely packed molds. The rapid impact rate helps improve mold consistency while reducing the manual effort required during repetitive bench-level ramming operations. Its compact design is well suited for workstations where maneuverability and controlled impact are important for producing accurate casting molds.

The 130A1M incorporates a time-tested valve design (a proven pneumatic valve system that delivers dependable reciprocating action), a plated piston, and a dual-action sand wiper that helps prevent dirt and abrasive grit from entering the cylinder. A built-in lubricator supports smooth internal operation, while the integrated muffler and side exhaust contribute to a cleaner, quieter working environment. These features make the tool a practical solution for foundries and molding facilities that require reliable pneumatic compaction throughout daily production.

Type: Bench Sand Rammer | Model: 130A1M | Blows Per Minute: 870 BPM | Stroke Length: 2.5 in. (63 mm) | Bore: 1 in. (25 mm) | Air Consumption: 14 CFM | Butt Diameter: 2.5 in. | Air Inlet: 1/4 in. NPT | Recommended Hose Size: 3/8 in. | Length: 21.5 in. | Weight: 11.56 lb

Features:

• Produces 870 blows per minute for rapid, consistent sand compaction in foundry molds.
• 2.5-inch piston stroke and 1-inch bore provide effective impact energy for bench-level molding work.
• Built-in lubricator helps maintain smooth internal operation during continuous pneumatic use.
• Time-tested valve design delivers dependable reciprocating performance in production environments.
• Dual-action sand wiper helps keep dirt and abrasive particles out of the barrel to reduce internal wear.
• Plated piston improves resistance to wear in demanding foundry conditions.
• Built-in muffler and side exhaust help reduce operating noise while directing exhaust away from the work area.
• Compact, lightweight configuration allows easier handling around small molds and confined bench workspaces.

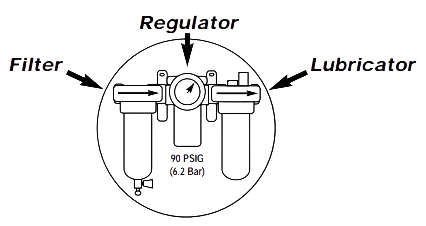

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Compacting molding sand in bench-height foundry molds and casting patterns.
• Producing consistent mold density for aluminum, iron, steel, and non-ferrous casting operations.
• Pattern shop work requiring controlled pneumatic ramming in confined work areas.
• Foundry maintenance departments performing mold preparation and repair.
• Educational foundries and prototype casting facilities requiring repeatable bench-level sand compaction.

FAQs:

• Q: What is the 130A1M primarily used for?
  A: It is designed for compacting molding sand in bench-level foundry molds and patterns to help produce uniform, high-quality castings.
• Q: What does the 2.5-inch stroke provide?
  A: The 2.5-inch piston stroke delivers controlled impact energy that efficiently compacts molding sand while maintaining good control during bench work.
• Q: Why is the dual-action sand wiper important?
  A: It helps prevent dirt and abrasive grit from entering the barrel, reducing internal wear and supporting reliable long-term operation.
• Q: What air supply is recommended?
  A: The tool uses a 1/4-inch NPT air inlet, a recommended 3/8-inch air hose, and consumes approximately 14 CFM under load.
