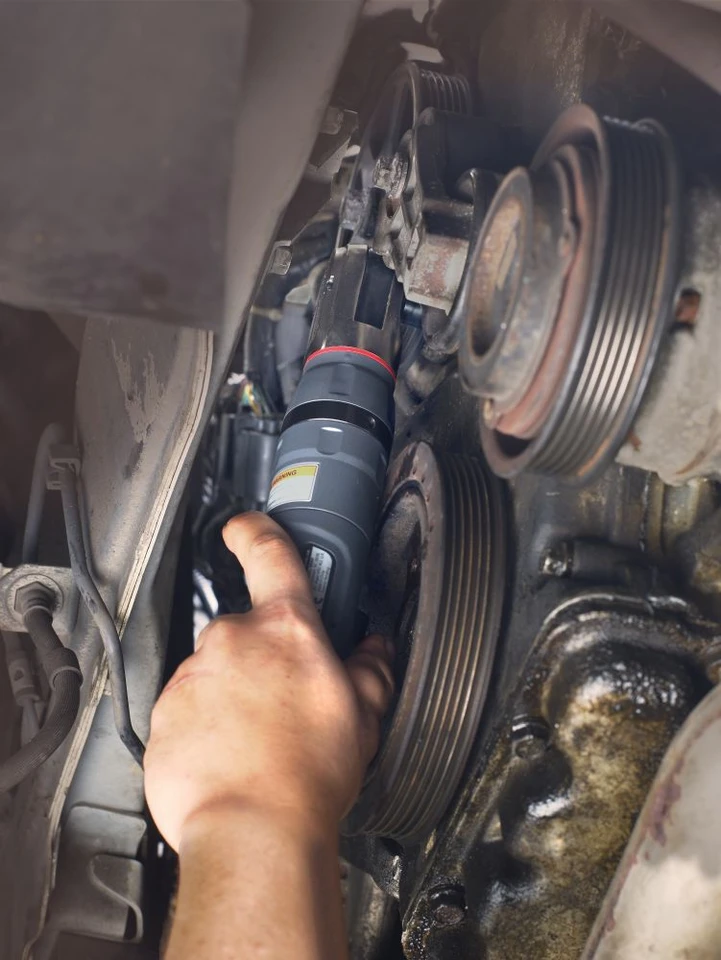

Ingersoll Rand 1207MAX-D3 Premium Air Ratchet Wrench | 3/8" Square Drive | 200 RPM | 65 (ft-lbs) Max Torque

Ingersoll Rand 1207MAX-D3 Premium Air Ratchet Wrench is designed for automotive technicians and maintenance professionals who need dependable pneumatic fastening performance in restricted work areas. Featuring a 3/8" square drive, the tool delivers up to 65 ft-lbs (88 Nm) of maximum torque with a 220 RPM free speed, helping operators install and remove threaded fasteners efficiently during repair and service work.

Part of the Ingersoll Rand 1207MAX Series, this ratchet combines a reinforced, heat-treated head with a nickel-plated housing for enhanced durability and corrosion resistance. Its variable-speed lever allows controlled operation, while the 10–60 ft-lbs (14–81 Nm) recommended torque range helps buyers match the tool to appropriate fastening requirements. Weighing 3.14 lb (1.42 kg), the 1207MAX-D3 is designed to provide greater comfort during extended daily use.

Type: Premium Air Ratchet Wrench | Series: 1207MAX Series | Model: 1207MAX-D3 | Drive Size: 3/8" | Drive Type: Square | Actuation: Variable-Speed Lever | Maximum Torque: 65 ft-lbs (88 Nm) | Recommended Torque Range: 10–60 ft-lbs (14–81 Nm) | Free Speed: 220 RPM | Weight: 3.14 lb (1.42 kg) | Length: 10.8" (275 mm) | Average Air Consumption: 4 CFM (113 L/min) | Free Speed Air Consumption: 23 CFM (651 L/min) | Free Speed Sound Level: 85 dBA | Vibration Level: 3.2 m/s² (K: 1.1) | Air Inlet: 1/4" NPTF | Minimum Hose Size: 3/8" (10 mm)

Features:

• Reinforced, heat-treated ratchet head provides durability for frequent fastening and removal work.
• Nickel-plated housing enhances corrosion resistance when the tool is exposed to demanding workshop conditions.
• 3/8" square drive accommodates compatible sockets commonly used in automotive repair and equipment maintenance.
• Variable-speed lever allows operators to regulate tool speed when starting, installing, or removing threaded fasteners.
• 220 RPM free speed helps reduce time spent running fasteners compared with manual ratcheting.
• 1207MAX Series design emphasizes operator comfort during extended daily use.
• Compact 10.8" overall length helps technicians position the ratchet around closely spaced components.
• 65 ft-lbs maximum torque provides powered fastening capability for applications within the manufacturer's recommended operating range.

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Automotive repair and maintenance involving threaded fasteners in confined engine compartments and vehicle assemblies.
• Routine equipment servicing where a 3/8" drive pneumatic ratchet provides convenient access.
• Workshop assembly and disassembly tasks requiring controlled, repetitive fastener operation.
• Maintenance and repair work where the tool's recommended torque range and socket drive size match the application.

FAQs:

• Q: What is the maximum torque of the Ingersoll Rand 1207MAX-D3?
  A: The ratchet delivers up to 65 ft-lbs (88 Nm) of maximum torque. Its manufacturer-recommended torque range is 10–60 ft-lbs (14–81 Nm).
• Q: What drive size does the 1207MAX-D3 use?
  A: It uses a 3/8" square drive. The related 1207MAX-D4 model uses a 1/2" square drive.
• Q: How fast does the 1207MAX-D3 operate?
  A: Ingersoll Rand specifies a free speed of 220 RPM, with a variable-speed lever for operator control.
• Q: What makes the 1207MAX Series suitable for demanding shop conditions?
  A: The series features a reinforced, heat-treated head and nickel-plated housing designed to improve durability and corrosion resistance.
• Q: What air supply specifications should be considered?
  A: The manufacturer specifies a 1/4" NPTF air inlet and a minimum 3/8" (10 mm) hose size. Average air consumption is 4 CFM (113 L/min), while free-speed consumption is 23 CFM (651 L/min).
• Q: How does the 1207MAX-D3 differ from the 1207MAX-D4?
  A: The primary difference is the square drive size: 3/8" for the D3 and 1/2" for the D4. Both are rated at 65 ft-lbs maximum torque and 220 RPM free speed.

Looking for more information about Ingersoll Rand Ratchet Wrench? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Ratchet Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
