Ingersoll Rand 11118907 ARO Series Air Chain Hoist | 7756E-2C10-C6U | 1/2 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

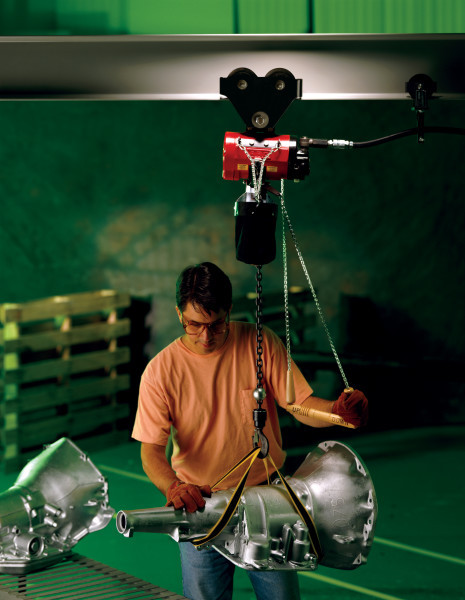

Built for dependable overhead lifting in manufacturing facilities, maintenance departments, assembly operations, and industrial workstations, the Ingersoll Rand 11118907 ARO Series Air Chain Hoist is configured as Model 7756E-2C10-C6U and delivers a 1,100 lb (0.50 Metric Ton) lifting capacity with a 10 ft lift and 6 ft Pendent drop. Powered by compressed air, this pneumatic chain hoist provides smooth, reliable lifting without requiring electrical power, making it an excellent choice for repetitive material handling applications. Its compact design and responsive controls help improve productivity while providing precise load positioning.

The 7756E Series utilizes a planetary gear transmission for efficient power transfer and a self-adjusting, spring-applied, air-released disc brake that securely holds suspended loads whenever the air supply is interrupted. Equipped with a steel snap hook and Pendent control, this hoist delivers dependable lifting performance for machinery, tooling, fixtures, and production components while its modular construction simplifies maintenance and reduces downtime.

Type: Air Chain Hoist | Series: 7756E Series | Model: 7756E-2C10-C6U | SKU: 11118907 | Capacity: 1,100 lb (0.50 Metric Ton) | Lift: 10 ft | Pendent Drop: 6 ft | Control: Pendent Control | Bottom Hook: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 41 ft/min (12.5 m/min) | No-Load Lift Speed: 72 ft/min (22 m/min) | Rated Lowering Speed: 112 ft/min (34.1 m/min) | No-Load Lowering Speed: 60 ft/min (18.3 m/min) | Hook Mount Headroom: 17 in (431.8 mm) | Trolley Mount Headroom: 16.9 in (429.3 mm) | Chain Size: 0.25 x 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Net Weight (w/10 ft Lift): 41 lb (18.6 kg) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT | Sound Level: 85 dBA

Features:

• 1,100 lb (0.50 metric ton) lifting capacity for handling machinery, tools, fixtures, and production components.
• 100% duty cycle supports continuous lifting operations in demanding industrial environments.
• Planetary gear transmission provides smooth lifting performance with efficient power transfer.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads whenever air pressure is interrupted.

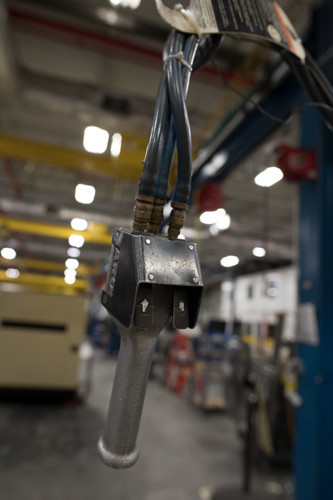

• Pendent control enables accurate lifting and lowering for precise load positioning.
• Steel snap hook provides a durable and secure attachment point for overhead lifting applications.
• Operates on 70–100 PSI (5–7 bar) compressed air systems.
• Compact modular construction simplifies maintenance and reduces service downtime.

Made in USA:

Applications:

• Assembly operations requiring repetitive overhead lifting of components and subassemblies.
• Manufacturing facilities handling tooling, fixtures, and production equipment.
• Maintenance departments servicing pumps, motors, valves, and industrial machinery.
• Material handling in fabrication shops and industrial workstations.
• General overhead lifting where compressed-air systems are available.

FAQs:

• Q: What is the lifting capacity of the Ingersoll Rand 11118907?
  A: SKU 11118907 is configured as model 7756E-2C10-C6U and is rated to lift 1,100 lb (0.50 metric ton).
• Q: What operating air pressure is required?
  A: The manufacturer specifies an operating pressure range of 70 to 100 PSI (5 to 7 bar).
• Q: How much compressed air does this hoist require?
  A: Air consumption at rated load is 70 CFM (1.98 m³/min).
• Q: What is the lifting speed?
  A: The rated lifting speed is 41 ft/min (12.5 m/min), while the no-load lifting speed is 72 ft/min (22 m/min).
• Q: What air connection is required?
  A: This hoist is equipped with a 1/2-inch NPT air inlet connection.

 Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog

Need more feet of chain or a longer Pendent hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
