Coxreels 1660-2824-E electric motor hybrid frame hose reel is engineered for demanding industrial hose management where powered rewind and extra-large hose capacity are required. As part of the 1600 Series, this reel accommodates a 1" hose with a 300 ft hose capacity and is rated for a maximum working pressure of 3000 PSI. Equipped with a 12V DC electric motor rewind system, it delivers efficient powered hose retrieval, reducing manual effort while improving productivity in oil and gas operations, construction, mining, agriculture, municipal services, and heavy industrial maintenance applications.
Supplied in a less hose configuration, the 1660-2824-E allows users to install a compatible hose assembly that matches their specific pressure, media, and connection requirements. Its hybrid frame construction provides strength and durability for demanding environments, while the open-frame design promotes smooth hose deployment and controlled rewind to help minimize hose twisting, abrasion, and tangling for extended hose service life.

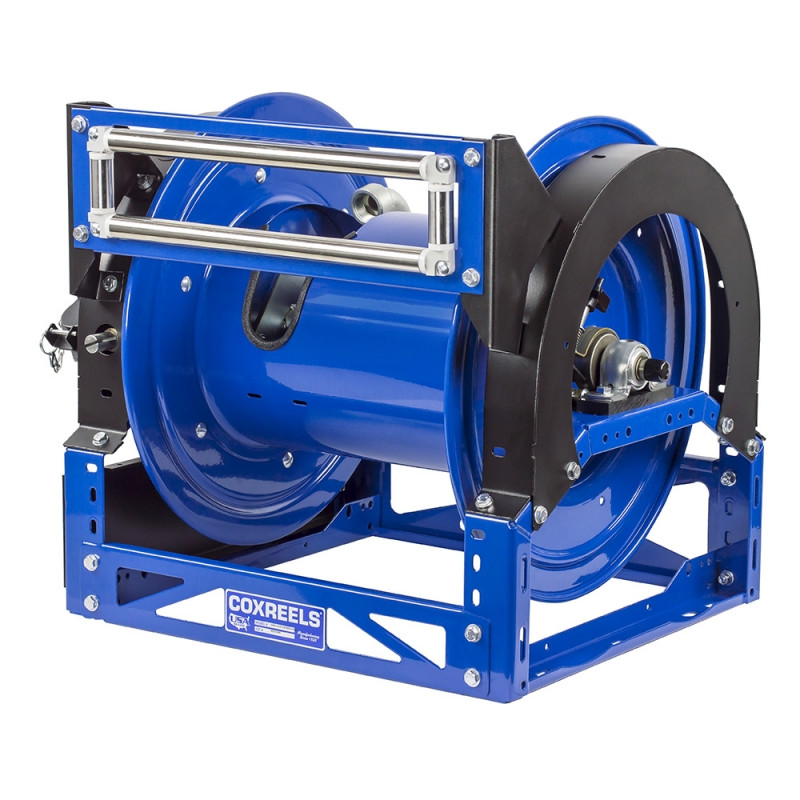

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Hybrid Frame Hose Reel | Series: 1600 Series | Configuration: Less Hose | Hose I.D.: 1" | Hose Capacity: 300 ft | Max Pressure: 3000 PSI | Motor: 12V DC Electric Motor
Features:
- 12V DC electric motor provides powered hose rewind for fast, efficient hose retrieval.
- Hybrid frame construction delivers strength and durability for demanding industrial applications.
- Designed to accommodate up to 300 feet of 1-inch hose.
- Rated for operating pressures up to 3000 PSI when used with compatible hose assemblies and fittings.
- Less hose configuration allows installation of a hose assembly selected for specific application requirements.
- Open-frame design promotes smooth hose payout while helping reduce hose twisting, kinking, and abrasion.
Made in USA:
Applications:
- Oil and gas production and service operations.
- Construction and heavy equipment maintenance.
- Mining and aggregate processing facilities.
- Agricultural equipment servicing and fluid transfer.
- Industrial plants, municipal utilities, and maintenance departments requiring high-capacity powered hose management.
FAQs:
- Q: What does "less hose" mean?
A: This reel is supplied without hose, allowing you to install a compatible hose assembly that matches your application's pressure, media, and fitting requirements. - Q: What powers the rewind system?
A: This model uses a 12V DC electric motor to provide powered hose rewind for efficient hose retrieval. - Q: What hose size and capacity is this reel designed for?
A: The reel is designed to accommodate up to 300 feet of 1-inch hose. - Q: Is this reel suitable for high-pressure applications?
A: Yes. The reel is rated for applications up to 3000 PSI when used with properly rated hose assemblies and compatible system components.
| LESS HOSE | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | HOSE CAP. 1" I.D. |
OPTIONAL HOSE CAP. 3/4" I.D. |
DIMENSIONS | APRX. LBS |
|||||||
| DW | L | W | H | X | Y | ||||||
| DRUM WIDTH |
DISC SIZE |
CRANK | ELEC. | AIR/ HYD. |
|||||||
| 1660-2824-A | 300' | 450' | 28" | 24" | 43-7/8" | 41-5/8" | 40-3/8" | 25-1/4" | 35" | 23-1/4" | 107 |
| 1660-2824-AB | 300' | 450' | 28" | 24" | 43-7/8" | 41-5/8" | 40-3/8" | 25-1/4" | 35" | 23-1/4" | 107 |
| 1660-2824-C | 300' | 450' | 28" | 24" | 43-7/8" | 41-5/8" | 40-3/8" | 25-1/4" | 35" | 23-1/4" | 107 |
| 1660-2824-E | 300' | 450' | 28" | 24" | 43-7/8" | 41-5/8" | 40-3/8" | 25-1/4" | 35" | 23-1/4" | 107 |
| 1660-2824-ED | 300' | 450' | 28" | 24" | 43-7/8" | 41-5/8" | 40-3/8" | 25-1/4" | 35" | 23-1/4" | 107 |
| 1660-2824-EF | 300' | 450' | 28" | 24" | 43-7/8" | 41-5/8" | 40-3/8" | 25-1/4" | 35" | 23-1/4" | 107 |
| 1660-2824-EB | 300' | 450' | 28" | 24" | 43-7/8" | 41-5/8" | 40-3/8" | 25-1/4" | 35" | 23-1/4" | 107 |
| 1660-2824-EA | 300' | 450' | 28" | 24" | 43-7/8" | 41-5/8" | 40-3/8" | 25-1/4" | 35" | 23-1/4" | 107 |
| 1660-2824-EJ | 300' | 450' | 28" | 24" | 43-7/8" | 41-5/8" | 40-3/8" | 25-1/4" | 35" | 23-1/4" | 107 |
| 1660-2824-H | 300' | 450' | 28" | 24" | 43-7/8" | 41-5/8" | 40-3/8" | 25-1/4" | 35" | 23-1/4" | 107 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Motor Hybrid Frame Hose Reel
- Series
- 1600 Series
- Hose Inside Diameter (in.)
- 1
- Hose Length (ft.)
- 300
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 3000
- Width (in.)
- 41.63
- Height (in.)
- 25.25
- Length (in.)
- 24
- Mounting Pattern (in.)
- 32.65M
- Mounting Pattern (in.)
- 18.5N
- Base (in.)
- 35X
- Base (in.)
- 23.25Y
