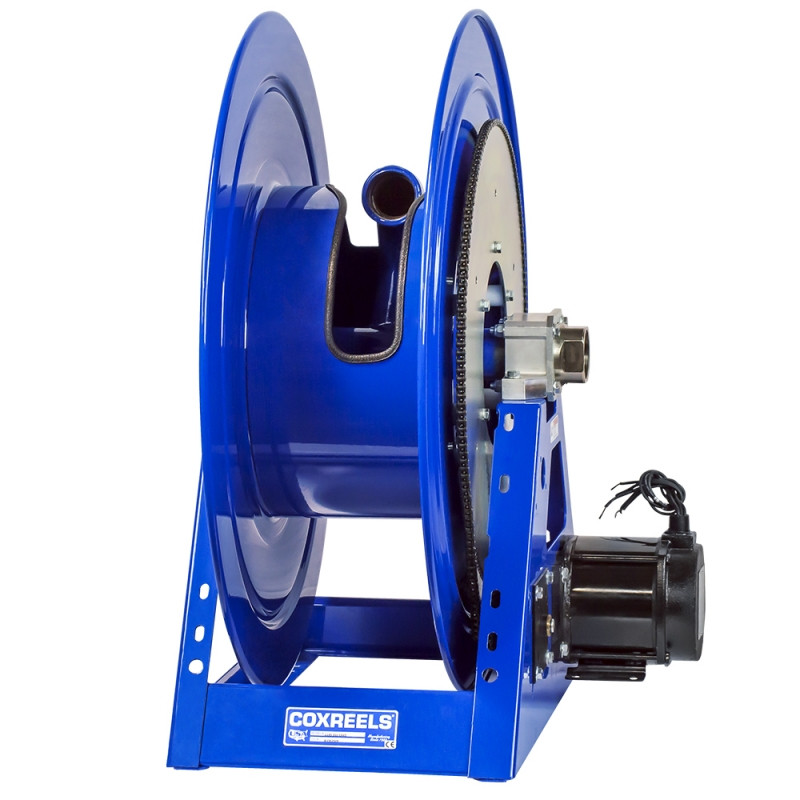

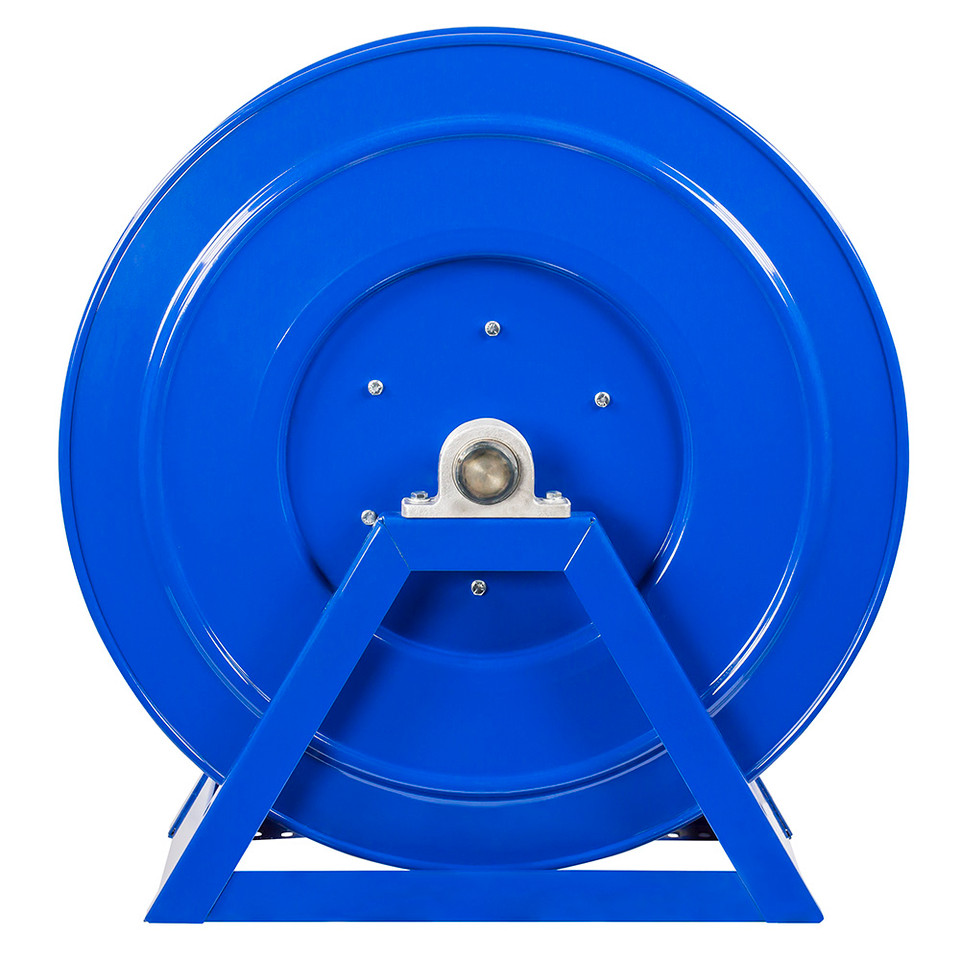

Coxreels 1195-932-EAV3 electric motor rewind hose reel is engineered for efficient handling of large-diameter hose in demanding industrial fluid transfer applications. As part of the 1195 Series, this reel accommodates a 2" hose with a 50 ft hose capacity and is rated for a maximum working pressure of 1000 PSI. Equipped with a 115V AC electric motor rewind system, it provides powered hose retrieval to minimize manual effort while improving productivity in petroleum transfer, chemical processing, construction, mining, municipal service, and industrial maintenance operations.
Supplied in a less hose configuration, the 1195-932-EAV3 allows users to install a compatible hose assembly that matches their application requirements for pressure, media, and fittings. Its heavy-duty open-frame construction promotes smooth hose payout and controlled rewind while helping reduce hose twisting, abrasion, and tangling for longer hose life and improved workplace organization.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1195 Series | Configuration: Less Hose | Hose I.D.: 2" | Hose Capacity: 50 ft | Max Pressure: 1000 PSI | Motor: 115V AC Electric Motor
Features:
- 115V AC electric motor provides powered hose rewind for fast and efficient hose retrieval.
- Designed to accommodate up to 50 feet of 2-inch hose.
- Rated for operating pressures up to 1000 PSI when used with compatible hose assemblies and fittings.
- Less hose configuration allows installation of a hose assembly selected for specific application requirements.
- Heavy-duty open-frame construction promotes smooth hose payout while helping reduce hose twisting and abrasion.
- 1195 Series construction delivers dependable hose management for demanding industrial fluid transfer applications.
Made in USA:
Applications:
- Industrial fluid transfer and process operations.
- Petroleum and fuel transfer systems.
- Chemical processing applications using compatible hose assemblies.
- Construction, mining, and heavy equipment service operations.
- Municipal, utility, and industrial maintenance facilities requiring powered hose management.
FAQs:
- Q: What does "less hose" mean?
A: This reel is supplied without hose, allowing you to install a compatible hose assembly that meets your application's pressure, media, and fitting requirements. - Q: What powers the rewind system?
A: This model features a 115V AC electric motor that provides powered hose retrieval for efficient operation and reduced manual handling. - Q: What hose size and capacity is this reel designed for?
A: The reel is designed to accommodate up to 50 feet of 2-inch hose. - Q: Is this reel suitable for high-pressure industrial applications?
A: Yes. The reel is rated for applications up to 1000 PSI when used with properly rated hose assemblies and compatible system components.
| LESS HOSE | SIZE INDEX |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL ASSEMBLY |
OUTLET RISER |
PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
STANDARD 1195 SERIES WITH IN-LINE SWIVEL
|
|||||||||||
| 1195-932-AB | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-C | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-EDV3 | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-EBV3 | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-EAV3 | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-EJV3 | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-H | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
