Coxreels 1175-6-100-SP Stainless Steel Hand Crank Hose Reel | 1175-SS Series | 1" Hose Diameter | 100' Hose Length | 3000 Max PSI | Less Hose

For facilities that need corrosion-resistant hose storage without dependence on an electrical or pneumatic power source, the Coxreels 1175-6-100-SP Stainless Steel Hand Crank Hose Reel provides straightforward manual retrieval in processing, washdown, marine, and chemical-handling environments. This 1175-SS Series reel accommodates up to 100 feet of 1-inch I.D. hose, giving operators extended working reach while keeping large-diameter hose organized between uses. Its 3,000 PSI maximum working pressure supports compatible medium-pressure systems when the separately purchased hose, fittings, and other fluid-path components are correctly rated.

A solid steel direct hand crank with a smooth round handle gives the operator positive control over hose retrieval, while an adjustable tension brake helps prevent unwanted free-wheeling during payout and rewind. The SP configuration features a standard unpolished, as-manufactured stainless steel finish. A machined stainless steel full-flow swivel, stainless steel outlet riser, and non-corrosive external fluid path help address rust and contamination concerns. The reel also includes a locking pin that secures the drum against rotation during transport or storage.

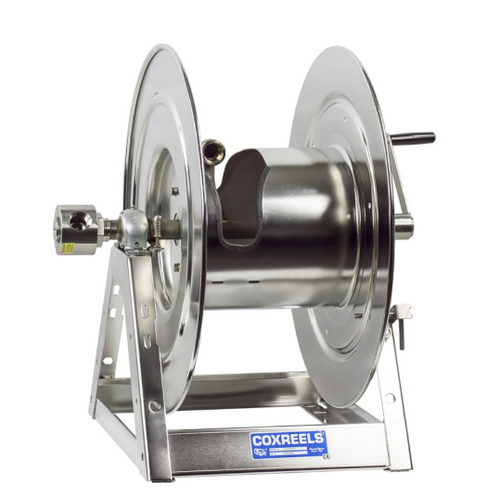

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Stainless Steel Hand Crank Hose Reel | Series: 1175-SS Series | Model: 1175-6-100-SP | Configuration: Less Hose | Rewind Method: Direct Hand Crank | Hose I.D.: 1" | Maximum Hose O.D.: 1-7/16" | Hose Capacity: 100 ft | Maximum Working Pressure: 3,000 PSI | Hose Included: No | Overall Dimensions: 28.13" W x 26.13" H x 24" L | Mounting Pattern: 14.81" M x 13.75" N | Base Dimensions: 17" X x 20.13" Y

Features:

• Solid steel direct hand crank with a smooth round handle provides controlled manual hose retrieval.
• Standard unpolished, as-manufactured stainless steel finish supports use where corrosion and contamination are concerns.
• Machined stainless steel 90° full-flow NPT swivel creates a non-corrosive external fluid path.
• Nitrile swivel seals are lubricated with non-toxic food-grade grease.
• Stainless steel low-profile outlet riser and open drum slot promote a flat, smooth hose wrap without sharp crimping at the connection.
• One-piece, CNC robotically welded 1/4-inch stainless steel A-frame base provides a rigid mounting structure without bolted frame joints.
• Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation.
• Adjustable tension brake helps prevent free-wheeling during hose payout and retrieval.
• Long-handled locking pin secures the drum against rotation during transport or storage.
• CNC-spun, ribbed stainless steel discs feature rolled edges for strength, hose protection, and safer handling.

Made in USA:

2 Year Warranty

Applications:

• Food and chemical processing facilities managing compatible water, air, washdown, or process-fluid hose.
• Marinas, docks, and marine service locations exposed to moisture, salt air, and corrosion-producing conditions.
• Sanitation and cleanup stations where stainless steel construction helps reduce rust and contamination concerns.
• Industrial processing areas requiring manual control over the payout and retrieval of large-diameter hose.
• Mobile service equipment and trailers where the locking pin can secure the reel during transport.
• Fixed installations without access to electricity or compressed air for a powered rewind system.

FAQs:

• Q: Is hose included with the Coxreels 1175-6-100-SP?
  A: No. This model is supplied as a bare reel without hose. The selected hose must have a 1-inch inside diameter, an outside diameter no greater than 1-7/16 inches, and suitable pressure, temperature, and media ratings.
• Q: What does the 'SP' suffix indicate?
  A: The -SP suffix identifies the standard unpolished, as-manufactured stainless steel finish. It provides stainless steel construction without the electro-polished finish used on -SS configurations.
• Q: How does the reel prevent the drum from unwinding unexpectedly?
  A: An adjustable tension brake helps control drum movement and reduce free-wheeling during operation. A separate long-handled locking pin secures the drum during transport or storage.
• Q: Can this reel be used at the full 3,000 PSI rating with any 1-inch hose?
  A: No. The complete hose assembly is limited by its lowest-rated component. Confirm that the hose, fittings, connectors, and other system components are compatible with the intended fluid, temperature, and working pressure.
• Q: When should I choose a hand crank reel instead of a motorized model?
  A: A hand crank reel is useful when electrical or compressed-air power is unavailable, unnecessary, or difficult to install. It also gives the operator direct control over retrieval speed without additional motor controls.
