For jobs where hose must move with the operator instead of feeding from one fixed direction, the Coxreels SM12-3-100 Swivel Mount Hand Crank Hose Reel rotates on demand and can lock in eight positions when paired with the optional SMK-202 wall mount bracket. This compact SM Series reel accommodates up to 100 ft of 3/8 in. I.D. hose, providing practical reach for pressure washing, agricultural spraying, washdown, fluid transfer, and facility maintenance. Its direct hand crank rewind gives the operator controlled hose retrieval without relying on a spring or powered rewind system.

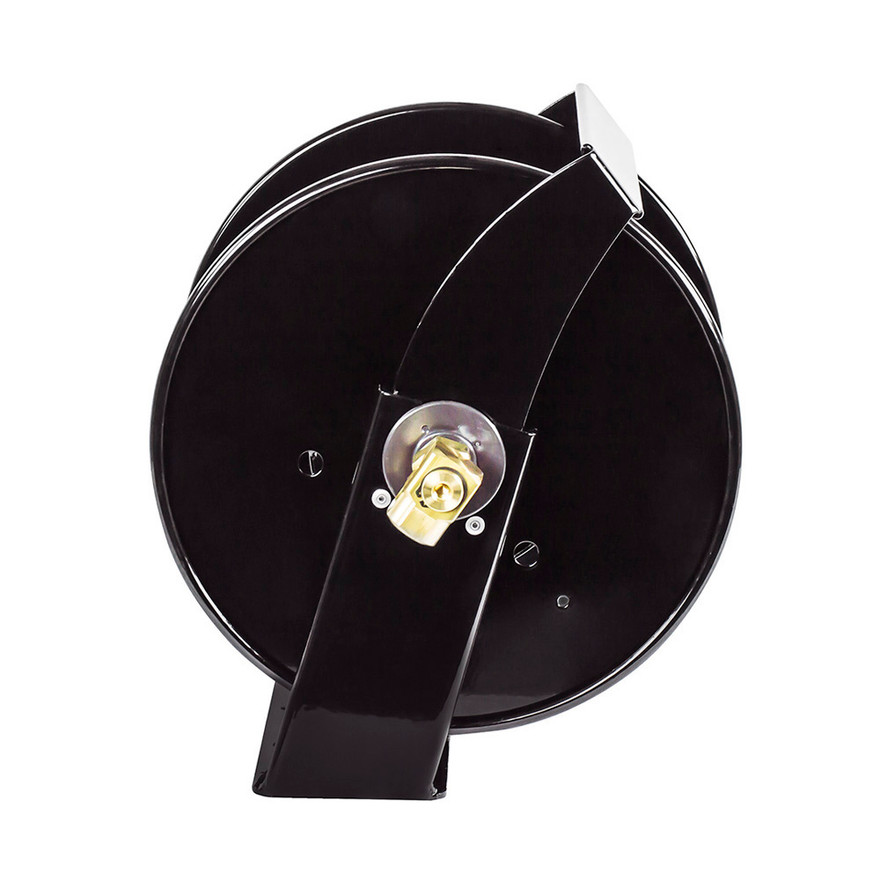

Rated for up to 4,000 PSI working pressure, the SM12-3-100 incorporates a machined solid brass 90-degree full-flow NPT swivel inlet with VITON swivel seals. The forward-weighted design helps the reel rotate toward the direction of use, while its one-piece heavy gauge steel frame, U-shaped base, and hose control bar add rigidity and help keep hose from slipping off the side discs. An adjustable tension brake limits unwanted free-wheeling during operation, transportation, or storage. This model is supplied without hose, allowing the appropriate hose assembly to be selected for the intended pressure, fluid, and operating conditions.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Swivel Mount Hand Crank Hose Reel | Series: SM Series | Model: SM12-3-100 | Configuration: Less Hose | Hose I.D.: 3/8 in. | Hose O.D.: 5/8 in. | Hose Capacity: 100 ft | Maximum Working Pressure: 4,000 PSI | Overall Dimensions: 19 in. W x 13-1/2 in. H x 12 in. L | Base Dimensions: 10-1/4 in. X x 4 in. Y | Mounting Pattern: 7 in. M x 3 in. N | Drum Diameter: 5-1/2 in. | Drum Width: 8 in.
Features:
- Machined solid brass 90-degree full-flow NPT swivel inlet supports fluid flow through the reel.
- VITON seals are used in the swivel assembly.
- Forward-weighted configuration helps the reel rotate in the direction of hose use.
- Solid one-piece heavy gauge steel frame provides a rigid supporting structure.
- Unique hose control bar helps prevent hose from slipping off the side discs when pulled from different directions.
- Adjustable tension brake helps prevent free-wheeling during operation, transport, or storage.

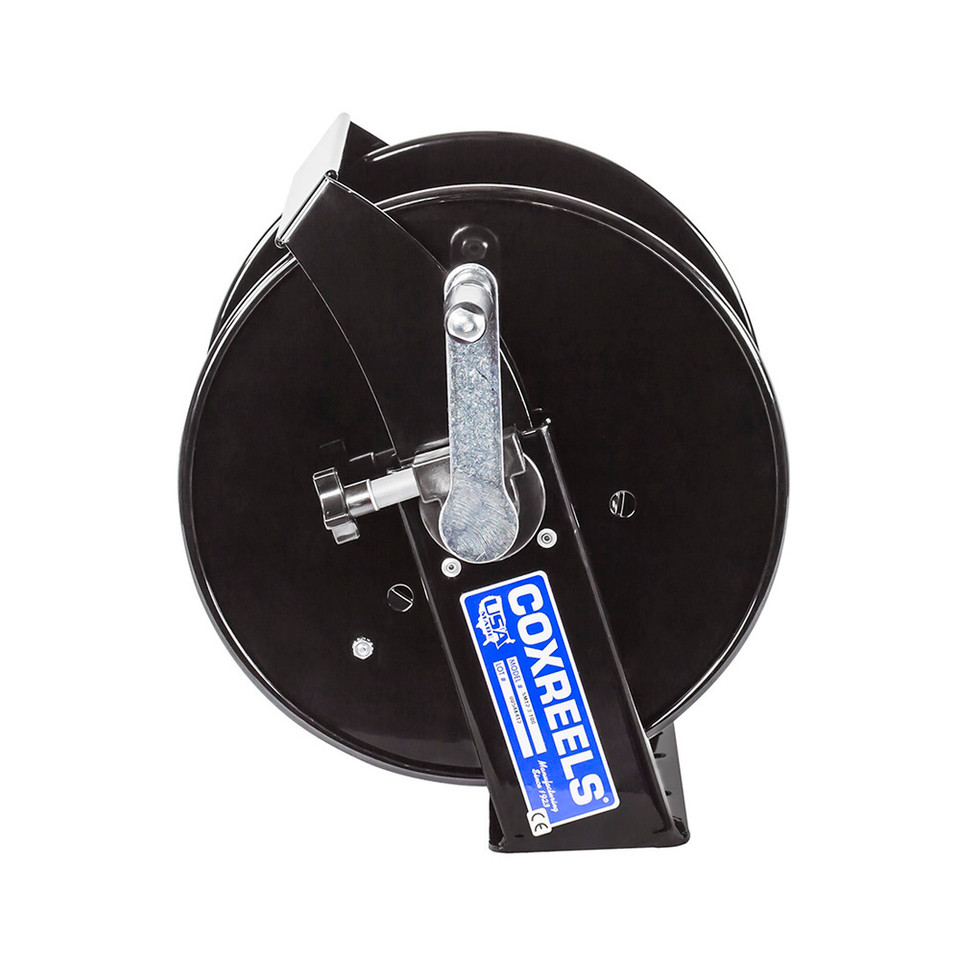

- Direct hand crank rewind provides controlled manual hose retrieval.
- Rolled edges, ribbed discs, and the proprietary CPC powder coat process contribute strength, safety, and finish durability.
Made in USA:
Applications:
- Pressure washing and washdown systems requiring controlled manual hose storage.
- Agricultural spraying and farming operations using compatible hose and transferred fluids.
- Chemical fluid transfer where all hose and reel components are compatible with the handled media.
- Industrial facilities maintenance requiring organized storage of high-pressure hose.
- Construction sites and ground maintenance work where hose direction changes with the work area.
- Water supply, landscape, turf care, and home gardening applications operated within the reel and installed hose ratings.
FAQs:
- Q: Is hose included with the Coxreels SM12-3-100?
A: No. Coxreels supplies this model less hose. A compatible hose must be selected and installed separately. - Q: What is the standard hose capacity of this reel?
A: The SM12-3-100 holds up to 100 ft of hose measuring 3/8 in. I.D. and 5/8 in. O.D. - Q: Can this reel hold a longer length of smaller hose?
A: Yes. Coxreels lists an optional capacity of 150 ft when using 1/4 in. I.D. x 1/2 in. O.D. hose. A reducer is required for this configuration. - Q: Does the reel lock in different swivel positions?
A: The SM Series can lock in eight positions when used with the optional SMK-202 wall mount bracket. The mounting bracket is sold separately. - Q: How is unwanted reel rotation controlled?
A: An adjustable tension brake helps prevent free-wheeling while the reel is being used, transported, or stored.
| LESS HOSE SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI | APRX LBS. |
SIZE INDEX |
||||
|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||
| SM12-3-100 | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 | 15 | 1 |
| SM17-3-250 | 3/8" | 5/8" | 250 | 1/4" | 1/2" | 350 | 4,000 | 26 | 2 |
| SM17-4-125 | 1/2" | 7/8" | 125 | 3/8" | 3/4" | 150 | 4,000 | 26 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
