Built for demanding high-pressure fluid handling applications, the Coxreels 1660-0924 hand crank hybrid frame hose reel provides dependable manual hose storage and retrieval while protecting valuable hose assemblies from unnecessary wear. Featuring the 1600 Series, a 1" hose capacity, 100 ft hose length, and a 3000 PSI maximum operating pressure, this reel is well suited for industrial maintenance, hydraulic service, pressure washing, oil transfer, construction equipment, and other heavy-duty fluid handling operations. Its hybrid frame design combines strength with efficient hose management, while the manual hand crank offers smooth, controlled hose rewind without requiring external power.
Supplied in a less hose configuration, the 1660-0924 allows users to install a compatible hose assembly that matches their specific pressure, media, and fitting requirements. The open-frame reel design helps reduce hose twisting, abrasion, and tangling while maintaining an organized workspace and providing easy hose access during operation.

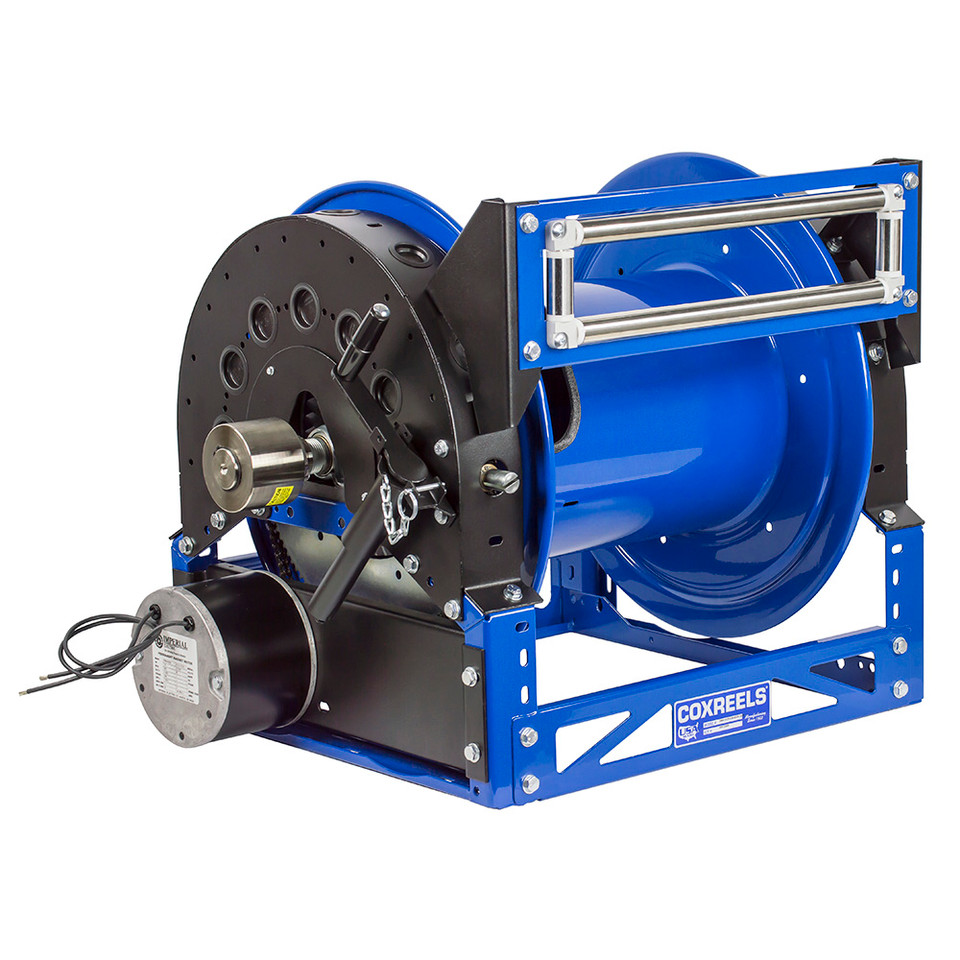

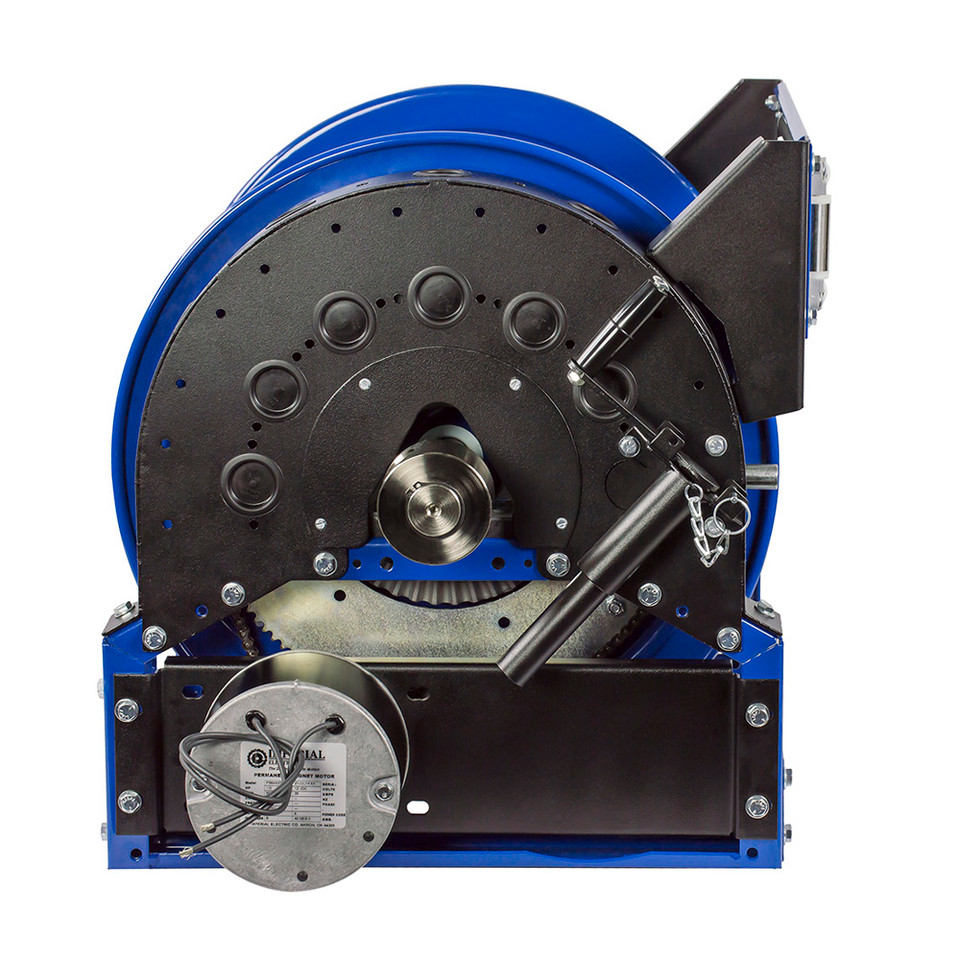

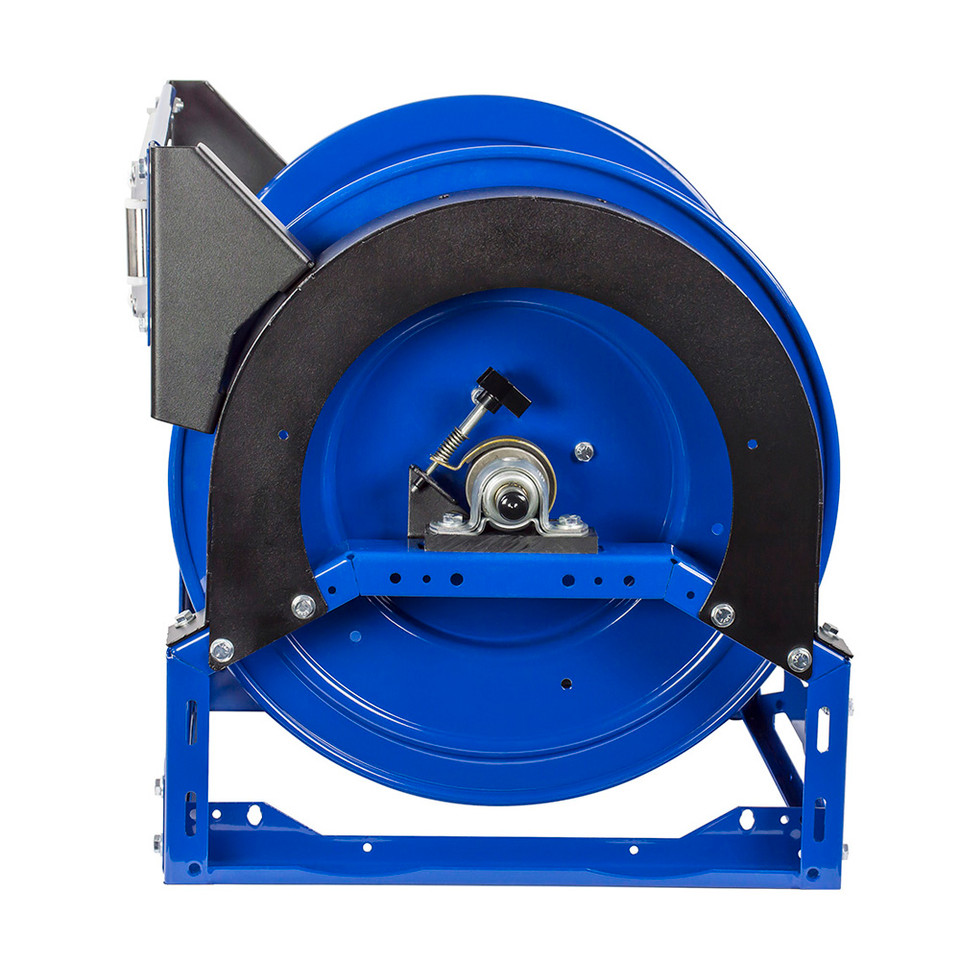

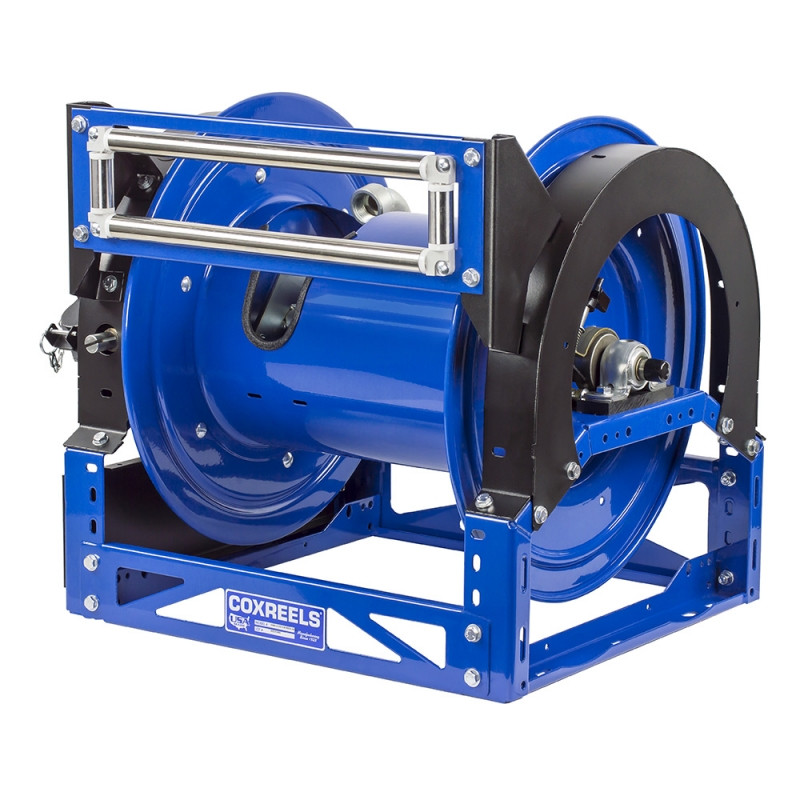

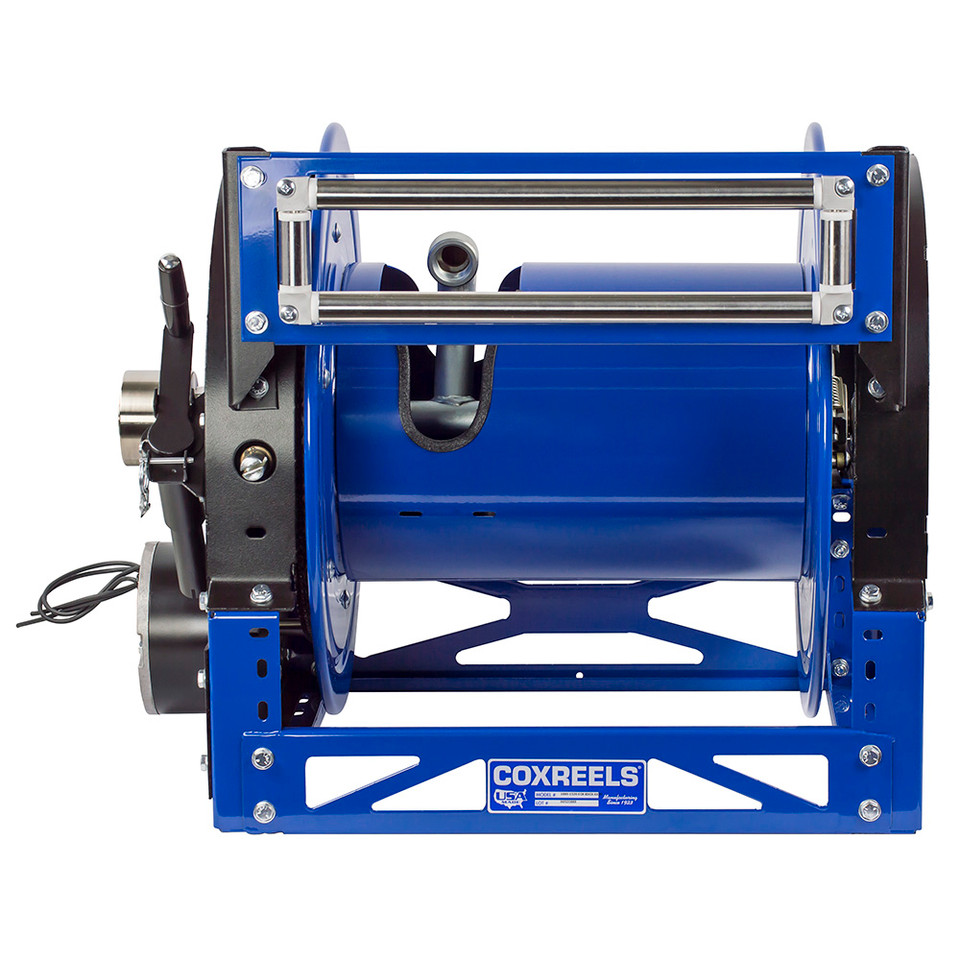

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hybrid Frame Hose Reel | Series: 1600 Series | Configuration: Less Hose | Hose I.D.: 1" | Hose Capacity: 100 ft | Max Pressure: 3000 PSI | Rewind: Hand Crank
Features:
- Manual hand crank provides smooth, controlled hose rewind without requiring electrical or pneumatic power.
- Hybrid frame construction offers dependable support for demanding industrial hose management applications.
- Designed to accommodate up to 100 feet of 1-inch hose.
- Rated for operating pressures up to 3000 PSI when used with compatible hose assemblies and fittings.
- Less hose configuration allows installation of a hose assembly selected for specific fluid transfer requirements.
- Open-frame design promotes easy hose access while helping reduce hose kinking, tangling, and abrasion.
Made in USA:
Applications:
- Industrial hydraulic and high-pressure fluid transfer systems.
- Pressure washing and equipment cleaning operations.
- Oil transfer and lubrication service applications.
- Construction, mining, and heavy equipment maintenance.
- Manufacturing facilities requiring organized storage of large-diameter high-pressure hose assemblies.
FAQs:
- Q: What does "less hose" mean?
A: This reel is supplied without hose, allowing you to install a compatible hose assembly that matches your specific pressure, media, and application requirements. - Q: Does this reel require electricity or compressed air?
A: No. The manual hand crank rewind system operates without any external power source. - Q: What hose size is this reel designed to accommodate?
A: The reel is designed for up to 100 feet of 1-inch hose. - Q: Is this reel suitable for high-pressure applications?
A: Yes. The reel is rated for applications up to 3000 PSI when used with properly rated hose assemblies and compatible system components.
| LESS HOSE | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | HOSE CAP. 1" I.D. |
OPTIONAL HOSE CAP. 3/4" I.D. |
DIMENSIONS | APRX. LBS. |
|||||||
| DW DRUM WIDTH |
L DISC SIZE |
W CRANK |
W ELEC. |
AIR/ HYD. |
H | X | Y | ||||
| 1660-0820 | 50' | 60' | 8" | 20" | 23-7/8" | 21-5/8" | 20-3/8" | 21-3/4" | 15" | 20-1/4" | 54 |
| 1660-1120 | 11.5" | 20" | 27-3/8" | 25-1/8" | 23-7/8" | 21-3/4" | 18-1/2" | 20-1/4" | 60 | ||
| 1660-0824 | 75' | 100' | 8" | 24" | 23-7/8" | 21-5/8" | 20-3/8" | 25-1/4" | 15" | 23-1/4" | 67 |
| 1660-1520 | 15.5" | 20" | 31-3/8" | 29-1/8" | 27-7/8" | 21-3/4" | 22-1/2" | 20-1/4" | 68 | ||
| 1660-0924 | 100' | 150' | 9.5" | 24" | 35-3/8" | 23-1/8" | 21-7/8" | 25-1/4" | 16-1/2" | 23-1/4" | 72 |
| 1660-2020 | 20" | 20" | 35-7/8" | 33-5/8" | 32-3/8" | 21-3/4" | 27" | 20-1/4" | 82 | ||
| 1660-1124 | 130' | 175' | 11.5" | 24" | 27-3/8" | 25-1/8" | 23-7/8" | 25-1/4" | 18-1/2" | 23-1/4" | 73 |
| 1660-0828 | 8" | 28" | 23-7/8" | 21-5/8" | 20-3/8" | 29-1/4" | 15" | 26-1/4" | 82 | ||
| 1660-2220 | 165' | 225' | 22" | 20" | 37-7/8" | 35-5/8" | 34-3/8" | 21-3/4" | 29" | 20-1/4" | 89 |
| 1660-1524 | 15.5" | 24" | 31-3/8" | 29-1/8" | 27-7/8" | 25-1/4" | 22-1/2" | 23-1/4" | 81 | ||
| 1660-0928 | 9.5" | 28" | 25-3/8" | 23-1/8" | 21-7/8" | 29-1/4" | 16-1/2" | 26-1/4" | 85 | ||
| 1660-2820 | 200' | 275' | 28" | 20" | 43-7/8" | 41-5/8" | 40-3/8" | 21-3/4" | 35" | 20-1/4" | 94 |
| 1660-2024 | 20" | 24" | 35-7/8" | 33-5/8" | 32-3/8" | 25-1/4" | 27" | 23-1/4" | 91 | ||
| 1660-1128 | 11.5" | 28" | 27-3/8" | 25-1/8" | 23-7/8" | 29-1/4" | 18-1/2" | 26-1/4" | 88 | ||
| 1660-2224 | 225' | 325' | 22" | 24" | 37-7/8" | 35-5/8" | 34-3/8" | 25-1/4" | 29" | 23-1/4" | 98 |
| 1660-1328 | 13.5" | 28" | 29-3/8" | 27-1/8" | 25-7/8" | 29-1/4" | 20-1/2" | 26-1/4" | 108 | ||
| 1660-3320 | 33" | 20" | 48-7/8" | 46-5/8" | 45-3/8" | 21-3/4" | 40" | 20-1/4" | 104 | ||
| 1660-2424 | 250' | 375' | 24" | 24" | 39-7/8" | 37-5/8" | 36-3/8" | 25-1/4" | 31" | 23-1/4" | 102 |
| 1660-1528 | 15.5" | 28" | 31-3/8" | 29-1/8" | 27-7/8" | 29-1/4" | 22-1/2" | 26-1/4" | 96 | ||
| 1660-2824 | 300' | 450' | 28" | 24" | 43-7/8" | 41-5/8" | 40-3/8" | 25-1/4" | 35" | 23-1/4" | 107 |
| 1660-3324 | 350' | 500' | 33" | 24" | 48-7/8" | 46-5/8" | 45-3/8" | 25-1/4" | 40" | 23-1/4" | 117 |
| 1660-2028 | 20" | 28" | 35-7/8" | 33-5/8" | 32-3/8" | 29-1/4" | 27" | 26-1/4" | 106 | ||
| 1660-2228 | 400' | 550' | 22" | 28" | 37-7/8" | 35-5/8" | 34-3/8" | 29-1/4" | 29" | 26-1/4" | 112 |
| 1660-2428 | 450' | 600' | 24" | 28" | 39-7/8" | 37-5/8" | 36-3/8" | 29-1/4" | 31" | 26-1/4" | 114 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hand Crank Hose Reel
- Series
- 1600 Series
- Hose Inside Diameter (in.)
- 1
- Hose Length (ft.)
- 100
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 3000
- Width (in.)
- 35.38
- Height (in.)
- 25.25
- Length (in.)
- 24
- Mounting Pattern (in.)
- 14.15M
- Mounting Pattern (in.)
- 18.5N
- Base (in.)
- 16.5X
- Base (in.)
- 23.25Y
