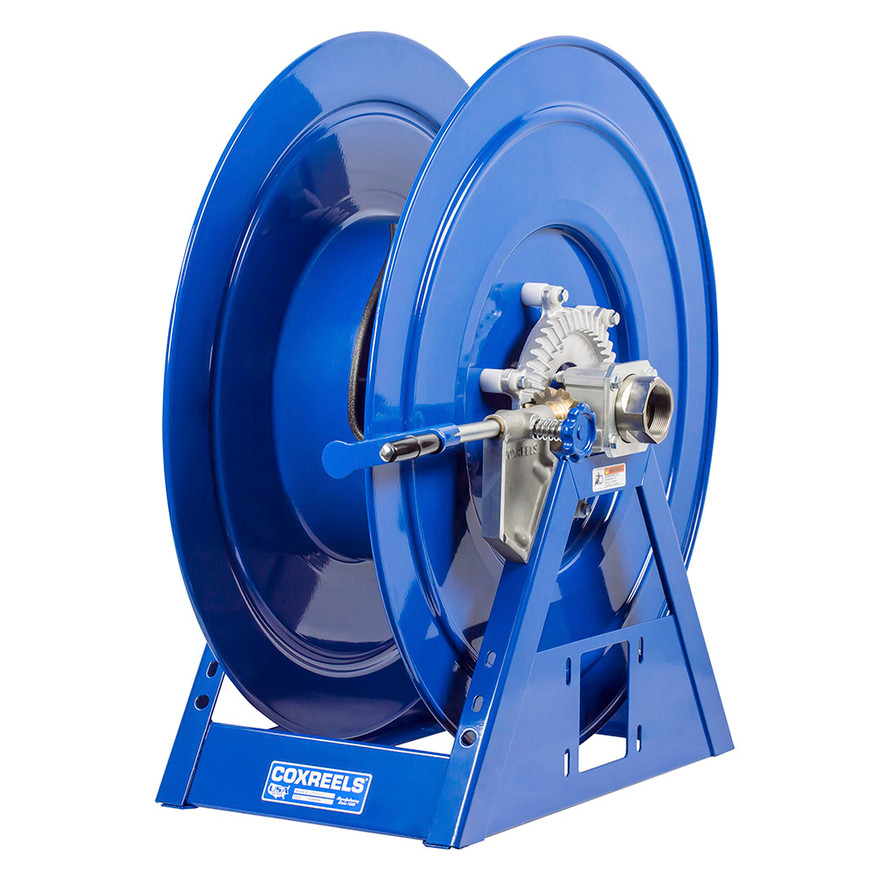

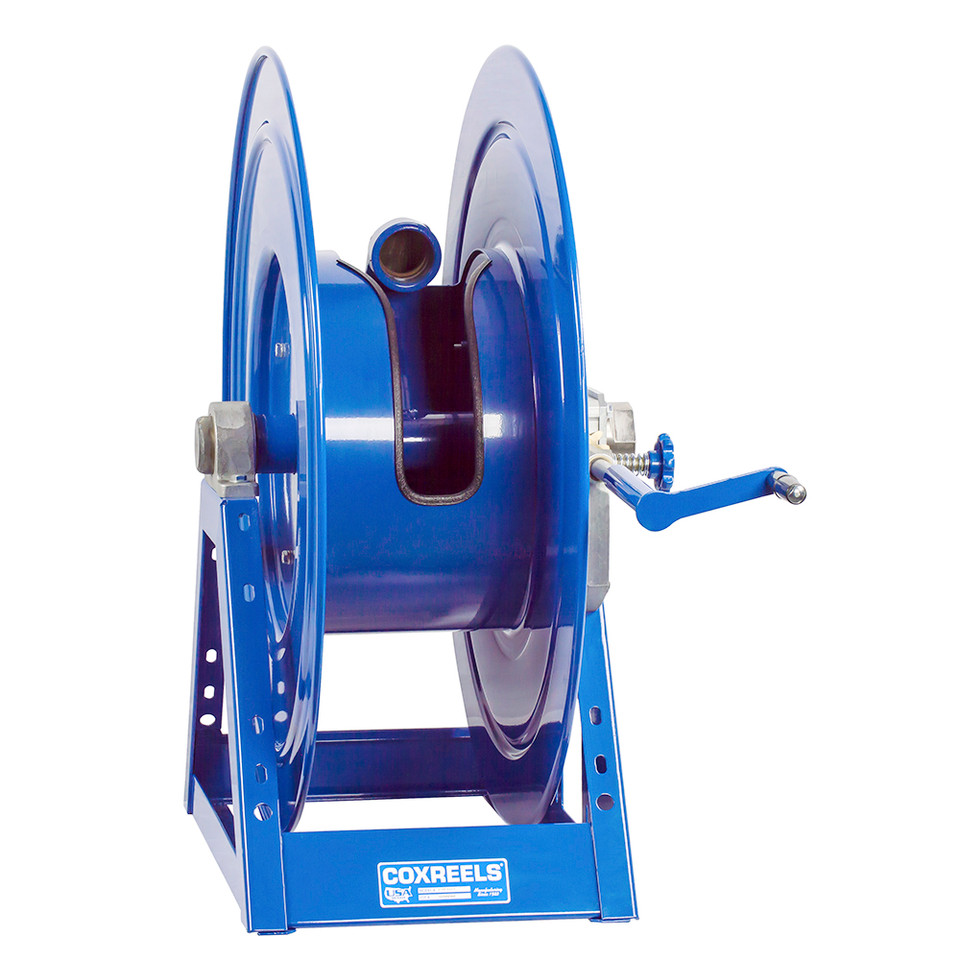

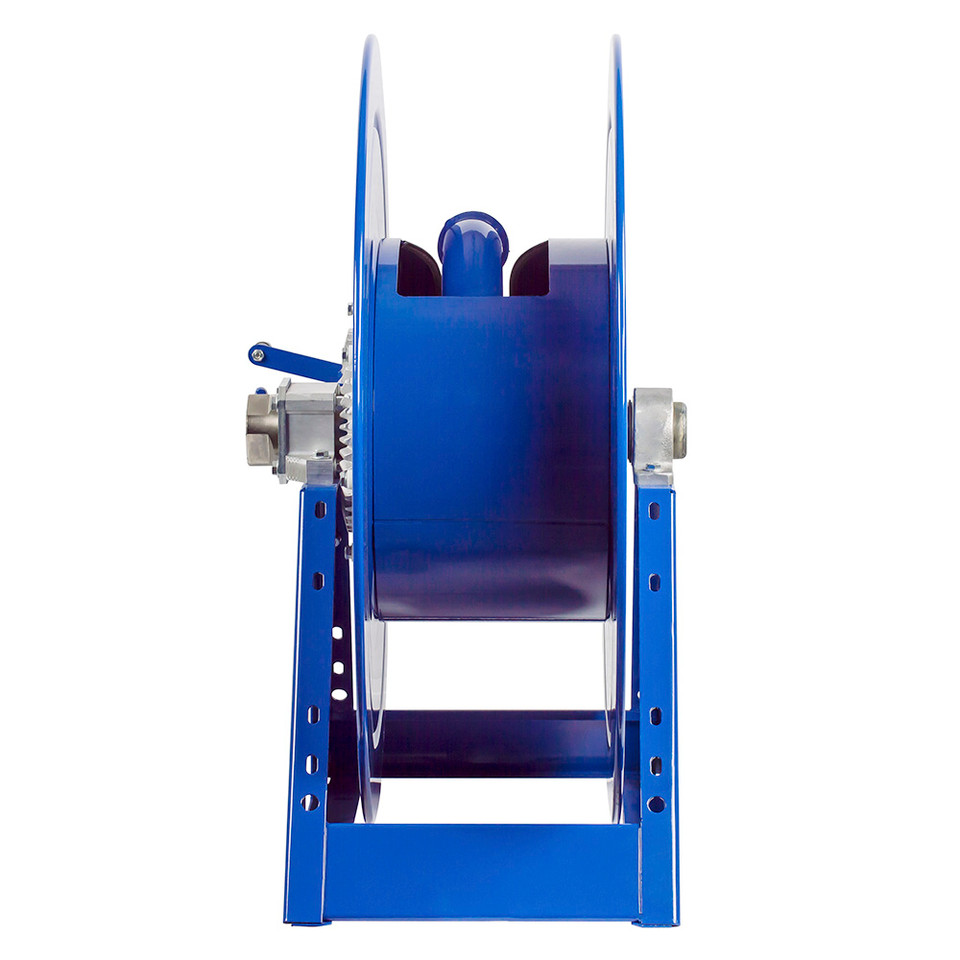

Coxreels 1195-932-C beveled gear hand crank hose reel is designed for efficient handling of large-diameter hose in demanding industrial fluid transfer applications. As part of the 1195 Series, this reel accommodates a 2" hose with a 50 ft hose capacity and is rated for a maximum working pressure of 1000 PSI. The integrated beveled gear hand crank provides additional mechanical advantage, making it easier to manually rewind heavy hose while improving control during retrieval. This reel is well suited for petroleum transfer, chemical processing, construction, mining, municipal service, and industrial maintenance applications.
Supplied in a less hose configuration, the 1195-932-C allows users to install a compatible hose assembly that matches their specific pressure, media, and fitting requirements. Its heavy-duty open-frame construction promotes smooth hose deployment and retrieval while helping reduce hose twisting, abrasion, and tangling for improved hose life and a safer, more organized workspace.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Beveled Gear Hand Crank Hose Reel | Series: 1195 Series | Configuration: Less Hose | Hose I.D.: 2" | Hose Capacity: 50 ft | Max Pressure: 1000 PSI | Rewind: Beveled Gear Hand Crank
Features:
- Beveled gear hand crank provides increased mechanical advantage for smooth, controlled manual hose rewind.
- Designed to accommodate up to 50 feet of 2-inch hose.
- Rated for operating pressures up to 1000 PSI when used with compatible hose assemblies and fittings.
- Less hose configuration allows installation of a hose assembly selected for the intended application.
- Heavy-duty open-frame construction promotes smooth hose payout while helping reduce hose twisting and abrasion.
- 1195 Series construction provides dependable hose management for industrial fluid transfer applications.
Made in USA:
Applications:
- Industrial fluid transfer and process operations.
- Petroleum and fuel transfer systems.
- Chemical processing applications using compatible hose assemblies.
- Construction, mining, and heavy equipment service operations.
- Municipal, utility, and industrial maintenance facilities requiring organized storage of large-diameter hose.
FAQs:
- Q: What does "less hose" mean?
A: This reel is supplied without hose, allowing you to install a compatible hose assembly that meets your application's pressure, media, and fitting requirements. - Q: What is the benefit of the beveled gear hand crank?
A: The beveled gear mechanism provides additional leverage, making it easier to manually rewind large-diameter, heavy hose with greater control. - Q: What hose size and capacity is this reel designed for?
A: The reel is designed to accommodate up to 50 feet of 2-inch hose. - Q: Is this reel suitable for high-pressure industrial applications?
A: Yes. The reel is rated for applications up to 1000 PSI when used with properly rated hose assemblies and compatible system components.
| LESS HOSE | SIZE INDEX |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL ASSEMBLY |
OUTLET RISER |
PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
STANDARD 1195 SERIES WITH IN-LINE SWIVEL
|
|||||||||||
| 1195-932-AB | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-C | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-EDV3 | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-EBV3 | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-EAV3 | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-EJV3 | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
| 1195-932-H | 2" | 2-9/16" | 50 | 1-1/2" | 2-1/16" | 60 | 2" F NPT | 2" F NPT | 1,000 | 128 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
