Coxreels 1195-2428-C beveled gear hand crank hose reel is engineered for dependable handling of large-diameter hose in demanding industrial fluid transfer applications. As part of the 1195 Series, this reel is designed to accommodate a 2" hose with a 90 ft hose capacity and is rated for a maximum working pressure of 1000 PSI. The beveled gear hand crank mechanism provides additional mechanical advantage, making manual hose retrieval easier while maintaining smooth, controlled operation. It is an excellent choice for petroleum transfer, chemical processing, construction, mining, municipal utilities, and industrial maintenance operations.
Supplied in a less hose configuration, the 1195-2428-C allows users to install a compatible hose assembly that meets their specific pressure, media, and connection requirements. Its heavy-duty open-frame construction promotes smooth hose deployment and rewind while helping reduce hose twisting, kinking, and abrasion to maximize hose service life and maintain a safer, more organized work environment.

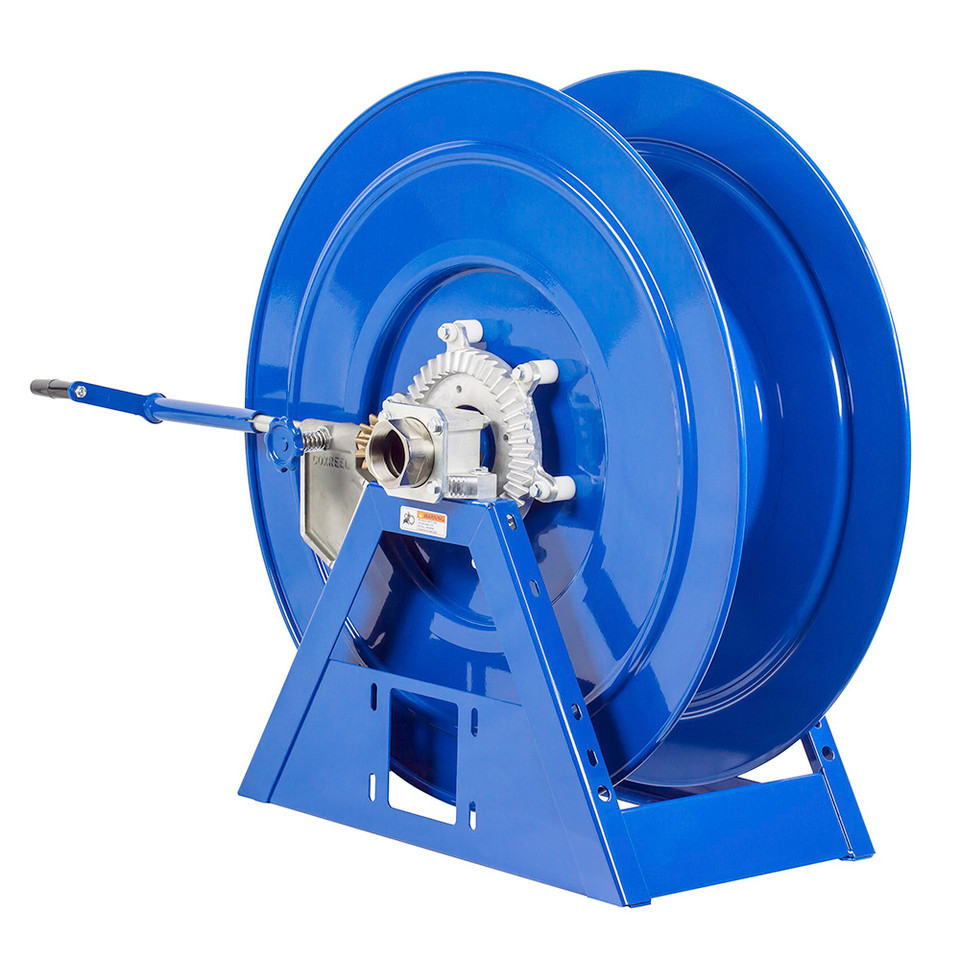

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Beveled Gear Hand Crank Hose Reel | Series: 1195 Series | Configuration: Less Hose | Hose I.D.: 2" | Hose Capacity: 90 ft | Max Pressure: 1000 PSI | Rewind: Beveled Gear Hand Crank
Features:
- Beveled gear hand crank provides increased leverage for easier manual rewinding of heavy, large-diameter hose.
- Designed to accommodate up to 90 feet of 2-inch hose.
- Rated for operating pressures up to 1000 PSI when used with compatible hose assemblies and fittings.
- Less hose configuration allows users to install the hose best suited for their application.
- Heavy-duty open-frame construction promotes smooth hose payout and controlled rewind.
- Helps reduce hose kinking, tangling, and abrasion while maintaining organized hose storage.
Made in USA:
Applications:
- Petroleum and fuel transfer systems.
- Chemical processing and bulk fluid handling.
- Construction and mining equipment service operations.
- Municipal water, utility, and public works maintenance.
- Industrial plants requiring organized storage of large-diameter process hoses.
FAQs:
- Q: What does "less hose" mean?
A: This reel is supplied without hose, allowing you to install a compatible hose assembly that matches your application's pressure, media, and connection requirements. - Q: Why does this reel use a beveled gear hand crank?
A: The geared crank provides additional mechanical advantage, making it easier to manually rewind heavy, large-diameter hose while maintaining better control. - Q: What hose size and capacity is this reel designed for?
A: It is designed to hold up to 90 feet of 2-inch hose. - Q: Is this reel suitable for high-pressure industrial fluid transfer?
A: Yes. The reel is rated for applications up to 1000 PSI when paired with properly rated hose assemblies and compatible system components.
| LESS HOSE | SIZE INDEX |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL ASSEMBLY |
OUTLET RISER |
PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
STANDARD 1195 SERIES WITH IN-LINE SWIVEL
|
|||||||||||
| 1195-2428-AB | 2" | 2-9/16" | 90 | 1-1/2" | 2-1/16" | 135 | 2" F NPT | 2" F NPT | 1,000 | 169 | 4 |
| 1195-2428-C | 2" | 2-9/16" | 90 | 1-1/2" | 2-1/16" | 135 | 2" F NPT | 2" F NPT | 1,000 | 169 | 4 |
| 1195-2428-EDV3 | 2" | 2-9/16" | 90 | 1-1/2" | 2-1/16" | 135 | 2" F NPT | 2" F NPT | 1,000 | 169 | 4 |
| 1195-2428-EBV3 | 2" | 2-9/16" | 90 | 1-1/2" | 2-1/16" | 135 | 2" F NPT | 2" F NPT | 1,000 | 169 | 4 |
| 1195-2428-EAV3 | 2" | 2-9/16" | 90 | 1-1/2" | 2-1/16" | 135 | 2" F NPT | 2" F NPT | 1,000 | 169 | 4 |
| 1195-2428-EJV3 | 2" | 2-9/16" | 90 | 1-1/2" | 2-1/16" | 135 | 2" F NPT | 2" F NPT | 1,000 | 169 | 4 |
| 1195-2428-H | 2" | 2-9/16" | 90 | 1-1/2" | 2-1/16" | 135 | 2" F NPT | 2" F NPT | 1,000 | 169 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
