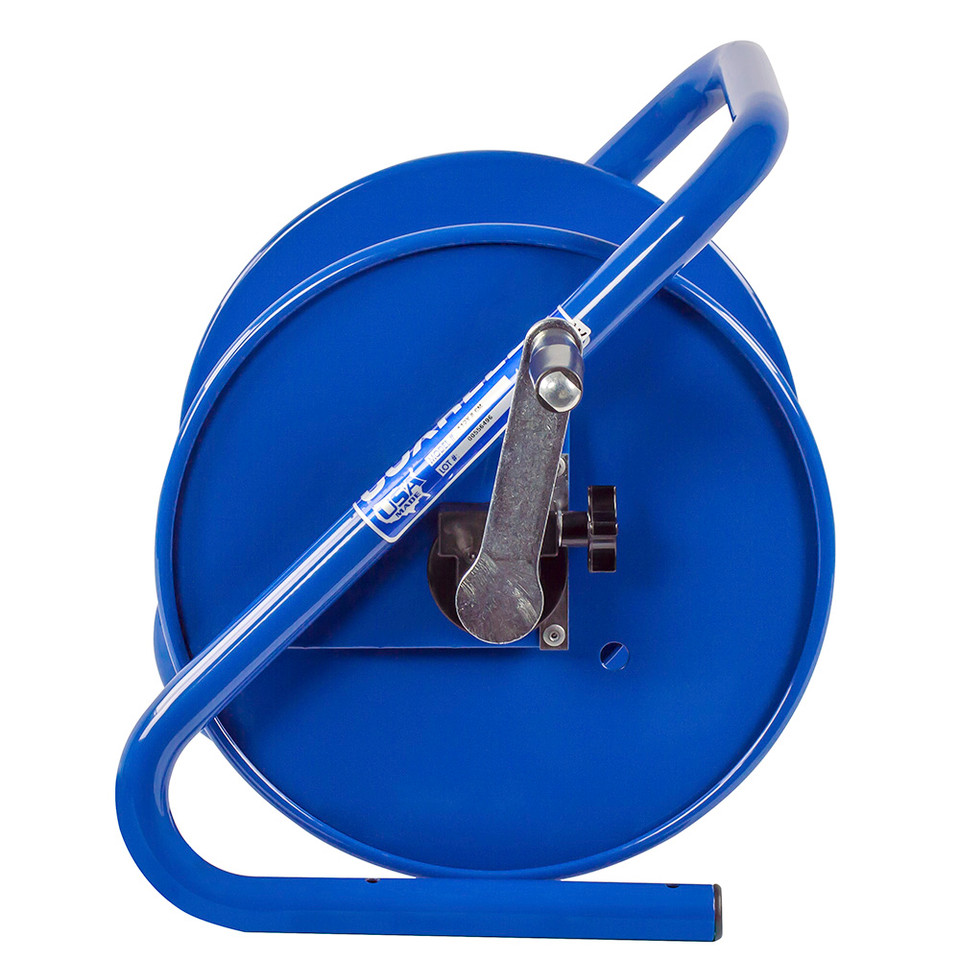

Coxreels 112Y-12-CM Challenger Storage Reel | 112Y-CM Series | 8/3" Cable Gauge | 150' Cable Capacity | U Shaped Frame | Less Hose

Coxreels 112Y-12-CM Challenger Storage Reel provides portable manual storage for hose, electrical cord, cable, wire, rope, tape, chain, and other flexible materials. Part of the 112Y-CM Series, this higher-capacity Caddy Mount model stores up to 150 ft of 8/3 SJ cord or 225 ft of 10/3 SJ cord. Its direct hand crank gives the user controlled mechanical rewind, while the portable frame configuration makes the reel easier to position and move between storage and work areas.

Unlike the standard 112Y models, the 112Y-12-CM uses a high-quality one-piece 1" steel tube frame structure rather than the standard U-shaped frame. The open drum and access port allow hose, cord, or cable to pass through to the center of the drum for quick wrapping and adjustment of the storage lead. An adjustable tension brake helps prevent unwanted free-wheeling during operation, transport, or storage, while the Caddy Mount configuration provides convenient portability for mobile and stationary storage applications.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Hose, Cord or Cable Storage Reel | Series: 112Y-CM Series | Model: 112Y-12-CM | Configuration: Less Hose, Cord or Cable | Cable Capacity: 150 ft of 8/3 SJ Cord; 225 ft of 10/3 SJ Cord | Hose Capacity: 150 ft of 3/8" Hose; 75 ft of 1/2" Hose | Mounting Style: Caddy Mount | Rewind: Direct Hand Crank | Approximate Weight: 19 lbs

Features:

• Compact hand crank storage reel accommodates hose, cord, cable, wire, rope, tape, chain, and other flexible materials.
• Caddy Mount configuration provides convenient portability for moving the reel between work and storage locations.
• High-quality one-piece 1" steel tube frame structure supports the portable 112Y-CM Series configuration.
• Open drum design provides straightforward access when loading, winding, or retrieving stored material.
• Open access port allows hose, cord, or cable to pass through to the center of the drum for quick wrapping and adjustment of the storage lead.
• Adjustable tension brake helps prevent free-wheeling during operation, transportation, and storage.
• Control bar helps keep stored hose, cord, or cable from slipping off the reel discs.
• Direct hand crank provides controlled mechanical rewind without a spring-driven retraction mechanism.

Made in USA:

2 Year Warranty

Applications:

• Electrical maintenance and service operations storing long lengths of compatible SJ cord between jobs.
• Mobile work areas where a portable Caddy Mount reel helps keep hose, cord, or cable organized and accessible.
• Commercial and industrial facilities storing wire, rope, tape, chain, and other flexible materials.
• Maintenance shops and service departments that need manual reel storage without a spring rewind mechanism.
• Stationary or portable storage setups where the 150 ft 8/3 SJ cord capacity or listed hose capacities match the required material length.

FAQs:

• Q: Does the Coxreels 112Y-12-CM include hose, cord, or cable?
  A: No. The 112Y-CM Series is supplied without hose or cord. The buyer must select and install compatible hose, cord, cable, or other material separately.
• Q: How much electrical cord can the 112Y-12-CM store?
  A: The manufacturer lists capacity for up to 150 feet of 8/3 SJ cord or 225 feet of 10/3 SJ cord. Cable length ratings are based on SJ cord type.
• Q: What is the difference between the 112Y-12-CM and the standard 112Y-12?
  A: The 112Y-12-CM uses a Caddy Mount configuration with a one-piece 1-inch steel tube frame for convenient portability. The standard 112Y-12 uses the standard 112Y Series U-shaped steel frame.
• Q: Can the 112Y-12-CM be used for hose storage?
  A: Yes. Coxreels lists storage capacity for up to 150 feet of 3/8-inch I.D. hose or 75 feet of 1/2-inch I.D. hose. The referenced manufacturer data does not provide a maximum pressure rating for this storage reel.
• Q: How does the 112Y-12-CM rewind?
  A: The reel uses a direct hand crank for manual rewind. An adjustable tension brake helps control drum movement and prevent unwanted free-wheeling during operation, transport, or storage.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
