Universal Tool

Universal Tool UT8728 Precision Die Grinder | 0.9 HP | 2" Max. Wheel Dia. | 22,000 RPM | 1/4" Collet Size | Rear Exhaust

(0 review)
Product code: UT8728
Condition: New
Availability: Available To Order From Supplier
Weight: 2.1500 LBS
Shipping: Calculated at Checkout
$466.00
$402.16
(You save $63.84 )
Adding to cart… The item has been added


The Universal Tool UT8728 Precision Die Grinder, expertly engineered for precision and performance. Powered by a robust 0.9 HP motor, this die grinder achieves an impressive 22,000 RPM, making it ideal for intricate grinding, polishing, and deburring tasks. Designed to accommodate a maximum wheel diameter of 2", it’s perfect for a variety of applications in metalworking, automotive repair, and fabrication. Featuring a versatile 1/4" Collet Size, the UT8728 allows for quick and easy attachment changes, giving you the flexibility to tackle multiple projects with ease. Its rear exhaust system efficiently directs air and debris away from your work surface, ensuring a clean and safe environment during operation. The ergonomic design provides comfort and control, allowing you to work for extended periods without fatigue.

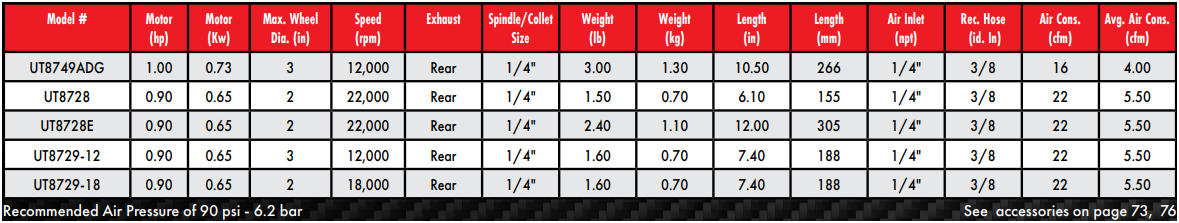

Type: Precision Die Grinder | Motor (HP): 0.9 | Motor (Kw): 0.65 | Max. Wheel Dia. (in.): 2 | Speed (RPM): 22000 | Exhaust: Rear | Collet Size (in.): 1/4 | Length (in.): 6.1 | Air Inlet NPT (in.) : 1/4 | Rec. Hose I.D. (in.): 3/8 | Air Consumption (cfm): 22 | Avg. Air Consumption (cfm): 5.5 | Air Pressure (PSI): 90 | Air Pressure (Bar): 6.2

Features:

  • 1/4" Die Grinder Series
  • 0.9 HP motor for ultimate stall resistance
  • Safety lock-off throttle
  • Rear exhaust keeps work area clean from cuttings
  • Ergonomic "Softouch" coating offers ultimate comfort and reduced vibration
  • UT8728E Features 12" OAL for added reach

Whether you’re a professional or a dedicated DIY enthusiast, the Universal Tool UT8728 Precision Die Grinder is your essential tool for achieving professional-grade results. Experience the perfect combination of power, speed, and precision, and elevate your craftsmanship with a grinder that’s built to perform. Take on your toughest jobs confidently, knowing you have the right tool by your side.

industrial-tools-parts-breakdown.pngLooking for more information about Universal Tool Die Grinders? Click here to view the Catalog

For help choosing the correct Universal Tool Die Grinder, please call (800) 608-5210 or email info@intlairtool.com

Type
Precision Die Grinder
Motor (hp)
0.9
Motor (kW)
0.65
Max Wheel Dia. (in.)
2
RPM
22000
Exhaust
Rear
Collet Size (in.)
1/4
Length (in.)
6.1
Air Inlet
1/4" NPT
Rec. Hose Inside Diameter (in.)
3/8
Air Consumption (CFM)
22
Average Air Consumption (CFM)
5.5
Air Pressure (PSI)
90
Air Pressure (Bar)
6.2
One year warranty against defects in workmanship and materials.
