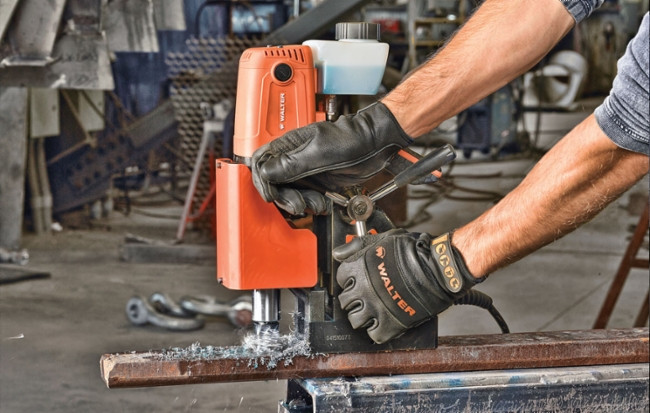

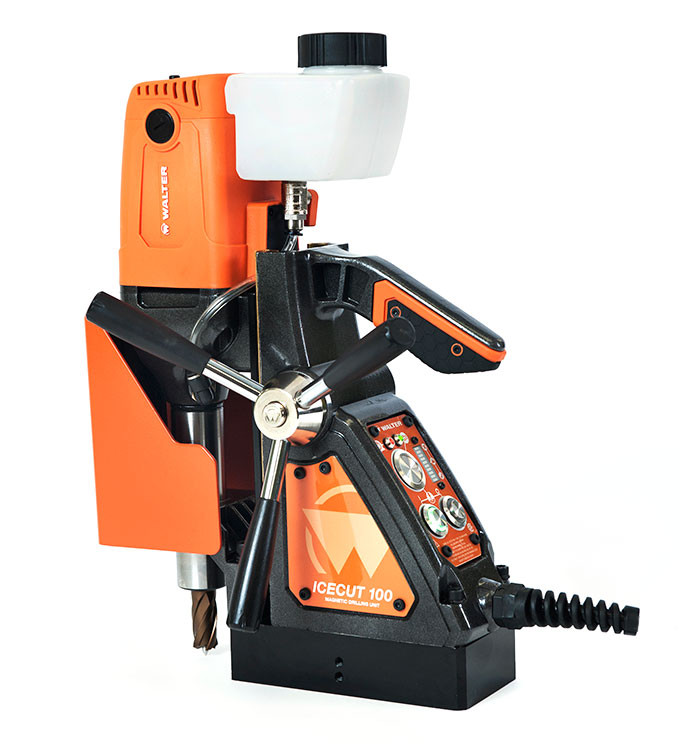

Walter Surface Technologies 39D100 ICECUT 100 Compact Magnetic Drilling Unit | 1-3/8 x 1-1/2" Capacity | 8 A Amps | 600 RPM

The Walter Surface Technologies 39D100 ICECUT 100 Compact Magnetic Drilling Unit is a specialized and precision-focused tool that's perfect for applications where smaller hole sizes and utmost accuracy are of paramount importance. With a drilling capacity of 1-3/8 x 1-1/2 inches (34.9 mm x 38.1 mm), this unit is tailor-made for tasks that demand meticulous and controlled drilling, such as in metalworking and fabrication. This compact magnetic drilling unit is powered by an 8 A (Amp) Motor, which, while not as high in amperage as larger drilling units, is perfectly suited for its intended applications. It strikes an excellent balance between power and portability, making it a highly efficient choice for users who require precision in their drilling work. One of the most impressive features of this unit is its speed control. It offers a variable speed range of up to 600 RPM (Revolutions Per Minute), which is crucial for tasks that require careful control and adjustment of drilling speed. This level of adaptability ensures that users can achieve precisely the results they need for their specific projects.

Type: Magnetic Drilling Unit | Series: ICECUT 100 | Watts: 850 | Speed: 1-Speed | No Load RPM: 600 | Rated Current (A): 8 | Core Cutter Capacity (in.): 1-3/8 | Core Cutter Capacity (mm): 35 | Core Cutter Length (in.): 1-1/2 | Core Cutter Length (mm): 38 | Twist Drill Capacity (in.): 1/2 | Max Drill Point Pressure (lbs): 1875 | Max Drill Point Pressure (KG): 850 | Total Stroke: 2.6

Features:

• Powerful Magnetic Base for Secure Attachment
• Precision Drilling with Minimal Deviation
• High-Powered Motor for Efficient Drilling
• Magnetic Reservoir for Enhanced Cooling
• Safety Features, Including Overload Protection
• Versatile Applications, Ideal for Steel Structures and Pipes
• Durable Construction for Longevity
• Easy Maintenance and Minimal Downtime

Looking for more information about Walter Straight Drills? Click here to view the Catalog

For help choosing the correct Walter Surface TechnologiesDrills for your application, please call (800) 608-5210 or email info@intlairtool.com
