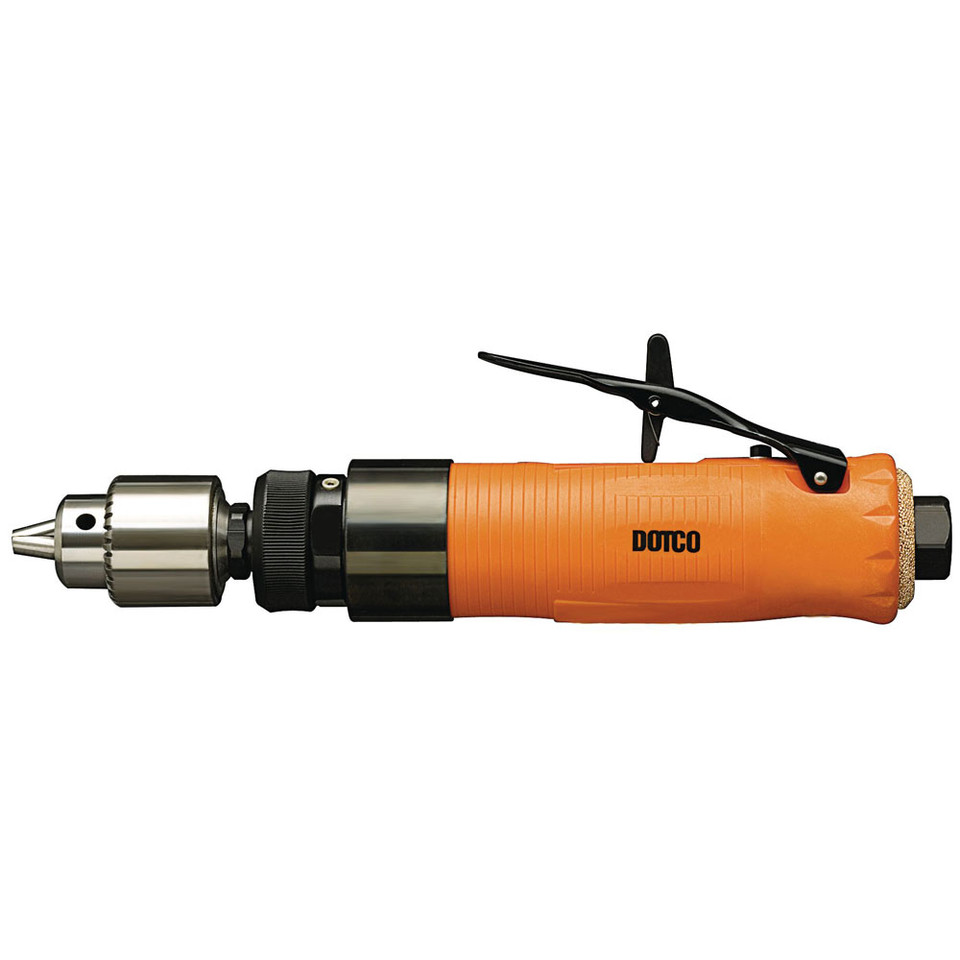

Dotco 15LF085-40 Inline Drill | 15LF Series | 0.4 HP | 3/8" - 24 e | 1,000 RPM | 3/8" Drill Diameter Capacity | Composite Housing | Rear Exhaust

Built for precision drilling in production, maintenance, fabrication, and assembly environments, the Dotco 15LF085-40 Inline Drill combines a compact inline configuration with a 0.4 HP pneumatic motor to deliver dependable performance at a controlled 1,000 RPM. Its 3/8"-24 external spindle allows users to install a compatible threaded drill chuck, while the 3/8" drilling capacity provides the versatility needed for drilling a wide range of materials. The lightweight composite housing helps reduce tool weight for improved handling during extended operation, and the rear exhaust directs spent air away from the workpiece and operator for a cleaner working environment.

The inline design promotes excellent balance and control when drilling in confined spaces or on repetitive production tasks. Operating on standard 90 PSI compressed air, this pneumatic drill is well suited for industrial manufacturing, aerospace, metal fabrication, MRO, and automotive assembly applications where consistent speed and reliable performance are essential.

Type: Inline Pneumatic Drill | Series: 15LF Series | Power: 0.4 HP | Free Speed: 1,000 RPM | Termination: 3/8"-24 External Thread | Drill Capacity: 3/8" | Housing: Composite | Exhaust: Rear | Air Inlet: 1/4" | Minimum Hose I.D.: 1/4"

Features:

• 0.4 HP pneumatic motor provides dependable power for controlled drilling operations.
• 1,000 RPM free speed is suited for applications requiring greater control and drilling accuracy.
• 3/8"-24 external threaded spindle accepts compatible threaded drill chucks.
• Composite housing helps minimize tool weight while providing durability for daily industrial use.
• Inline configuration offers balanced handling and improved access in confined work areas.
• Rear exhaust directs discharged air away from the operator and finished work surface.
• Operates on standard 90 PSI compressed air systems with a 1/4" air inlet and 1/4" minimum hose I.D. :contentReference[oaicite:2]{index=2}

Made in USA:

Applications:

• Production drilling and repetitive assembly operations.
• Aircraft, aerospace, and precision manufacturing facilities.
• Automotive manufacturing and component assembly.
• Metal fabrication, maintenance, and repair departments.
• General industrial drilling where controlled speed and lightweight handling are important.

FAQs:

• Q: Does this drill include a chuck?
  A: No. The 15LF085-40 features a 3/8"-24 external threaded spindle and requires a compatible drill chuck, which is purchased separately. :contentReference[oaicite:3]{index=3}
• Q: What air pressure is this drill designed to operate at?
  A: Tool performance is rated at 90 PSI (620 kPa), the standard operating pressure specified by the manufacturer. :contentReference[oaicite:4]{index=4}
• Q: What advantage does the inline design provide?
  A: The inline configuration offers excellent balance and helps maintain drilling accuracy during repetitive production work and when working in restricted spaces.
• Q: Is the composite housing durable enough for industrial environments?
  A: Yes. The composite housing reduces weight while providing the durability needed for everyday industrial production and maintenance applications.

Looking for more information about Dotco Drill? Click here to view the Catalog

Need help selecting the correct Dotco Drills for your application? Please call (800) 608-5210 or email info@intlairtool.com
