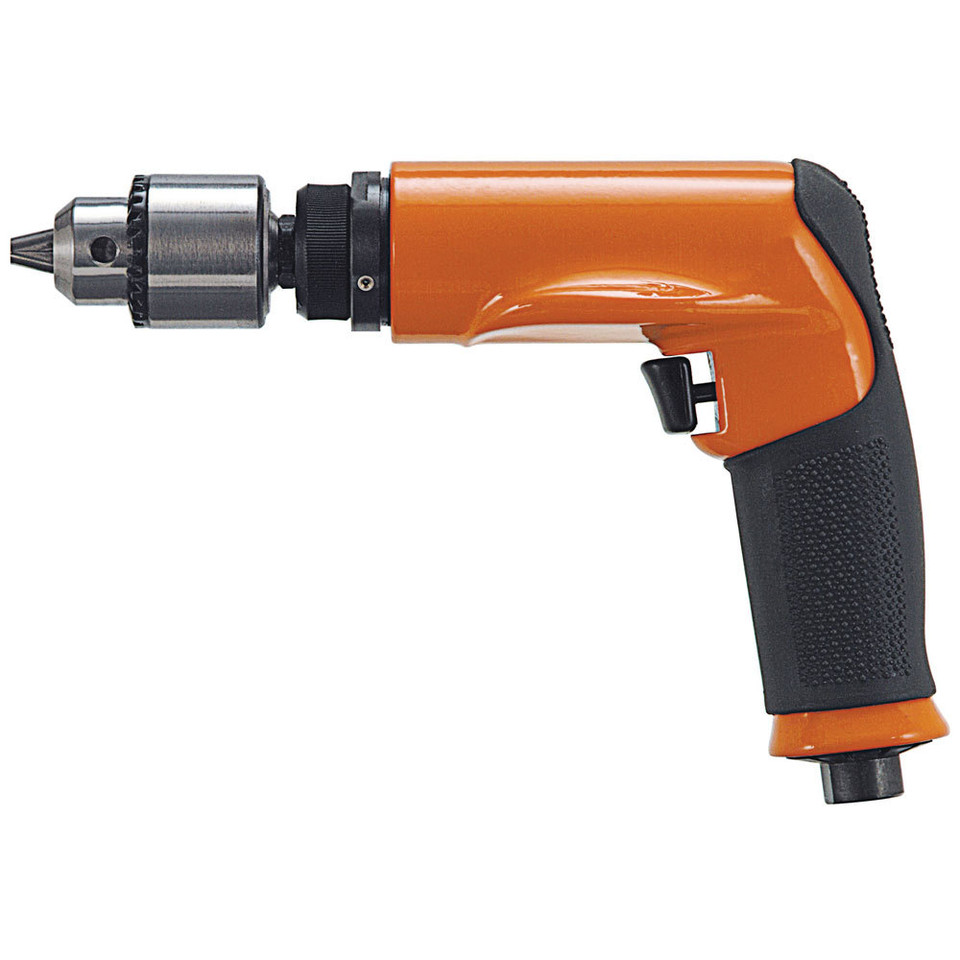

Built for precision drilling in production, maintenance, and metal fabrication environments, the Dotco 14CNL92-40 non-reversible pneumatic drill delivers dependable performance with a 0.9 HP motor, a 3,200 RPM free speed, and a rear exhaust configuration that helps direct exhaust air away from the operator and work surface. The compact design supports accurate drilling while providing the power needed for repetitive industrial drilling operations.
As part of the 14CNL Series, this pneumatic drill is well suited for manufacturing, aerospace, maintenance, and assembly applications where consistent speed and reliable air-powered performance are important. Its non-reversible configuration makes it an excellent choice for dedicated forward-drilling tasks while reducing unnecessary controls for streamlined operation.
Type: Pneumatic Drill | Series: 14CNL Series | Model: 14CNL92-40 | Power: 0.9 HP | Free Speed: 3,200 RPM | Operation: Non-Reversible | Exhaust: Rear Exhaust
Features:
- 0.9 HP pneumatic motor provides dependable power for continuous drilling operations.
- 3,200 RPM free speed supports efficient drilling in a variety of industrial materials.
- Non-reversible design simplifies operation for dedicated forward drilling applications.
- Rear exhaust directs discharged air away from the work area to improve visibility.
- Compact, lightweight construction promotes control during repetitive drilling tasks.
- Suitable for production environments requiring consistent pneumatic performance.
Made in USA:
Applications:
- Production drilling in manufacturing and industrial assembly operations.
- Aircraft and aerospace component fabrication where pneumatic tools are preferred.
- General plant maintenance and repair work.
- Metal fabrication, fixture preparation, and equipment assembly.
- Machine shops performing repetitive drilling operations.
FAQs:
- Q: What does non-reversible mean?
A: This drill operates in the forward direction only, making it suitable for dedicated drilling applications where reverse rotation is not required. - Q: What is the benefit of a rear exhaust?
A: Rear exhaust directs air away from the operator and workpiece, helping keep chips and debris away from the drilling area. - Q: Is this drill intended for continuous industrial use?
A: Yes. The 0.9 HP pneumatic motor and industrial design make it well suited for production, fabrication, and maintenance environments.
| SKU | Termination | Free Speed (rpm) | Exhaust | Weight Lb | Weight (kg) | Length in | Length (mm) |
|---|---|---|---|---|---|---|---|
| 14CNL90-40 | 3/8“ - 24 e | 20000 r/min | Rear | 2.2 | 1.00 kg | 6.8 | 173 mm |
| 14CNL91-40 | 3/8“ - 24 e | 5200 r/min | Rear | 2.43 | 1.10 kg | 7.2 | 183 mm |
| 14CNL92-40 | 3/8“ - 24 e | 3200 r/min | Rear | 2.43 | 1.10 kg | 7.2 | 183 mm |
| 14CNL95-40 | 3/8“ - 24 e | 1300 r/min | Rear | 2.87 | 1.30 kg | 8.6 | 218 mm |
| 14CNL97-40 | 3/8“ - 24 e | 500 r/min | Rear | 3.53 | 1.60 kg | 9.1 | 231 mm |
| 14CNL98-40 | 3/8“ - 24 e | 6000 r/min | Rear | 2.2 | 1.00 kg | 6.8 | 173 mm |
Looking for more information about Dotco Drill? Click here to view the Catalog
Need help selecting the correct Dotco Drills for your application? Please call (800) 608-5210 or email info@intlairtool.com
