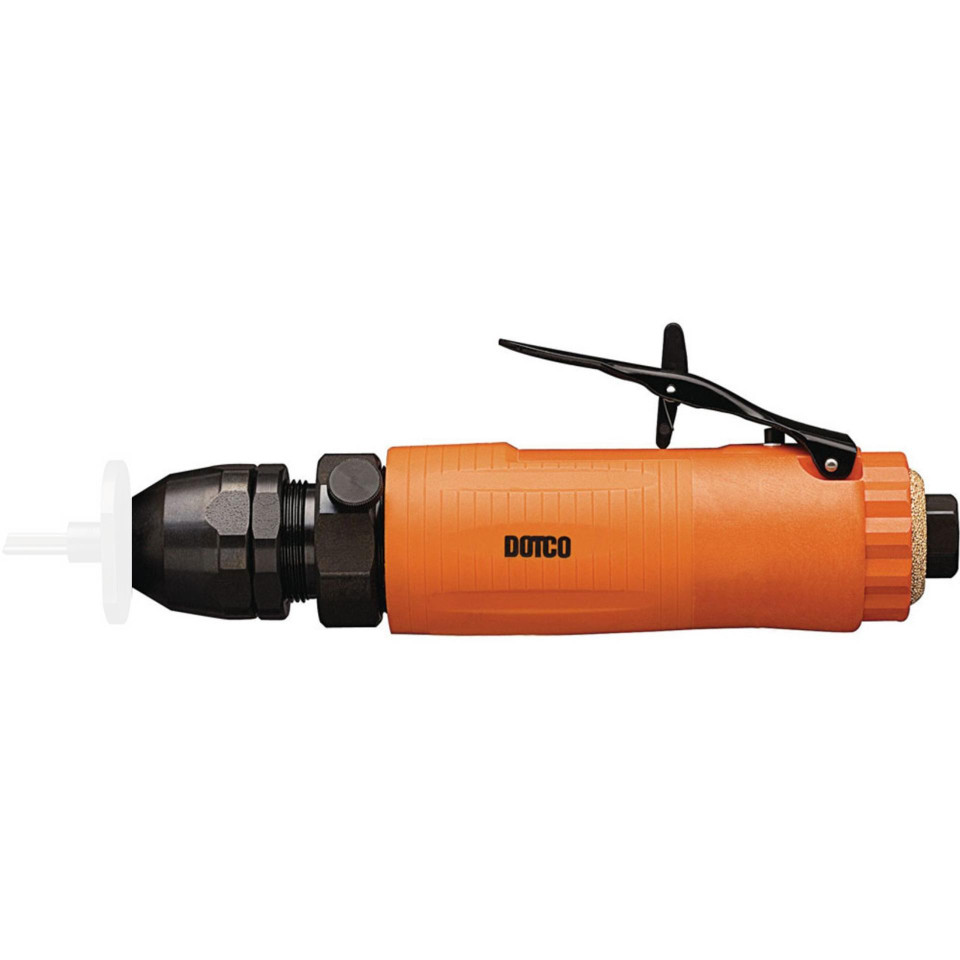

Dotco 12L2000-01RT Inline Router | 12-20 Series | 0.6 HP | 25,000 RPM | Composite Housing | Front Exhaust

Built for precision routing, composite trimming, and laminate edge finishing, the Dotco 12L2000-01RT Inline Router combines a dependable 0.6 HP pneumatic motor with a fast 25,000 RPM free speed to deliver clean, accurate cuts in lightweight materials. As part of the Dotco 12-20 Series, this router features a lightweight composite housing that helps reduce operator fatigue during repetitive production work, while its front exhaust directs airflow toward the nose of the tool to assist with clearing chips from the cutting area for improved visibility.

Its inline configuration provides excellent balance for template-guided routing and controlled edge trimming, while the 1/4" collet accepts a wide variety of compatible router bits. Whether used in aerospace composite fabrication, fiberglass finishing, plastics manufacturing, or general industrial production, this pneumatic router delivers the speed and maneuverability needed for consistent routing performance.

Type: Inline Router | Series: 12-20 Series | Power: 0.6 HP | Free Speed: 25,000 RPM | Housing: Composite | Exhaust: Front | Collet Capacity: 1/4" | Configuration: Inline

Features:

• 0.6 HP pneumatic motor provides reliable power for routing, trimming, and edge finishing applications.
• 25,000 RPM free speed delivers fast cutting performance for clean, accurate routing in composite and non-metallic materials.
• Front exhaust helps direct airflow toward the cutting area to assist with chip removal and visibility.
• Lightweight composite housing reduces overall tool weight for improved handling during extended use.
• Inline body design offers balanced control for template-guided routing and precision finishing.
• 1/4" collet accepts standard router bits commonly used for composite, fiberglass, and plastic fabrication.
• Governor-controlled motor helps maintain consistent operating speed under varying cutting loads.

Made in USA:

Note: Router Template Guide is not included; it is sold separately.

Applications:

• Routing and trimming composite components in aerospace manufacturing and repair facilities.
• Edge finishing of fiberglass panels, laminates, and reinforced plastic assemblies.
• Template-guided routing for fabricated parts and production fixtures.
• Precision trimming during industrial manufacturing and assembly operations.
• Maintenance and repair work requiring a compact, high-speed pneumatic router.

FAQs:

• Q: What advantage does the 25,000 RPM free speed provide?
  A: The higher free speed allows cleaner, faster routing in composites, fiberglass, plastics, and other lightweight materials when used with compatible router bits.
• Q: What size router bits can this tool use?
  A: The router is equipped with a 1/4-inch collet and accepts compatible 1/4-inch shank router bits.
• Q: Why choose a front exhaust router?
  A: The front exhaust directs airflow toward the nose of the tool, helping move chips away from the cutting path and improving visibility while routing.
• Q: Is this router suitable for continuous production work?
  A: Yes. Its lightweight composite housing, inline design, and governor-controlled pneumatic motor make it well suited for repetitive industrial routing applications.

Looking for more information about Dotco Router? Click here to view the Catalog

Need help selecting the correct Dotco Routers for your application? Please call (800) 608-5210 or email info@intlairtool.com
