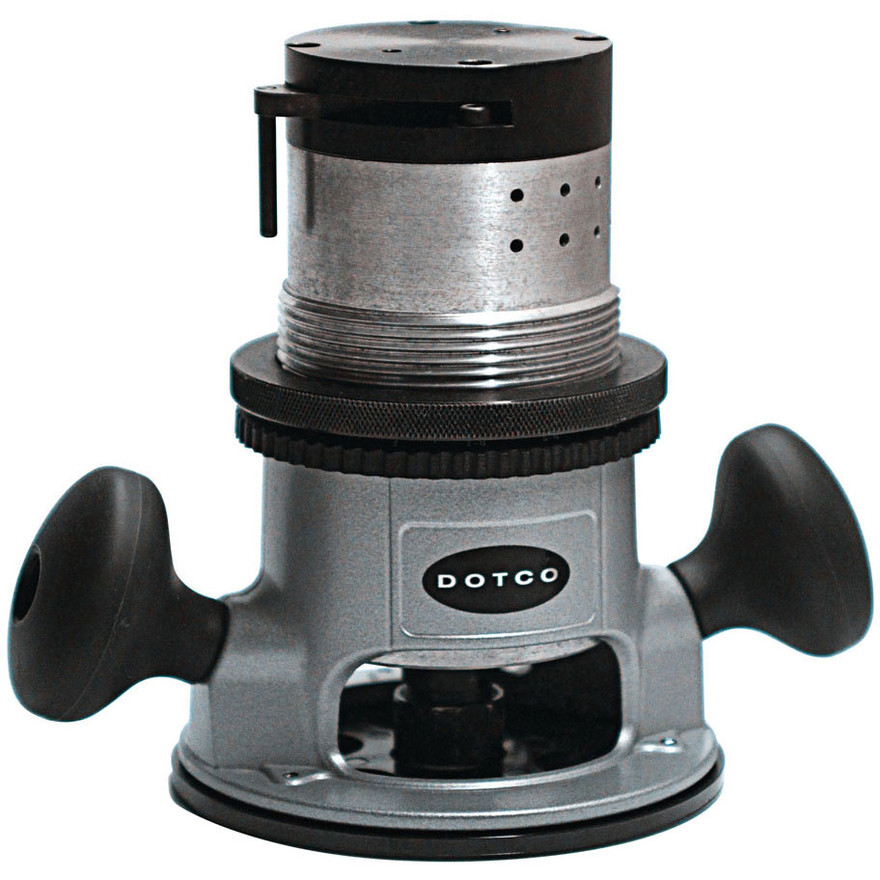

Dotco 10T4316-62 Base Mount Router | 10-43 Series | 1.7 HP | 16,000 RPM | 1/2" Shank Diameter Capacity | Aluminum Housing

Built for fixture-mounted routing, composite trimming, and production profile-cutting work, the Dotco 10T4316-62 Base Mount Router pairs a 1.7 HP pneumatic motor with a 16,000 RPM free speed for faster cutting action while maintaining controlled material removal. Its 1/2" shank diameter capacity accepts compatible larger-shank router bits, making it suitable for trimming composites, fiberglass, plastics, laminates, and similar materials when the bit is properly selected for the workpiece and tool speed. The aluminum housing provides a durable body for production routing setups.

Part of Dotco’s 10-43 Series, this base mount router is intended for guided or fixture-based applications where repeatable positioning matters. Compared with lower-speed models in the same router family, the 16,000 RPM speed is useful when the job calls for cleaner edge quality, efficient feed rates, or smaller-diameter 1/2" shank tooling in manufacturing and fabrication environments.

Type: Base Mount Router | Series: 10-43 Series | Power: 1.7 HP | Free Speed: 16,000 RPM | Shank Diameter Capacity: 1/2" | Housing: Aluminum

Features:

• 1.7 HP pneumatic motor supports controlled routing, trimming, and profile-cutting work.
• 16,000 RPM free speed helps produce efficient cuts and clean edge finishes with compatible tooling.
• 1/2" shank diameter capacity accepts larger-shank router bits for production routing applications.
• Base mount configuration supports fixture-mounted use, guided routing, and repeatable tool positioning.
• Aluminum housing provides a durable tool body for manufacturing and fabrication settings.
• Pneumatic operation fits compressed-air production environments where electric motor heat and duty cycle may be concerns.

Made in USA:

Applications:

• Fixture-mounted composite trimming in aerospace and transportation manufacturing.
• Fiberglass panel routing, reinforced plastic trimming, and laminate edge finishing.
• Production profile cutting using compatible 1/2" shank router bits.
• Guided routing stations where consistent tool positioning and repeatable feed control are required.
• Plastic fabrication and industrial component finishing in compressed-air work cells.

FAQs:

• Q: What is the Dotco 10T4316-62 used for?
  A: It is used for mounted or guided routing, trimming, and profile-cutting work on composites, fiberglass, plastics, laminates, and similar materials when paired with the proper 1/2" shank cutting bit.
• Q: What does base mount mean on this router?
  A: Base mount means the router is intended to be installed into a fixture, jig, or guided setup rather than used only as a freehand trim tool. This helps improve repeatability in production routing operations.
• Q: Why choose the 16,000 RPM model?
  A: The 16,000 RPM speed provides faster cutting action than lower-speed models while still supporting controlled routing with compatible tooling and feed rates.
• Q: Can I use any 1/2" shank router bit?
  A: Use only compatible 1/2" shank router bits rated for the tool’s operating speed and suitable for the material being cut. Always confirm accessory RPM rating before use.

Looking for more information about Dotco Router? Click here to view the Catalog.

Need help selecting the correct Dotco Routers for your application? Please call (800) 608-5210 or email info@intlairtool.com
