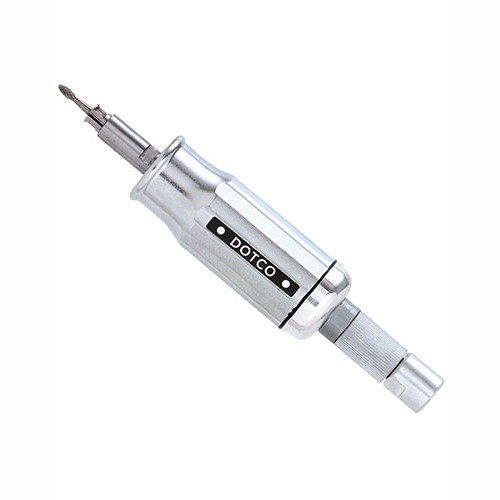

Dotco 10R9000-03 Precision Turbine Grinder | 10-90 Series | 0.06 HP | 100000 RPM | 3 mm Collet | Steel Housing | Front Exhaust

When fine deburring, small-feature blending, or precision material removal calls for very high spindle speed, the Dotco 10R9000-03 Precision Turbine Grinder gives operators a compact inline tool built for controlled work with carbide burrs and diamond pins. Its 100,000 RPM free speed helps produce a clean finish on small parts and tight details, while the 3 mm collet supports metric-shank accessories commonly used in mold, die, aerospace, and precision fabrication work. The 0.06 HP turbine motor provides light, high-speed stock removal rather than heavy grinding force, making this tool best suited to controlled finishing, edge cleanup, and detail deburring.

This 10-90 Series turbine grinder uses a roll throttle (a rotating sleeve-style control for gradual speed management) with front exhaust, directing air away from the operator’s hand and toward the work area. High precision ball bearings and a precision spindle help maintain smooth operation at high speed, while the lightweight steel housing gives the tool a durable feel without adding unnecessary bulk.

Type: Precision Turbine Grinder | Series: 10-90 Series | Model: 10R9000-03 | Power: 0.06 HP / 0.044 kW | Free Speed: 100,000 RPM | Collet Size: 3 mm | Exhaust: Front | Abrasive Capacity: 3/16" Carbide Burr, 3/16" Diamond Pin | Housing: Steel | Weight: 0.441 lb | Length: 5.4" | Air Inlet: 1/8"

Features:

• Two-stage turbine motor delivers very high spindle speed for fine finishing, deburring, and light material removal.
• Roll throttle allows controlled start-up and speed modulation during detail work.
• Front exhaust directs air forward through the tool configuration for a clean inline operating layout.
• High precision ball bearings help support smooth rotation and consistent finish quality.
• Precision spindle helps the tool achieve a fine surface finish when paired with properly rated accessories.
• Lightweight steel housing balances durability with compact handling for small-part and close-control work.
• Requires no air line lubrication; use dry air at 90 PSI maximum as specified for turbine grinders.
• Standard equipment includes applicable collet, collet wrenches, 7 ft. / 2.1 m air supply hose, and replaceable cartridge hose filter.

Made in USA:

Applications:

• Precision deburring — removing small burrs from machined parts, drilled holes, edges, and intricate profiles.
• Tool, die, and mold work — refining details with small carbide burrs or diamond pins where a larger die grinder would be difficult to control.
• Aerospace and composite shops — light finishing, edge cleanup, and detailed material removal on precision components when the accessory is approved for the material.
• Metalworking and fabrication benches — cleaning tight corners, small weld details, and fine features after machining or assembly.
• Maintenance and repair work — correcting small surface imperfections and preparing detailed areas before inspection, coating, or reassembly.

FAQs:

• Q: What accessories fit the Dotco 10R9000-03?
  A: This model uses a 3 mm collet and is rated for 3/16" carbide burrs and 3/16" diamond pins. Always confirm the accessory shank size and maximum RPM rating before use.
• Q: Can this turbine grinder be lubricated like a standard air tool?
  A: No. Turbine grinders should be supplied with dry air at 90 PSI maximum and should not be lubricated, because oil can reduce turbine performance and tool life.
• Q: Is 100,000 RPM suitable for heavy grinding?
  A: No. This is a precision high-speed grinder for light material removal, fine finishing, and detail deburring. For heavier stock removal, a larger die grinder or wheel grinder with the correct abrasive capacity is usually more appropriate.
• Q: What does front exhaust mean on this tool?
  A: Front exhaust means air exits toward the front of the grinder rather than through the rear of the handle. This layout is common on compact precision grinders and should be considered when working around dust, chips, or delicate surfaces.
• Q: Should a quick-disconnect fitting be installed directly on the tool?
  A: No. Cleco cautions not to attach a quick-disconnect fitting directly to the tool. Use the supplied air hose arrangement and follow the manufacturer’s operating instructions.
