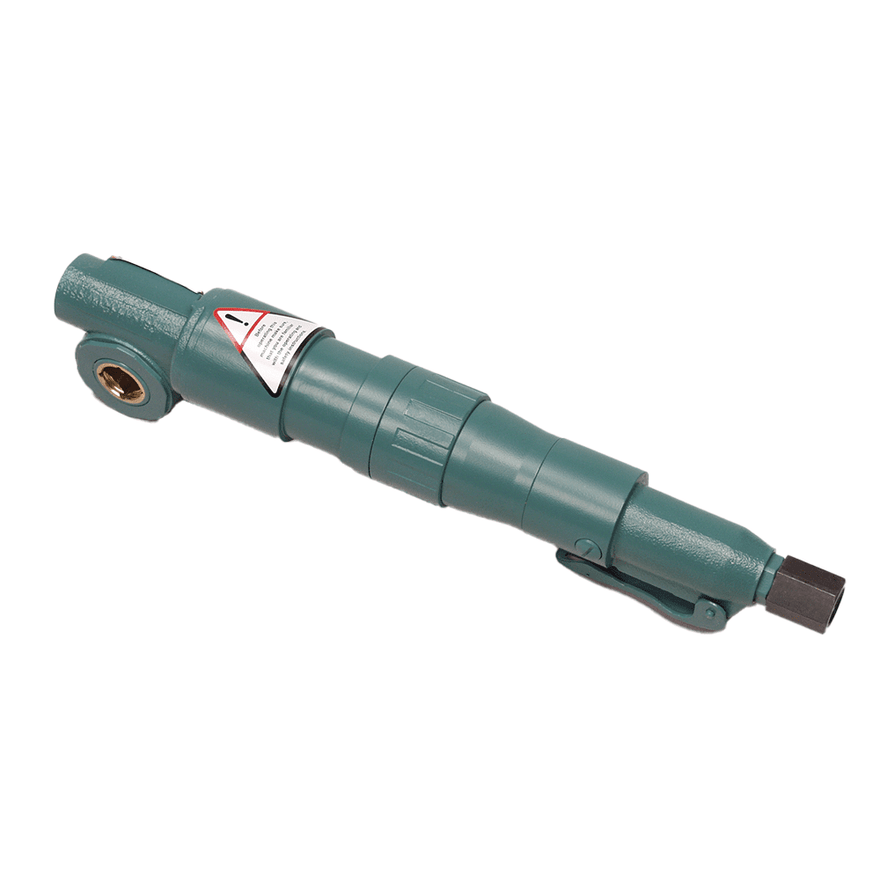

When controlled high-torque fastening needs to fit into tight spaces, the CS Unitec 6 1057 0099 Pneumatic Nutrunner delivers 73.5 ft-lbs of stall torque through a 1/2" male square drive for bolt installation and removal on machinery, assemblies, and maintenance work. Its 250 RPM free speed supports faster rundown before final torque, while the 125 RPM load speed reflects working speed under resistance. The 0.85 HP pneumatic motor and compact angle head help crews work where larger fastening tools may not have enough clearance.
Type: Pneumatic Nutrunner | Model: 6 1057 0099 | Drive Size: 1/2" M Square Drive | Stall Torque: 73.5 ft-lbs | Free Speed: 250 RPM | Load Speed: 125 RPM | Power: 0.85 HP | Oil Flow: 46 GPM | Side-to-Center Distance: 1" | Length: 21" | Weight: 11 lbs | Air Connection: 3/8" NPT | Hose Size: 1/2"
Features:
- Worm gear drive provides high torque output for controlled nut and bolt fastening.

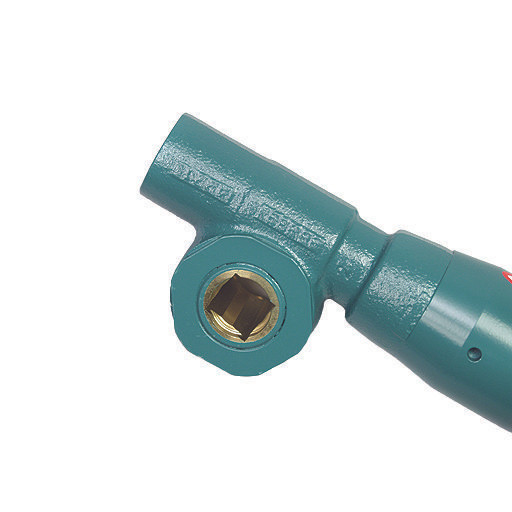

- Compact angle head improves access around frames, housings, machinery guards, and other obstructions.
- Reversible operation supports both fastening and loosening tasks with the same tool.
- 1/2" male square drive connects directly with compatible impact-rated sockets and drive accessories.
- 250 RPM free speed helps reduce rundown time on repetitive assembly and maintenance jobs.
- 11 lb tool weight gives the nutrunner a manageable balance for field service and plant use.
Applications:
- Industrial maintenance and MRO fastening on machinery, brackets, covers, and bolted assemblies.
- Equipment repair work where an angle-head nutrunner helps reach bolts in recessed or obstructed areas.
- Fabrication and assembly stations requiring controlled pneumatic rundown on medium-torque fasteners.
- Fleet, plant, and shop service tasks where repeatable nut and bolt installation is preferred over manual wrenching.
FAQs:
- Q: What does stall torque mean on this nutrunner?
A: Stall torque is the torque produced when the tool stops under load. For this model, the listed stall torque is 73.5 ft-lbs. - Q: Is this a 1/2" drive tool?
A: Yes. This model uses a 1/2" male square drive for compatible sockets and drive accessories. - Q: What is the benefit of the angle-head configuration?
A: The compact angle head helps the tool reach fasteners near obstructions where straight or pistol-style tools may not fit. - Q: Can this nutrunner loosen bolts as well as tighten them?
A: Yes. The tool is reversible, so it can be used for both fastening and loosening applications within its torque capacity.
Available Variations and Specifications
| SKU | Square Drive F=Female M=Male |
Stall Torque at 90 PSI (ft-lbs.) |
Free Speed (RPM) |
Load Speed (RPM) |
Power (HP) | CFM at 90 PSI | Side to Center Distance |
Length | Weight (lbs.) | Air Connection | Hose ID |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 1014 0075* | 3/4" M | 95 | 200 | 100 | 0.9 | 46 | 1" | 22" | 11 | 3/8" NPT | 1/2" |
| 6 1014 0099 | 1/2" M | 95 | 200 | 100 | 0.9 | 46 | 1" | 22" | 11 | 3/8" NPT | 1/2" |
| 6 1055 0075* | 3/4" M | 405 | 40 | 22 | 0.9 | 46 | 1" | 21" | 10 | 3/8" NPT | 1/2" |
| 6 1055 0099 | 1/2" M | 405 | 40 | 22 | 0.9 | 46 | 1" | 21" | 10 | 3/8" NPT | 1/2" |
| 6 1056 0075* | 3/4" M | 133 | 120 | 67 | 0.9 | 46 | 1" | 21" | 11 | 3/8" NPT | 1/2" |
| 6 1056 0099 | 1/2" M | 133 | 120 | 67 | 0.9 | 46 | 1" | 21" | 11 | 3/8" NPT | 1/2" |
| 6 1057 0075* | 3/4" M | 73.5 | 250 | 125 | 0.9 | 46 | 1" | 21" | 11 | 3/8" NPT | 1/2" |
| 6 1057 0099 | 1/2" M | 73.5 | 250 | 125 | 0.9 | 46 | 1" | 21" | 11 | 3/8" NPT | 1/2" |
| 6 1061 0010 | 7/8" F | 405 | 40 | 22 | 0.9 | 46 | 1" | 21" | 11 | 3/8" NPT | 1/2" |
Looking for more information about the CS Unitec Pneumatic Nutrunner? Click here to view the Catalog
For help choosing the correct CS Unitec Pneumatic Nutrunners, please call (800) 608-5210 or email info@intlairtool.com
